VIVI H6 User Manual

E-bike
Hide thumbs Also See for H6:
Table of Contents

Advertisement

Available languages
  • EN

Available languages

  • ENGLISH, page 1

Quick Links

American
VIVI
E-bike User's Manual
CAUTION: READ THIS MANUAL BEFORE USING YOUR EQUIPMENT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for VIVI H6

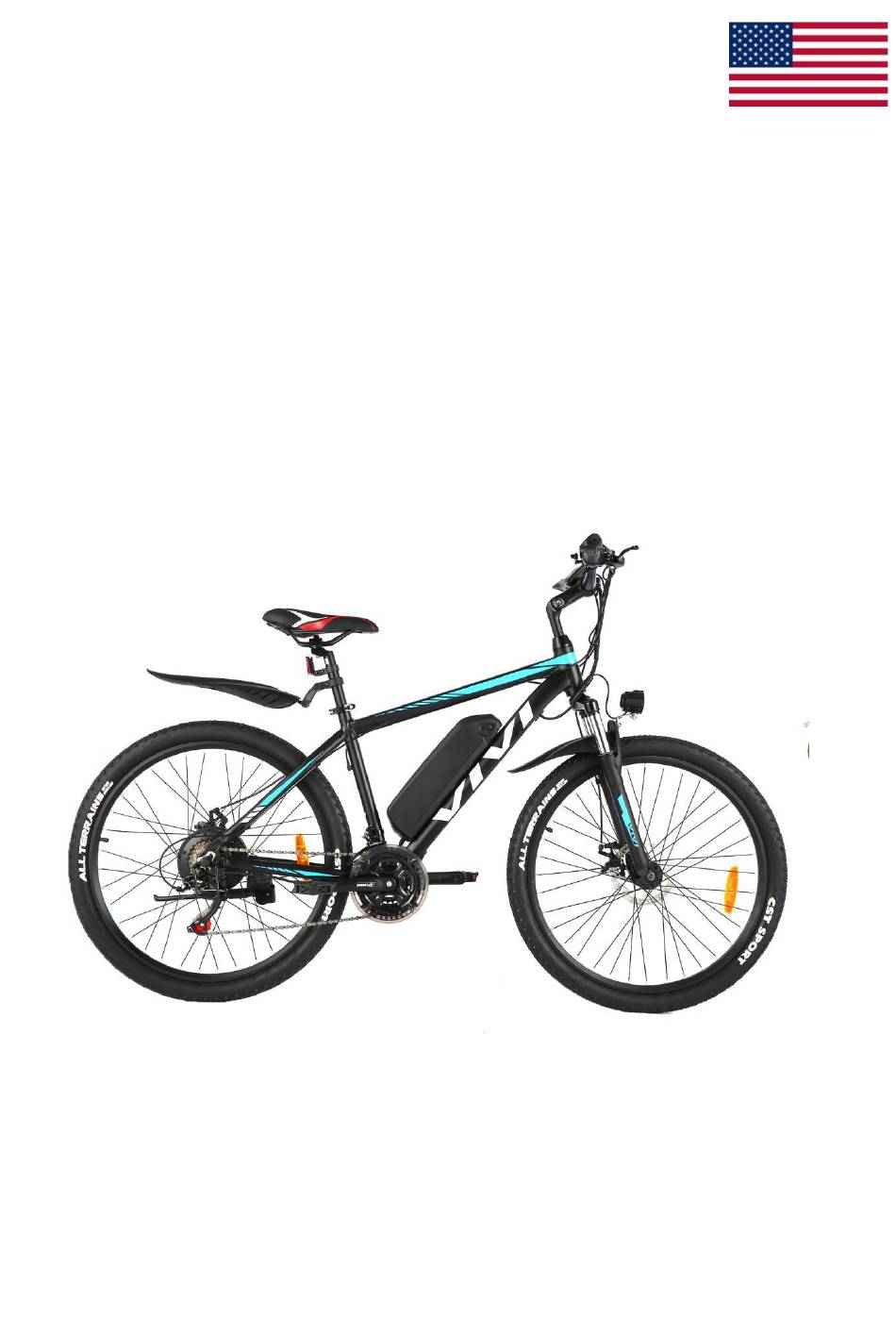

  • Page 1 American VIVI E-bike User’s Manual CAUTION: READ THIS MANUAL BEFORE USING YOUR EQUIPMENT...
  • Page 2: Table Of Contents

    CONTANTS Safety instruction------------------------------------------------------------------Page 1 Technical configuration parameters------------------------------------------------------Page 1 Meter operation-------------------------------------------------------------------Page 2-3 Battery:Further information and maintenance-----------------------------------Page 4 About Charging---------------------------------------------------------------------------Page 4 Installation Instruction----------------------------------------------------------Page5-10...
  • Page 3: Safety Instruction

    __________________ 1. Safety Instruction 1.Thank you for purchasing the VIVI E-BIKE. The E-BIKE features the most recent innovation in technology. 2.For safety reasons, please read the user’s manual carefully before using th e e-bike. Improper operation will reduce its driving performance, and more im portantly, cause danger to your safety and health.
  • Page 4: Meter Operation

    3. Meter operation 3.1 Meter instruction...
  • Page 5 3.2 Meter operation Operating instructions Hold the Press “+” Foot riding Press “+” to Press the "+" button again to move (without button for 2 crease into into pedal pedal 2s to switch seconds pedal assist assist level assistant on/off the during “High”.
  • Page 6: Battery:further Information And Maintenance

    repeat the above 1.2. operation. 3.4 Operation Cautions Be careful of the safety use. Don’t attempt to release the connector when charging the battery. ● Avoid the risk of collision. ● Don’t modify system parameters to avoid parameters disorder. ● Make the display repaired when error code appears. 4.
  • Page 7: Installation Instruction

    1. When charging the e-bike battery, simply place the bike within reach of the power supply, connect the charge’s plug to the charging base on the battery, and then plug in the charger’s power plug to charge. 2. The battery can be installed on the bike for charging, or can be removed and placed in a convenient place for charging.
  • Page 8 4.Front wheel installation: 4.1 Cut the wrapping rope, remove the front wheel, remove the front fork protection lever and the front wheel protection cover. 4.2 Make sure that the front wheel is in line with the rear wheel, then start installation.
  • Page 9 6.Saddle installation 6.1 Open the package and take out the saddle and seat post, then install the rear reflector on the seat post 6.2 Insert the seat post into the frame. 6.3 Adjust the seat post to the height that best suits your riding position, and tighten the quick release.
  • Page 10 8.3 Find the battery power switch (black color), press it up, the power is turned on, and the battery installation is completed. 9.Tire inflation instruction: 9.1 After the bicycle is assembled, please check whether the air pressure of the front and rear tires is within the normal value. 9.2 When refilling tires, you must refer to the inflation reference range on the side of the tire for refilling, generally between 35PSI---65PSI (280Kpa--450Kpa).
  • Page 11 reduce the pedaling strength of riding. So as to realize the different speed of the front derailleur. 10.2 When you shift forward the right derailleur handle, the back derailleur will move inside, at the same time, move the chain from the small part of the rear flywheel to the large part.
  • Page 12 More VIVI electric bike’s installation and repair instructions Any question about the item, please contact. Detail Packing List Description Quantity E-Bike Tools (13-15 spanner, 9-11 spanner, 8-10 spanner,14-17 spanner, eleven-shaped screwdriver, M6, M5, M4, M3 Allen wrench) Manual Charger rear reflector...
  • Page 13 English VIVI E-bike User’s Manual CAUTION: READ THIS MANUAL BEFORE USING YOUR EQUIPMENT...
  • Page 14 CONTANTS Safety instruction------------------------------------------------------------------Page 1 Technical configuration parameters------------------------------------------------------Page 1 Meter operation-------------------------------------------------------------------Page 2-3 Battery:Further information and maintenance-----------------------------------Page 4 About Charging---------------------------------------------------------------------------Page 4 Installation Instruction----------------------------------------------------------Page5-10...
  • Page 15: Safety Instruction

    __________________ 1. Safety Instruction 1.Thank you for purchasing the VIVI E-BIKE. The E-BIKE features the most recent innovation in technology. 2.For safety reasons, please read the user’s manual carefully before using th e e-bike. Improper operation will reduce its driving performance, and more im portantly, cause danger to your safety and health.
  • Page 16: Meter Operation

    3. Meter operation 3.1 Meter instruction...
  • Page 17 3.2 Meter operation Operating instructions Hold the Press “+” Foot riding Press “+” to Press the "+" button again to move (without button for 2 crease into into pedal pedal 2s to switch seconds pedal assist assist level assistant on/off the during “High”.
  • Page 18: Battery:further Information And Maintenance

    3.4 Operation Cautions Be careful of the safety use. Don’t attempt to release the connector when charging the battery. ● Avoid the risk of collision. ● Don’t modify system parameters to avoid parameters disorder. ● Make the display repaired when error code appears. 4.
  • Page 19: Installation Instruction

    1. When charging the e-bike battery, simply place the bike within reach of the power supply, connect the charge’s plug to the charging base on the battery, and then plug in the charger’s power plug to charge. 2. The battery can be installed on the bike for charging, or can be removed and placed in a convenient place for charging.
  • Page 20 4.Front wheel installation: 4.1 Cut the wrapping rope, remove the front wheel, remove the front fork protection lever and the front wheel protection cover. 4.2 Make sure that the front wheel is in line with the rear wheel, then start installation.
  • Page 21 6.Saddle installation 6.1 Open the package and take out the saddle and seat post, then install the rear reflector on the seat post 6.2 Insert the seat post into the frame. 6.3 Adjust the seat post to the height that best suits your riding position, and tighten the quick release.
  • Page 22 9. Derailleur level installation: 9.1 First remove the pre-installed handle grip cover on the handlebar. 9.2 Take out the derailleur level from the small box, first put the speed control handle in form the right side of the handlebar, then put the sheath, then put the short handle cover, and knock the handle in place with a rubber hammer.
  • Page 23 11.Instructions for using Front derailleur: 11.1 When you shift forward the left derailleur handle, the front derailleur will move outward, at the same time, move the chain from the small part of the chain ring to the large part. These steps will increase the riding speed while riding, also will increase the pedaling strength of riding.
  • Page 24 More VIVI electric bike’s installation and repair instructions Any question about the item, please contact. Detail Packing List Description Quantity E-Bike Tools (13-15 spanner, 9-11 spanner, 8-10 spanner,14-17 spanner, eleven-shaped screwdriver, M6, M5, M4, M3 Allen wrench) Manual Charger rear reflector...
  • Page 25 German VIVI Die Bedienungsanleitung von Die Warnung: bitte lesen Sie das Handbuch sorgfältig durch, bevor Sie das Elektrofahrrad benutzen.
  • Page 26 Das Verzeichnis Die Sicherheitanleitung-----------------------------------------------------------Seite 1 Die technische Konfigurationsparameter---------------------------------------Seite 1 Die Gerätebedienungsanleitung------------------------------------------------Seite 2-3 Die Batterieinformationen und Wartung-----------------------------------------Seite 4 Die Lademethode-----------------------------------------------------------------Seite 5 Die Einbauanleitung--------------------------------------------------------Seite 5-10...
  • Page 27: Die Sicherheitanleitung

    __________________ 1. Die Sicherheitanleitung 1. Vielen Dank für Ihre Verwendung von VIVI Elektrofahrrad. Dieses Elektrofahrrad verwendet innovative Technologie in der Handwerkskunst. 2. Bitte lesen Sie aus Sicherheitsgründen die Bedienungsanleitung sorgfältig durch, bevor Sie das Elektrofahrrad benutzen. Die unsachgemäße Behandlung verringert die Fahrleistung und gefährdet vor allem Ihre Sicherheit und Gesundheit.
  • Page 28: Die Gerätebedienungsanleitung

    3. Die Gerätebedienungsanleitung 3.1Die Instrumentenparameter...
  • Page 29 3.2 Die Instrumentenparameter Die Bedienungsanleitung 5.Drücken 1.1Um das 4.das Sie im Elektrofahrr Drücken Fahrmod Einschaltstat Drücken adsystem Sie weiter us: ohne us 2 Sie „+“, „+“, um die ein- oder elektrisch Sekunden Geschwind auszuschalt um die lang die igkeit auf en, halten Geschwin Unterstüt...
  • Page 30: Die Batterieinformationen Und Wartung

    3.3 Das Methode von der Geschwindigkeitaufhebung 1. Schalten Sie zuerst das Elektrofahrrad ein und stellen Sie den Gang auf die Hochgeschwindigkeitsgang ein. 2. Drücken Sie gleichzeitig die Tasten „+“ „-“ und drücken Sie 3 bis 5 Sekunden lang. Dann wird das Tempolimit aufgehoben. 3.Wenn Sie die Werkskonfiguration wiederherstellen möchten, nachdem das Tempolimit aufgehoben wurde, wiederholen Sie den oben beschriebenen ersten und zweiten Vorgang.
  • Page 31: Die Lademethode

    chemische Verätzungen und verwenden Sie die beschädigte Batterie sofort nicht mehr. 4.4. Berühren Sie den Akkumulator nicht ohne Tuch oder Handschuhe und achten Sie darauf, dass die Säure Ihre Augen nicht berührt. 5.Die Lademethode 1. Wenn die Elektrofahrradbatterie aufgeladen werden muss, stellen Sie das Fahrrad einfach an einen Ort, an den die Stromquelle gelangen kann.
  • Page 32 3. Die Installation von der Scheinwerfer 3.1 Lösen Sie die Scheinwerferschraube von der Vordergabel; Das Frontlicht in das Loch der Vorderradgabelschraube einbauen und die Schraube mit einem Inbuswerkzeug festziehen. 4.Die Installation vom Vorderrad: 4.1: Schneiden Sie das Wickelseil ab und bauen Sie das Vorderrad aus. Dann entfernen Sie den Vorderradgabelschutzhebel und die Vorderradschutzabdeckung.
  • Page 33 5.Die Installation vom Pedal: Überprüfen Sie die beiden Pedale. Das Pedal mit „L“ am Ende des Dorns sollte auf der linken Seite des Fahrzeugs (ohne Zahnscheibe) installiert und gegen den Uhrzeigersinn gedreht werden. Das Pedal mit „R“ ist auf der rechten Seite installiert (mit Zahnscheibe), wird im Uhrzeigersinn gedreht, und dann den Pedaldorn mit einem Nr.
  • Page 34 7.Stellen Sie die Bremse, das Armaturenbrett und Geschwindigkeitsänderungsystem ein, und ziehen Sie sie dann mit Werkzeugen fest. 8. Die Installation vom Akkumulator: 8.1 Nehmen Sie zuerst den Akkumulator aus der Verpackung. 8.2 Installieren Sie die Batterie am Batterieclip am Elektrofahrrad; 8.3 Suchen Sie den Batterieschalter (schwarz), drücken Sie ihn nach links, die Stromversorgung wird eingeschaltet und die Batterieinstallation ist abgeschlossen.
  • Page 35 Schutzhülle. Dann setzen Sie die kurze Lenkerhülle auf und klopfen Sie die Lenkerhülle mit einem Gummihammer fest. 9.3 Setzen Sie die lange Lenkerhülle des Geschwindigkeitsregelungsgriffs auf die linke Seite des Fahrradlenkers und klopfen Sie die Lenkerhülle mit einem Gummihammer fest. 9.4 Verbinden Sie zuerst den Netzkabelstecker des Geschwindigkeitsregelungsgriffs mit dem Hauptleitungsanschluss, bringen Sie dann den Geschwindigkeitsregelungsgriff in eine geeignete Position und...
  • Page 36 bewegt sich der Umwerfer von außen nach innen. Gleichzeitig bewegt sich die Kette vom großen Stück der Zahnscheibe in die kleine Position. Da wird die Fahrgeschwindigkeit reduziert und die Tretkraft des Fahrens wird verringert, um den Geschwindigkeitsänderungsprozess des Umwerfers zu realisieren.
  • Page 37 Für weitere Anweisungen zur Installation und Wartung von VIVI Elektrofahrrad oder bei eventuellen Fragen wenden Sie sich bitte an. Die Verpackungsdetails Beschreibung Zahl das Elektrofahrrad die Werkzeuge ( Nr. 13-15 Schraubenschlüssel, Nr 9-11, Nr. 8-10 Schraubenschlüssel,Nr 14-17 Schraubenschlüssel, Elf-Wort-Schraubendreher, M6-、 M5-、 M4-、...
  • Page 38 French VIVI Manuel d’Utilisation du Vélo Electrique Avertissement: veuillez lire attentivement le manuel avant d'utiliser ce vélo électrique.
  • Page 39 Table des Matières Consignes de Sécurité ---------------------------------------------------------------Page 1 Paramètres de Configuration Technique-----------------------------------------Page 1 Instructions d'Utilisation de l'Instrument --------------------------------------Page 2-3 Informations Relatives à la Batterie et l’Entretien -----------------------------Page 4 Méthode de Charge -------------------------------------------------------------------Page 5 Notice d'Installation----------------------------------------------------------------Page 5-10...
  • Page 40 __________________ 1. Consignes de Sécurité 1. Merci d'utiliser le vélo électrique VIVI. Les vélos électriques utilisent une technologie innovante dans l'artisanat. 2. Pour des raisons de sécurité, veuillez lire attentivement le manuel d'utilisation avant d'utiliser ce vélo électrique. Une mauvaise manipulation réduira ses performances de conduite, et plus important , mettra en danger...
  • Page 41 3.Instructions d'Opération du Compteur 3.1Paramètres du Compteur...
  • Page 42 3.2 Instructions d’Opération du Compteur Instructions d’Opération Pour Continuez à Mode Appuyez sur Appuyez sur le allumer/étein appuyer sur « conduite bouton « + » « + » pour + » pour dre le système sans pendant 2 augmenter la augmenter la du vélo assistance...
  • Page 43 vitesse annulée, répétez les étapes d’opération 1 et 2 ci-dessus. 3.4 Précautions d'Utilisation Faites attention à une utilisation sûre. N'essayez pas de desserrer le connecteur lors de la connexion à la batterie. ● Évitez les risques de collision. ● Ne modifiez pas les paramètres système pour éviter toute confusion ●...
  • Page 44 1. Lorsque la batterie du vélo électrique doit être chargée, placez simplement le vélo dans un endroit où la source d'alimentation est disponible, connectez d'abord la fiche de charge du chargeur à la base de charge de la batterie, puis branchez la fiche d'alimentation du chargeur pour charger.
  • Page 45 3. Installation du Phare 3.1 Desserrez la vis du phare de la fourche avant; installez le phare dans le trou de vis de la fourche avant et serrez la vis avec un outil hexagonal interne. 4. Installation de la Roue Avant: 4.1: Coupez la corde d'emballage, retirez la roue avant, retirez le levier de protection de la fourche avant et le couvercle de protection de la roue avant.
  • Page 46 6. Installation de Selle 6.1 Ouvrez l'emballage et retirez la selle et la tige de selle, puis installez le réflecteur arrière sur la tige de selle. 6.2 Insérez la tige de selle dans le cadre. 6.3 Ajustez la position du siège à la hauteur qui convient le mieux à votre position de conduite et serrez le blocage rapide (veuillez vous assurer que le blocage rapide est verrouillé).
  • Page 47 9.1 Retirez d'abord le couvre-guidon pré-installé sur le guidon, 9.2 Sortez la poignée de contrôle de vitesse de la boîte de petit emballage, insérez d'abord la poignée de contrôle de vitesse par le côté droit du guidon, puis mettez la gaine, puis mettez le couvercle de la poignée courte et frappez la poignée en place avec un marteau en caoutchouc;...
  • Page 48 11.Instructions sur l'Utilisation de le Levier de Changement de Vitesse 11.1 Lorsque le levier de vitesses gauche est déplacé vers l'avant, le dérailleur avant se déplacera vers l'extérieur et la chaîne passera de la petite partie du plateau à la grande partie en même temps. À ce stade, la vitesse de conduite pendant la conduite sera augmentée et la force de pédalage de la conduite augmentera en même temps lorsque le levier est inversé...
  • Page 49 Pour plus d'informations sur l'installation et la maintenance des vélos électriques VIVI, et si vous avez des questions sur ce produit, n'hésitez pas à nous contacter. Liste de Colisage Description Quantité Vélo Electrique Outils(Clé 13-15, 8-10,clé 9-11, 14-17, tournevis onze, clé Allen M6, M5, M4, M3) Manuel d’Utilisation...
  • Page 50 Italian VIVI Manuale della bici elettrica ATTENZIONE:LEGGERE ATTENTAMENTE QUESTO MANUALE PRIMA DI UTILIZZARE L'ATTREZZATURA...
  • Page 51 Contenuti Istruzioni di sicurezza------------------------------------------------------------------Page 1 Parametri di configurazioni tecnica------------------------------------------------------Page 1 Parametri di configurazioni tecnica-----------------------------------------------------Page2- 3 Batteria: Ulteriori informazioni e manutenzioni-----------------------------------Page 4 Ricarica------------------------------------------------------------------------Page 4-5 Istruzioni per l'installazione----------------------------------------------------------Page5-10...
  • Page 52: Istruzioni Di Sicurezza

    __________________ 1. Istruzioni per sicurezza 1.Grazie per aver scelto e acquistato VIVI E-Bike. La bici elettrica presenta la più recente innovazione avanzata nella tecnologia. 2.Si prega di leggere attentamente le istruzioni prima di utilizzare la bici elettrica per motivi di sicurezza. Un funzionamento improprio ridurrà le sue prestazioni di guida e, cosa più...
  • Page 53 3. Funzionamento del misuratore 3.1Istruzioni del misuratore...
  • Page 54 3.2 Funzionamento dello strumento Istruzioni per l'uso Tenere Premere di Pedalata Premere il Premere "+" premuto il nuovo "+" per (senza pulsante "+" per passare passare al pulsante per 2 assistente di per 2 secondi al livello di livello di secondi per pedalata ed durante lo...
  • Page 55: Batteria: Ulteriori Informazioni E Manutenzioni

    3.3 Istruzioni per la soluzione del misuratore: 1. Accendere prima la macchina e regolare la marcia sulla marcia ad alta velocità; 2. Premere contemporaneamente i pulsanti "+" "-". Premere a lungo per 3 secondi a 5 secondi, questo è il limite di velocità verrà sollevato; 3.
  • Page 56: Ricarica

    Attenzione alle ustioni chimiche! E smetti immediatamente di usare una batteria danneggiata. 4.4Non toccare la batteria senza un panno o guanti e assicurarsi che l'acido non tocchi gli occhi. 5.Ricarica 1.Per caricare la batteria con la bicicletta, è sufficiente posizionare la bicicletta alla portata dell'alimentatore e collegarla.
  • Page 57 3. Installazione del faro 3.1 Allentare la vite della luce anteriore della forcella anteriore; Installare il faro nel foro della vite nella forcella anteriore e serrare la vite con uno strumento esagonale interno. 4. Installazione della ruota anteriore: 4.1: Tagliare la fune di avvolgimento, rimuovere la ruota anteriore, rimuovere la leva di protezione della forcella anteriore e il coperchio di protezione della ruota anteriore.
  • Page 58 6.Installazione della sella. 6.1 Aprire la confezione ed estrarre il cuscino e il reggisella e installare il catadiottro posteriore sul reggisella. 6.2 Inserire il reggisella nel telaio. 6.3 Regolare la posizione del sedile all'altezza che meglio si adatta alla propria posizione di guida e serrare lo sgancio rapido (assicurarsi che lo sgancio rapido sia bloccato).
  • Page 59 8.3 Trovare l'interruttore della batteria (nero) e premerlo verso l'alto. Dopo averlo acceso, l'alimentazione si accende e l'installazione della batteria sara’ completa. 9. Istruzioni per l'installazione della manopola di controllo della velocità 9.1 Rimuovere prima il coprimanubrio preinstallato sul manubrio, 9.2 Estrarre la manopola di controllo della velocità...
  • Page 60 10. Istruzioni per il gonfiaggio dei pneumatici. 10.1 Controllare se la pressione dell'aria dei pneumatici anteriori e posteriori rientra nel valore normale dopo il montaggio della bicicletta; 10.2 E’ necessario fare riferimento all'intervallo di riferimento del gonfiaggio sul lato del pneumatico quando si riempiono gli pneumatici per il riempimento, generalmente tra 35PSI --- 65PSI (280Kpa - 450Kpa).
  • Page 61 Si prega di contattare per altre istruzioni per l'installazione e la riparazione della bici elettrica VIVI o abbia qualsiasi domanda sull'articolo. Lista di imballaggio Descrizioni Quantita’...
  • Page 62 Spanish VIVI Manual de bicicleta eléctrica ADVERTENCIA: LEA ESTE MANUAL DETENIDAMENTE ANTES DE UTILIZAR EL EQUIPO...
  • Page 63 Contenido Las instrucciones de seguridad------------------------------------------------------------Page 1 Parámetros de configuración técnica------------------------------------------------------Page 1 instrucciones de contador-----------------------------------------------------Page2- 3 Batería: más información y mantenimiento---------------------------------------------Page 4 Recargar--------------------------------------------------------------------------Page5 Instrucciones de instalación----------------------------------------------------------Page5-10...
  • Page 64 __________________ 1.Instrucciones de seguridad 1.Gracias por elegir y comprar VIVI E-Bike. La bicicleta eléctrica cuenta con la última innovación avanzada en tecnología. 2.Lea atentamente las instrucciones antes de utilizar la bicicleta eléctrica por motivos de seguridad. El funcionamiento inadecuado reducirá su rendimiento de conducción y, lo que es más importante, provocará...
  • Page 65 3. Operación del medido 3.1 Instrucción del medidor...
  • Page 66 3.2 Operación del medidor instrucciones de funcionamiento Mantenga Vuelva a Pedaleo (sin Pulse "+" Presione el presionado el pulsar "+" asistencia de botón "+" para cambiar para cambiar botón durante pedaleo durante 2 al nivel de al nivel de 2 segundos eléctrico)...
  • Page 67 3.3 Instrucciones para la solución del medidor: 1.Primero encienda la máquina y cambie la marcha a alta velocidad; 2. Presione los botones "+" "-" simultáneamente. Mantenga pulsado durante 3 segundos a 5 segundos, este es el límite de velocidad se elevará; 3.
  • Page 68 ¡Cuidado con las quemaduras químicas! Y deje de usar una batería dañada inmediatamente. 4.4 No toque la batería sin un paño o guantes y asegúrese de que el ácido no toque sus ojos. 5.Recarga 1.Para cargar la batería con la bicicleta, simplemente coloque la bicicleta al alcance de la fuente de alimentación y conéctela.
  • Page 69 3. Instalación del faro 3.1 Aflojar el tornillo de la luz delantera de la horquilla delantera; Instale el faro en el orificio del tornillo en la horquilla delantera y apriete el tornillo con una herramienta hexagonal interna. 4. Instalación de la rueda delantera: 4.1: Cortar la cuerda de enrollar, quitar la rueda delantera, quitar la palanca de protección de la horquilla delantera y la cubierta de protección de la rueda delantera.
  • Page 70 sul lato destro. (Con corona), ruotare in senso orario, quindi serrare il perno del pedale con una chiave n. 15. 6.Instalación del asiento. 6.1 Abra el paquete y saque el cojín y la tija del sillín e instale el reflector trasero en la tija del sillín.
  • Page 71 estará. 9. Instrucciones de instalación de la perilla de control de velocidad 9.1 Primero retire la cubierta del manillar preinstalada en el manillar, 9.2 Saque la perilla de control de velocidad del paquete pequeño, primero inserte la perilla de control de velocidad del lado derecho del manillar, luego coloque la funda, luego coloque la cubierta corta del mango y golpee el mango en su lugar con un martillo de goma;...
  • Page 72 11.Instrucciones de uso de la palanca de cambios: 11.1 Cuando la palanca de cambios izquierda se mueve hacia adelante, el desviador delantero se moverá hacia afuera y la cadena se moverá simultáneamente desde la parte pequeña del plato a la parte grande. Esto aumentará...
  • Page 73 Póngase en contacto para obtener más instrucciones de instalación y reparación de bicicletas eléctricas VIVI o si tiene alguna pregunta sobre el artículo. Lista de contenido Descripción Cantidad bicicleta eléctrica Herramientas (llave 13-15, llave 9, 14-17,...
