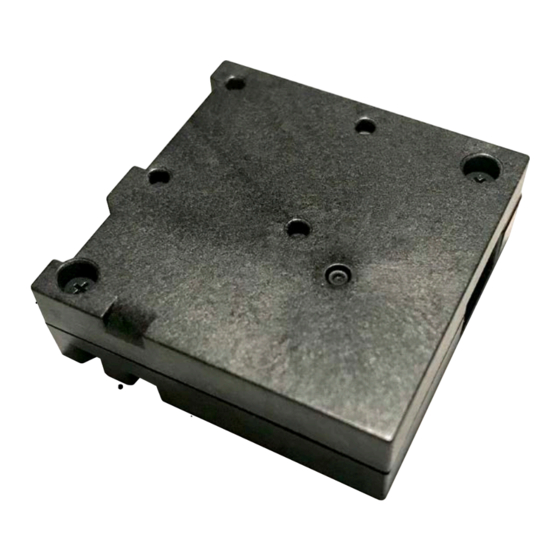

- Page 1 LASER TYPE PARTICULATE MATTER (PM) SENSOR SN-GCJA5L Evaluation Kit Instruction Manual na.industrial.panasonic.com/laser-type-pm-sensor-eval-kit...
- Page 2 ITEMS NEEDED FOR EVALUATION: Panasonic Laser PM Sensor Switch Science BOB-12009 Bidirectional I2C Software For Software For And Lead Wire With Connector Arduino UNO Board Voltage Level Shifter Using FET Arduino Uno PC application WIRING AND CONNECTION TO ARDUINO ®...
- Page 3 WIRING AND CONNECTION TO ARDUINO UNO (CONT.) Software For PC Application PM25TestChecker Arduino Drivers PM25TestChecker 180702.zip 180702.exe TEST BOARD SETUP MANUAL 1 Unzip "PM25TestChecker180702.zip" 2 In the “PM25TestChecker180702”, there are “Arduino Drivers” folder and "PM25TestChecker180702.exe" folder. PM25TestChecker PM25TestChecker Arduino Drivers PM25TestChecker 180702.zip 180702...
- Page 4 TEST BOARD DRIVER INSTALL 1 Connect Arduino Uno board to Windows PC by USB cable. The PC Windows version should be Windows7. 2 Install the driver automatically. (If install fails, go to number 3). 3 Start the device manager. 4 If display ”Unknown device”, click this file. If nothing, right-click the Arduino like icon inside ”port (COM and LPT)”...
- Page 5 DATA RETRIEVAL 1 Make a copy “PM25TestChecker180702.exe” on PC. 2 Connect the Arduino Uno board and sensor by the connector. 3 Click and start “PM25TestChecker180702.exe”. PM25TestChecker 180702.exe 4 Under “COM Port” please click on “COMM Search. 5 Otherwise click on “COMM Search. 6 Click on “START”...
