  • Page 1 CX-400 Instruction Manual Bedienungsanleitung Manual de Instrucciones Manuel d’instructions Manuale di istruzione...
  • Page 2: Part Names

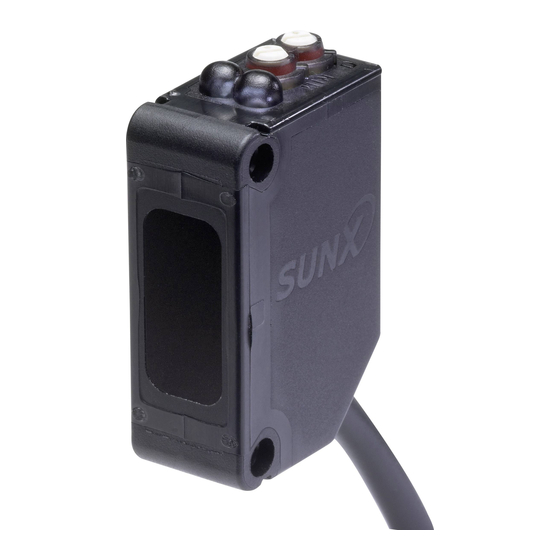

    PART NAMES INSTRUCTION MANUAL Compact Photoelectric Sensor CX-400 Series MEUML-CX400 V1.0 Thank you very much for using SUNX products. Please read this Instruction Manual carefully and thoroughly for the correct and optimum use of this Part Description product. Kindly keep this manual in a convenient place for quick reference. Stability indicator Lights up under the stable Light or stable WARNING...
  • Page 3: I/O Circuit Diagrams

    I/O CIRCUIT DIAGRAMS MOUNTING AND ADJUSTING The following symbols are used in this section. Mount the sensor with a tightening torque of 0.5N·m or less. Symbol Meaning Reverse supply polarity protection diode 12mm M3 screws with washers Surge absorption zener diode Sensor mounting bracket (optional) NPN / PNP output transistor...
  • Page 4: Sensitivity Adjustment

    This procedure assumes that “Light-ON” is set for the operation mode. SENSITIVITY ADJUSTMENT To understand sensitivity adjustment, you must first understand the differ- ence between the “light received” and the “dark” condition. Do not confuse the “light received” and “dark” condition with the operation If “Dark-ON”...
  • Page 5: Slit Masks

    RETROREFLECTIVE TYPE SENSOR WITH INTERFERENCE PREVENTION FILTERS POLARIZING FILTERS Interference prevention filters are only available for the thru-beam As light is polarized by a transparent film or membrane, CX-491 may not type sensor. detect an object covered or wrapped by transparent film. Such objects include, for example: By mounting interference prevention filters, two sets of thru-beam type sensors can be mounted close together.
  • Page 6: Specifications

    SPECIFICATIONS Diffuse reflective Retroreflective type with Narrow view Thru-beam Short sensing Long sensing reflective polarizing filter range range Item CX-411 (NPN) (NPN) (NPN) (NPN) (NPN) CX-491 CX-421 CX-422 CX-423 CX-411-P (PNP) CX-491-P (PNP) CX-421-P (PNP) CX-422-P (PNP) CX-423-P (PNP) Sensing range 300mm 800mm 70 to 200mm...
  • Page 7 By mounting interference prevention filters, two sets of the sensors can be mounted close together. For details, see page 4, section 10, INTERFERENCE PREVENTION FILTERS. SUNX Limited URL: sunx.jp Overseas Sales Dept. (Head Office) 2431-1 Ushiyama-cho, Kasugai-shi, Aichi, 486-0901, Japan Phone: +81-(0)568-33-7861 FAX: +81-(0)568-33-8591 Europe Headquarter: Panasonic Electric Works Europe AG www.panasonic-electric-works.com Rudolf-Diesel-Ring 2, D-83607 Holzkirchen, Germany Phone: +49-8024-648-0...
  • Page 8 BAUTEILE BEDIENUNGSANLEITUNG Kompakter Optosensor Serie CX-400 MEUML-CX400 V1.0 Danke, dass Sie sich für ein SUNX-Produkt entschieden haben. Bitte lesen Sie diese Bedienungsanleitung, für die optimale Verwendung dieses Bauteil Beschreibung Produkts, sorgfältig durch. Heben Sie diese Bedienungsanleitung zum Nachlesen griffbereit auf. Stabilitätsanzeige Leuchtet, wenn die Hell-/Dunkelbedingun- (grün)
  • Page 9: Montage Und Ausrichtung

    Einweg-Lichtschranke E/A SCHALTPLÄNE 1 Drehen Sie den Hell-/Dunkel-Schalter in die Position (L), um den Modus In diesem Abschnitt werden folgende Symbole verwendet. Hell-EIN zu aktivieren. 2 Platzieren Sie Sender und Empfänger so, dass sie in einer geraden Linie Symbol Beschreibung gegenüber liegen.
  • Page 10 Diese Vorgehensweise setzt voraus, dass der Betriebsmodus "Hell-EIN" EMPFINDLICHKEIT ANPASSEN aktiv ist. Zur Anpassung der Empfindlichkeit ist es wichtig, den Unterschied zwischen dem Status "Hell" und dem Status "Dunkel" zu verstehen. Ve r w e c h s e l n S i e d i e St a t u s " H e l l " u n d " D u n k e l " n i c h t m i t d e r Betriebsanzeige “Hell-EIN”...
  • Page 11 REFLEXIONS-LLCHTSCHRANKE MIT FILTER ZUM SCHUTZ VOR POLARISATIONSFILTERN LICHTINTERFERENZEN Da das Licht von einer transparenten Beschichtung oder Folie polarisiert Die Filter zum Schutz vor Lichtinterferenzen stehen nur für die wird, kann ein so beschichtetes oder transparent verpacktes Objekt vom Einweg-Lichtschranke zur Verfügung. CX-491 eventuell nicht erkannt werden.
  • Page 12: Technische Daten

    TECHNISCHE DATEN Lichttaster Relexions-Lichtschranke Einweg-Lichtschranke Kleiner Lichtfleck mit Polarisationsfilter Kurze Reichweite Lange Reichweite Einstellung CX-411 (NPN) CX-491 (NPN) CX-421 (NPN) CX-422 (NPN) CX-423 (NPN) CX-411-P (PNP) CX-491-P (PNP) CX-421-P (PNP) CX-422-P (PNP) CX-423-P (PNP) Reichweite 300mm 800mm 70 bis 200mm ∅...
  • Page 13 4, Abschnitt 10, FILTER ZUM SCHUTZ VOR LICHTINTERFERENZEN. SUNX Limited URL: sunx.jp Overseas Sales Dept. (Head Office) 2431-1 Ushiyama-cho, Kasugai-shi, Aichi, 486-0901, Japan Phone: +81-(0)568-33-7861 FAX: +81-(0)568-33-8591 Europe Headquarter: Panasonic Electric Works Europe AG www.panasonic-electric-works.com Rudolf-Diesel-Ring 2, D-83607 Holzkirchen, Germany Phone: +49-8024-648-0...
  • Page 14 PARTES MANUAL DE INSTRUCCIONES Sensor Fotoeléctrico Compacto CX-400 Serie MEUML-CX400 V1.0 Muchas gracias por utilizar productos de SUNX. Por favor, lea atentamente este Manual de Instrucciones para el uso correcto y óptimo de este N°. Elemento Descripción producto. Guardar cuidadosamente este manual en un lugar adecuado para su rápida consulta.
  • Page 15: Montaje Y Ajuste

    DIAGRAMAS DEL CIRCUITO DE E/S MONTAJE Y AJUSTE En esta sección se utiliza la siguiente símbología. Montar el sensor con un par de priete igual o menor a 0,5N. Símbolo Significado Diodo de protección contra polaridad inversa Tornillos con tuercas M3 de 12mm Diodo zener de absorción de picos de corriente Soporte de...
  • Page 16: Ajuste De Sensibilidad

    6 Seleccionar el modo de operación deseado, Con Luz o En Oscuridad, Este procedimiento asume que el modo de operación seleccionado es "Con con el interruptor de modo de operación. Luz". Objeto detectable ¡Si el modo de operación es "En Oscuridad", la salida se comportará de Espejo modo inverso! Potenciómetro...
  • Page 17 MODELO DE REFLEXION SOBRE ESPEJO FILTROS DE PREVENCIÓN DE CON FILTROS POLARIZADORES INTERFERENCIA MUTUA Puesto que la luz es polarizada por un film transparente, el sensor CX- Los filtros de prevención de interferencia mutua solo están podría no detectar objetos envueltos en plástico transparente. Por disponibles para los sensores de tipo barrera.
  • Page 18: Especificaciones

    ESPECIFICACIONES Reflexión directa Reflexión sobre espejo Reflexión directa Barrera de haz estrecho con filtro polarizador Estándar De largo alcance Concepto CX-411 (NPN) (NPN) (NPN) (NPN) (NPN) CX-491 CX-421 CX-422 CX-423 CX-411-P (PNP) CX-491-P (PNP) CX-421-P (PNP) CX-422-P (PNP) CX-423-P (PNP) Rango de detección 300mm 800mm...
  • Page 19 4, la sección 10, FILTROS DE PREVENCIÓN DE INTERFERENCIA MUTUA. SUNX Limited URL: sunx.jp Overseas Sales Dept. (Head Office) 2431-1 Ushiyama-cho, Kasugai-shi, Aichi, 486-0901, Japan Phone: +81-(0)568-33-7861 FAX: +81-(0)568-33-8591 Europe Headquarter: Panasonic Electric Works Europe AG www.panasonic-electric-works.com Rudolf-Diesel-Ring 2, D-83607 Holzkirchen, Germany Phone: +49-8024-648-0...
  • Page 20: Manuel D'instructions

    COMPOSANTS MANUEL D’INSTRUCTIONS Capteur photoélectrique compact Série CX-400 MEUML-CX400 V1.0 Vous venez d’acquérir un produit SUNX et nous vous en remercions. Veuillez lire ce manuel d’instructions avec attention afin d’utiliser N° Composant Description correctement ce produit. Gardez ce manuel à portée de main pour pouvoir le consulter rapidement.
  • Page 21: Montage Et Réglages

    SCHÉMAS DE CONNEXION D’ENTRÉE/DE MONTAGE ET RÉGLAGES SORTIE Montez le capteur avec un couple de serrage de 0,5N·m maxi. Dans cette section, les symboles suivants sont utilisés. Symbole Signification Vis M3 12mm avec rondelles Diode de protection contre l’inversion de polarité Etrier de montage du capteur (en Diode Zener de protection contre les surtensions...
  • Page 22: Réglage De La Sensibilité

    6 Sélectionner le mode de fonctionnement souhaité, Light-ON ou Dark- Cette procédure suppose que “Light-ON” soit paramétré comme mode de ON, à l’aide du commutateur de mode de fonctionnement. fonctionnement. Objet à détecter Si “Dark-ON” est paramétré, la sortie se comportera inversement ! Réflecteur Potentiomètre Etape...
  • Page 23 CAPTEUR RÉTRORÉFLECTIF AVEC FILTRES DE SUPPRESSION DES FILTRES POLARISANTS INTERFÉRENCES La lumière étant polarisée par une membrane ou un film transparent, il se Les filtres de suppression des interférences sont disponibles peut que le capteur CX-491 ne détecte pas un objet recouvert ou uniquement pour la version barrage.
  • Page 24: Caractéristiques Techniques

    CARACTÉRISTIQUES TECHNIQUES Détection directe Détection directe, Rétroréflectif avec filtre Barrage faisceau ultra- polarisant Portée réduite Longue portée mince Elément CX-411 (NPN) (NPN) (NPN) (NPN) (NPN) CX-491 CX-421 CX-422 CX-423 CX-411-P (PNP) CX-491-P (PNP) CX-421-P (PNP) CX-422-P (PNP) CX-423-P (PNP) Portée 300mm 800mm 70 à...
  • Page 25 10, FILTRES DE SUPPRESSION DES INTERFÉRENCES. SUNX Limited URL: sunx.jp Overseas Sales Dept. (Head Office) 2431-1 Ushiyama-cho, Kasugai-shi, Aichi, 486-0901, Japan Phone: +81-(0)568-33-7861 FAX: +81-(0)568-33-8591 Europe Headquarter: Panasonic Electric Works Europe AG www.panasonic-electric-works.com Rudolf-Diesel-Ring 2, D-83607 Holzkirchen, Germany Phone: +49-8024-648-0...
  • Page 26: Cavi Di Collegamento

    DENOMINAZIONI DEI COMPONENTI MANUALE DI ISTRUZIONE Sensore fotoelettrico compatto Serie CX-400 MEUML-CX400 V1.0 Grazie per aver scelto prodotti SUNX. Per garantire un uso corretto ed ottimale di questo prodotto, si prega di leggere attentamente tutto il N.° Componente Descrizione presente manuale. Si raccomanda di conservare il manuale in un luogo facilmente accessibile per eventuali consultazioni.
  • Page 27: Montaggio E Regolazione

    SCHEMI CIRCUITALI INGRESSO/USCITA MONTAGGIO E REGOLAZIONE In questa sezione si useranno i seguenti simboli: Montare il sensore con una coppia di torsione di max. 0,5N·m. Simbolo Significato Diodo di protezione polarità alimentazione inversa Viti M3 con rondelle Staffa di Diodo Zener di assorbimento sovratensione montaggio momentanea sensore...
  • Page 28 Questa procedura presume che la modalità di funzionamento impostata sia REGOLAZIONE DELLA SENSIBILITÀ “Light-ON”. Per comprendere come si regola la sensibilità è importante distinguere fra la condizione “luce ricevuta” e la condizione “buio”. Le condizioni “luce ricevuta” e “buio” non vanno confuse con le modalità di Se la modalità...
  • Page 29 SENSORE A CATARIFRANGENTE CON FILTRI DI SOPPRESSIONE DI FILTRI POLARIZZATI INTERFERENZE Poiché la luce è polarizzata da uno strato estraneo o da una membrana I filtri di soppressione di interferenze sono disponibili solo per il trasparente, CX-491 potrebbe non rilevare un oggetto coperto da o sensore di tipo a sbarramento.
  • Page 30 SPECIFICHE A riflessione diffusa Tipo a catarifrangente con A riflessione Sbarramento Distanza nominale Distanza nominale ridotta filtro polarizzato rilevabile breve rilevabile estesa Articolo CX-411 (NPN) (NPN) (NPN) (NPN) (NPN) CX-491 CX-421 CX-422 CX-423 CX-411-P (PNP) CX-491-P (PNP) CX-421-P (PNP) CX-422-P (PNP) CX-423-P (PNP) Campo di 300mm...
  • Page 31 4, sezione 10, FILTRI DI SOPPRESSIONE DI INTERFERENZE. SUNX Limited URL: sunx.jp Overseas Sales Dept. (Head Office) 2431-1 Ushiyama-cho, Kasugai-shi, Aichi, 486-0901, Japan Phone: +81-(0)568-33-7861 FAX: +81-(0)568-33-8591 Europe Headquarter: Panasonic Electric Works Europe AG www.panasonic-electric-works.com Rudolf-Diesel-Ring 2, D-83607 Holzkirchen, Germany Phone: +49-8024-648-0...
