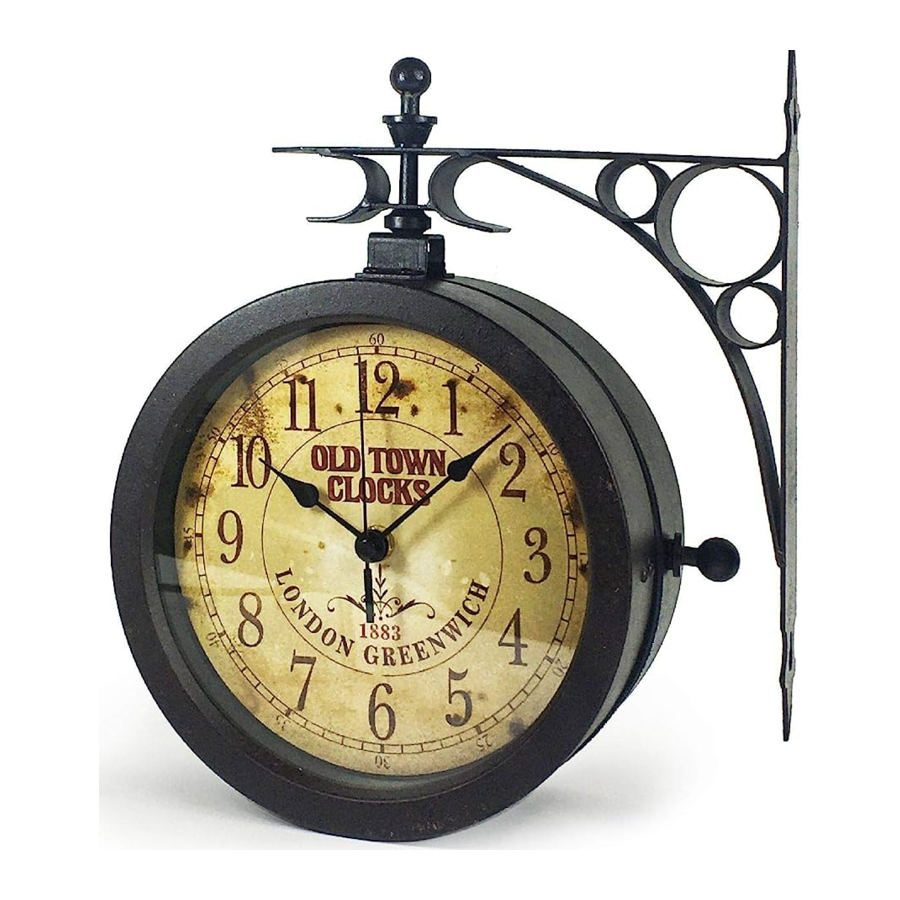

TFA 60.3011 - Nostalgic Wall Clock And Thermometer Manual

Before you use this product

Thank you for choosing this instrument from TFA.

• Please make sure you read the instruction manual carefully.
• Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.
• We shall not be liable for any damage occurring as a result of non-following of these instructions.
• Please take particular note of the safety advice!
• Please keep this instruction manual safe for future reference.

Field of operation and all of the benefits of your new instrument at a glance

• For indoor and outdoor use
• Housing and support in antique look metal
• Rotatable
• Weather resistant
• A decorative eye-catcher for home, balcony and terrace

For your safety

• The product is exclusively intended for the field of application described above. It should only be used as described within this instruction.
• Unauthorised repairs, modifications or changes to the product are prohibited.

Risk of injury:

• Keep this instrument and the battery out of reach of children.
• Batteries contain harmful acids and may be hazardous if swallowed. If a battery is swallowed, this can lead to serious internal burns and death within two hours. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical help immediately.
• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!
• Low batteries should be changed as soon as possible to prevent damage caused by leaking.
• Wear chemical-resistant protective gloves and safety glasses when handling leaking batteries.

on product safety!

• Do not place the device near extreme temperatures, vibrations or shocks.
• Avoid direct sunshine!

Elements

1. Thermometer movement
2. Clock setting knob
3. Battery compartment
4. Decorative screws
5. Holder

Getting started

• Unscrew both decorative screws (see figure 1) and open the housing. On the one side there is the thermometer movement a), on the other side the clockwork b).

  figure 1

Clock

• Take the protection cover of the clockwork between one's thumbs and fingers, press it in the direction of the arrow and turn it up.
• Insert one new battery 1.5 V AA, polarity as indicated.
• Set the time by turning the clock setting knob.
• Fit the protection cover firmly on the clockwork first attaching the cover at the bottom and click it back into position.

Thermometer

• The thermometer measures the temperature in degree Centigrade.
• After transport or long-term use it is recommended to check and eventually readjust the thermometer.
• For readjustment compare the indicated value with a well-calibrated instrument. Deviations can be corrected by carefully turning the black thermometer movement (see figure 1a).
  Attention
  Do not touch the metal pin.

Fixing

• Reassemble the housing exactly. Pay attention to the sealing ring.
• Put both decorative screws back in their holes. Make sure that the screws are in the right position. Tighten them slightly at first and then screw both in tight at the same time (see figure 2).

  figure 2

• You can fix the holder with two solid screws and dowels on a wall (weight bearing capacity 1500 g).
  Avoid direct sunshine!

Care and maintenance

• Clean the device with a soft damp cloth. Do not use solvents or scouring agents.
• Remove the battery if you do not use the device for a long period of time.

Troubleshooting

If your device fails to work despite these measures contact the supplier from whom you purchased it.

Waste disposal

This product has been manufactured using high-grade materials and components which can be recycled and reused.

Never dispose of empty batteries and rechargeable batteries in household waste. As a consumer, you are legally required to take them to your retail store or to a appropriate collection site depending on national or local regulations in order to protect the environment.
The symbols for the heavy metals contained are: Cd=cadmium, Hg=mercury, Pb=lead

This instrument is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE).
Please do not dispose of this instrument in household waste. The user is obligated to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal.

Specifications

TFA Dostmann GmbH & Co. KG, Zum Ottersberg 12, D-97877 Wertheim, Germany
No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice.
The latest technical data and information about this product can be found in our homepage by simply entering the product number in the search box.
www.tfa-dostmann.de
