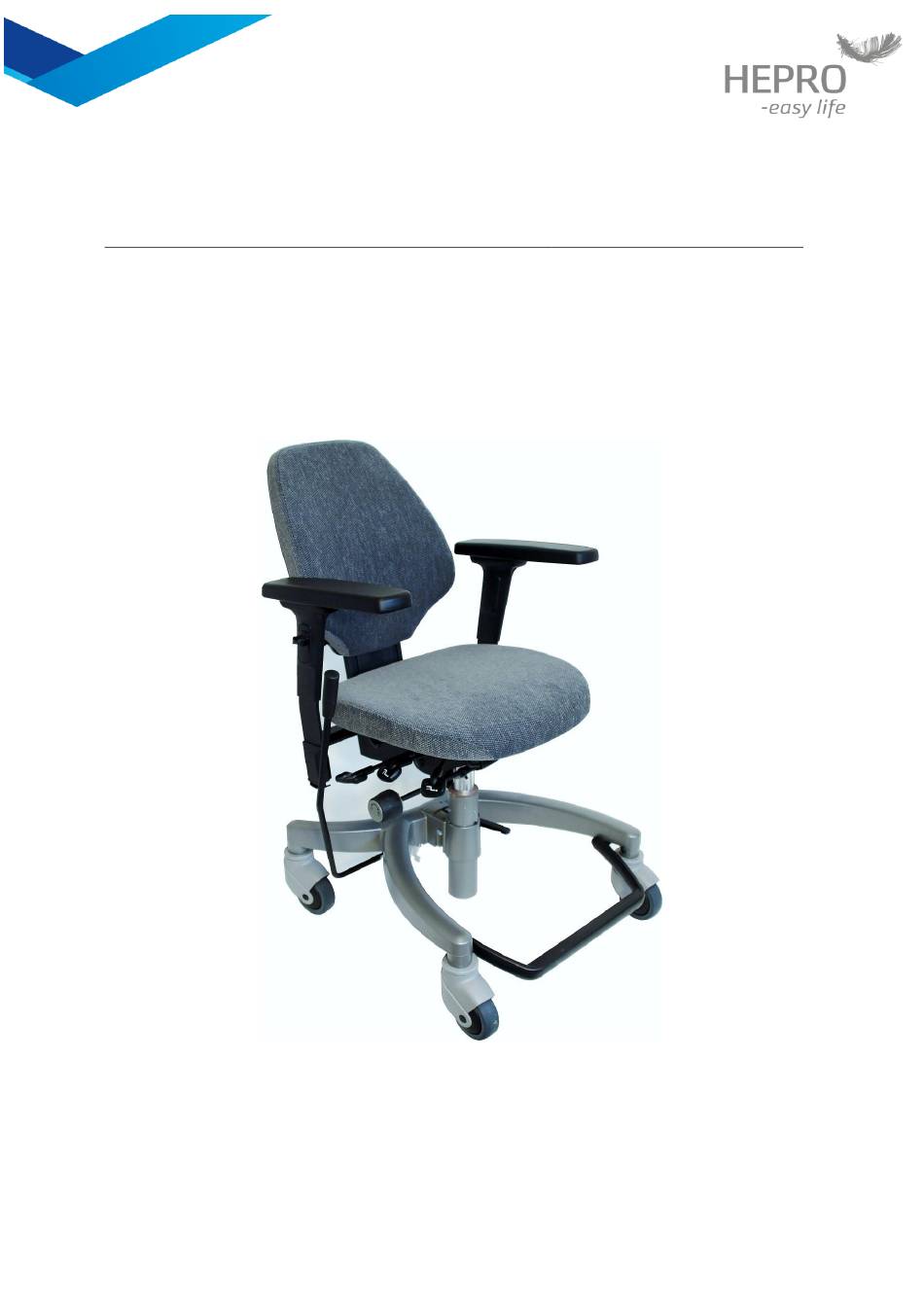

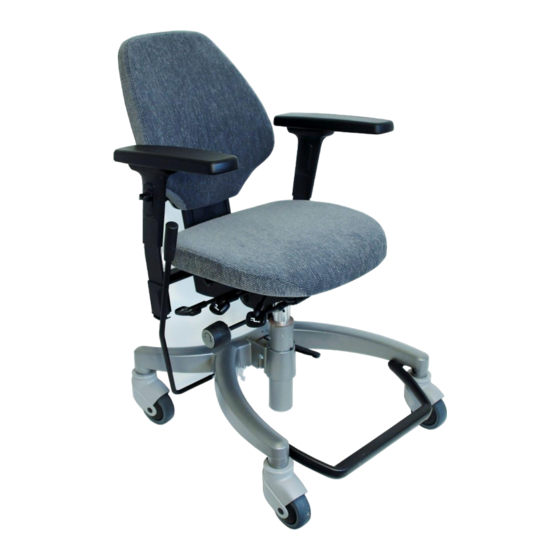

- Page 1 SERVICE MANUAL for Work Chairs, Coxit-chairs and Standing support chairs Work Chairs, Coxit-chairs and Standing support chairs Edition: 03 Page 1 av 26...
- Page 2 Standing support chairs HEPRO – aid manufacturer HEPRO is a Norwegian industrial company that develops, manufactures and sells technical aids for adults and children with mobility impairment. The company was established in 1987 and has to day about 30 employees. The company`s headquarter and factory is located in Rognan, Nordland: Hepro AS, Øvermoan 9, 8250 Rognan, N-Norway...
-
Page 3: Table Of Contents
Wheelbase complete Hepro Work chair E- Elektro ..............18 3.2.3 Wheelbase complete Hepro Work chair E1 Kilo ................ 19 3.2.4 Wheelbase complete Hepro Standing Support Chair, S2 w/central brake ......... 20 3.2.5 Wheelbase complete Hepro Standing Support Chair ..............21 3.2.6 Seat mechanism for Work-/Coxit-chairs and Standing support chairs ........ -
Page 4: Short Product Description
Standing support chairs 1. Short product description Hepro`s work chairs, Coxit-chairs and Standing support chairs covers a wide range of models and variants. They are tested and approved in accordance with the NAV`s requirements. Permitted user weight is max. 150 kg. The model E1 Kilo, designed for heavy users, has allowed user weight 230 kg. The Standing support chairs is tested and approved for user weight up to 120 kg. -
Page 5: Type / Designation
SERVICE MANUAL for Work Chairs, Coxit-chairs and Standing support chairs 1.1 Type / designation Item no. Model Description 30000 Hepro G1 Standard Gas lift, w/o rotation 30001 Hepro G2 Standard Gas lift, w/ rotation 30051 Hepro E1 Standard Electric lift, w/o rotation... -
Page 6: Technical Specifications
SERVICE MANUAL for Work Chairs, Coxit-chairs and Standing support chairs 1.2 Technical specifications Measurements according to NS-EN 1335. Measured Unit G1/G2 E1/E2 G2 Coxit E2 Coxit G1/G2 E1/E2 G1/G2 E1/E2 G1/G2 Tilto Tilto Kilo Synk. Synk. Aktiv Seat height 40-67 45-67 43-67 46-67... -
Page 7: Work Descriptions
3. If other parts are used, the product could loose its accreditation as an aid product. If for any reason one wants to deviate from this rule, Hepro has to be contacted for review and possible approval. 2.1 Replace components 2.1.1 Front wheel casters for Work-and Coxit-chairs (including Standing support mod. -
Page 8: Gas Spring For G1 And G2, Work- And Coxit-Chairs
SERVICE MANUAL for Work Chairs, Coxit-chairs and Standing support chairs 2.1.6 Gas spring for G1 and G2, Work- and Coxit-chairs Disassemble the seat shell. For the seat G1 and G2 Aktiv, see sect. 2.1.17. Special for Synkron and Tilto, loosen the wire for seat lift and seat sliding. ... -
Page 9: Seatlift Actuator For E1 And E2, Work- And Coxit-Chairs
SERVICE MANUAL for Work Chairs, Coxit-chairs and Standing support chairs 2.1.11 Seatlift actuator for E1 and E2, Work- and Coxit-chairs Disassemble the seat shell. Special for Synkron and Tilto, loosen the wire for seat lift and seat sliding. ... -
Page 10: Wheel Base Complete Model E1 Kilo
SERVICE MANUAL for Work Chairs, Coxit-chairs and Standing support chairs 2.1.16 Wheel base complete model E1 Kilo Disassemble the lifting column as described in sect. 2.1.10. Complete wheelbase is now loose and can be replaced. Assemble in reverse order. 2.1.17 Replace cushions For all models except mod. -
Page 11: Maintenance Routines
If the product is exposed to special loads, it would be an advantage for all that in each case it will be established necessary maintenance. Hepro can of course be of help with advice and guidance, if wanted. 2.3.2 Preparation for reuse... -
Page 12: Feature Control And Testing Of Product And Accessories
SERVICE MANUAL for Work Chairs, Coxit-chairs and Standing support chairs 2.4 Feature Control and testing of product and accessories Item no.: Lifting unit 150 …… Aktiv Standard Tilto Synkron Coxit Kilo Stand.support CONTROL: CONTROL METHOD: SPEC.: Performed SEAT UNIT Backrest cushion, Type: Visual Cleand Replaced... -
Page 13: Adjustments
SERVICE MANUAL for Work Chairs, Coxit-chairs and Standing support chairs 2.5 Adjustments 2.5.1 Adjusting the seat height Beyond the regulation of the gas spring or actuator the seat height can be adjusted by adjusting the attachment point for the central unit: ... -
Page 14: Electrical Equipment
SERVICE MANUAL for Work Chairs, Coxit-chairs and Standing support chairs 2.6 Electrical equipment 2.6.1 System Structure GENERAL All electrical components have cable and connector fixed. If something is wrong with the component, it is replaced including cable and connector. The diagram below shows schematic the electrical wiring and connections between the components. Detailed information with description, item no. -
Page 15: Electrical Form
SERVICE MANUAL for Work Chairs, Coxit-chairs and Standing support chairs 2.6.3 Electrical form Charger plug BROWN (-) El.control box w/batteries, GREEN (Up) Switch RED (+) (Lift/Lower) ORANGE (Down) BLUE (Next to motor) BROWN Actuator =Bryterboks =Plugg 2.6.4 Wiring diagram for 9-pin contact The plug on the cable from the switch box is seen from the pin-side (not the solder side). -
Page 16: Troubleshooting On The Elektro-Models
SERVICE MANUAL for Work Chairs, Coxit-chairs and Standing support chairs 2.6.5 Troubleshooting on the ELEKTRO-models. GENERAL It is important first of all to ascertain what in fact is wrong! Since the product is modular built with ”closed” cable connections and molded plugs, we recommend from experience the following: ... -
Page 17: Wheelbase Complete Hepro Work Chair G - Gasso
SERVICE MANUAL for Work Chairs, Coxit-chairs and Standing support chairs 3.2.1 Wheelbase complete Hepro Work chair G - Gasso 1.5.1 1.5.2 Pos. Description Hepro Item no Wheel base 2004, compl. w/o lifting unit and footring 31153 Wheel base 2004 31152... -
Page 18: Wheelbase Complete Hepro Work Chair E- Elektro
SERVICE MANUAL for Work Chairs, Coxit-chairs and Standing support chairs 3.2.2 Wheelbase complete Hepro Work chair E- Elektro Pos. Description Hepro Item no Wheel base 2004, compl. w/o lifting unit and footring 31153 Wheel base 2004 31152 Lifting unit E 150 2004 31424 Actuator LA30.3L-150 Std. -
Page 19: Wheelbase Complete Hepro Work Chair E1 Kilo
SERVICE MANUAL for Work Chairs, Coxit-chairs and Standing support chairs 3.2.3 Wheelbase complete Hepro Work chair E1 Kilo 13.1 13.2 Pos. Description Hepro Item no Wheel base for E1 Kilo (wo/lifting unit and footring) 31049 Wheel base for E1 Kilo 31047 Caster steel wo/brake, wheel Ø125... -
Page 20: Wheelbase Complete Hepro Standing Support Chair, S2 W/Central Brake
SERVICE MANUAL for Work Chairs, Coxit-chairs and Standing support chairs 3.2.4 Wheelbase complete Hepro Standing Support Chair, S2 w/central brake Pos. Description Hepro Item no Wheel base S 2, compl. wo/lifting unit 31684 Wheel base 2004 31152 Gas spring RH 4C, locked rotation, 19 cm 31493 Caster plastic wo/break, wheel Ø100... -
Page 21: Wheelbase Complete Hepro Standing Support Chair
SERVICE MANUAL for Work Chairs, Coxit-chairs and Standing support chairs 3.2.5 Wheelbase complete Hepro Standing Support Chair Pos. Description Hepro Item no Wheel base RH 5L 31500 Gas spring 19 cm, free rotation 31492 Caster RH 7G double Ø50mm, weight operated brake... - Page 22 SERVICE MANUAL for Work Chairs, Coxit-chairs and Standing support chairs TILTO (for G/E Tilto) Pos. Description Hepro Item no 1. Seat mechanism G/E Tilto, compl. w/sliding rail 31894 2. Rotation release, E2 Tilto, compl. 31386 3. Rotation release, G2 Tilto, compl.
- Page 23 SERVICE MANUAL for Work Chairs, Coxit-chairs and Standing support chairs AKTIV (for G1/G2 Aktiv) Pos. Description Hepro Item no Lifting unit Aktiv 150 kompl. w/seat mechanism 31547 Rotation lock G1 Aktiv 31929 Rotation release G2 Aktiv 31904 KILO (for E1 Kilo) Pos.
-
Page 24: Armrest
SERVICE MANUAL for Work Chairs, Coxit-chairs and Standing support chairs HEPRO STANDING SUPPORT CHAIRS Pos. Description Hepro Item no Seat mechanism RH3G incl.backrest post 31474 Seat mechanism RH3H for chair wo/backrest 31475 Seat mechanism RH3G w/3 levers 31473 Seat mechanism Alternativ 31476 3.2.7 Armrest... - Page 25 SERVICE MANUAL for Work Chairs, Coxit-chairs and Standing support chairs 3.2.8 Seat / Backrest Aktiv: Seat: Item no. 31901 Backrest: Item no. 31900 Coxit: Seat: Item no. 31203 Backrest: Item no. 31211 Standard: Seat: Item no. 31193 Backrest: Item no. 31211 Tilto: Seat:...
- Page 26 SERVICE MANUAL for Work Chairs, Coxit-chairs and Standing support chairs Ståstol m/ryggst. Item no. 31530 Seat: Item no. 31218 Backrest: Ståstol m/brystst. Item no. 31528 Seat: Item no. 31532 Chest rest: Change log Edt. 01 17.09.2011 Tender edition Edt. 02 07.02.2012 Adapted to new contract Edt.
