Summary of Contents for HEPRO ARCTIC 17

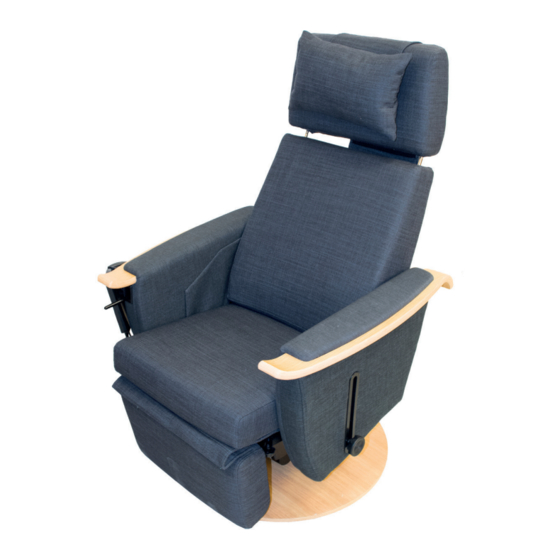

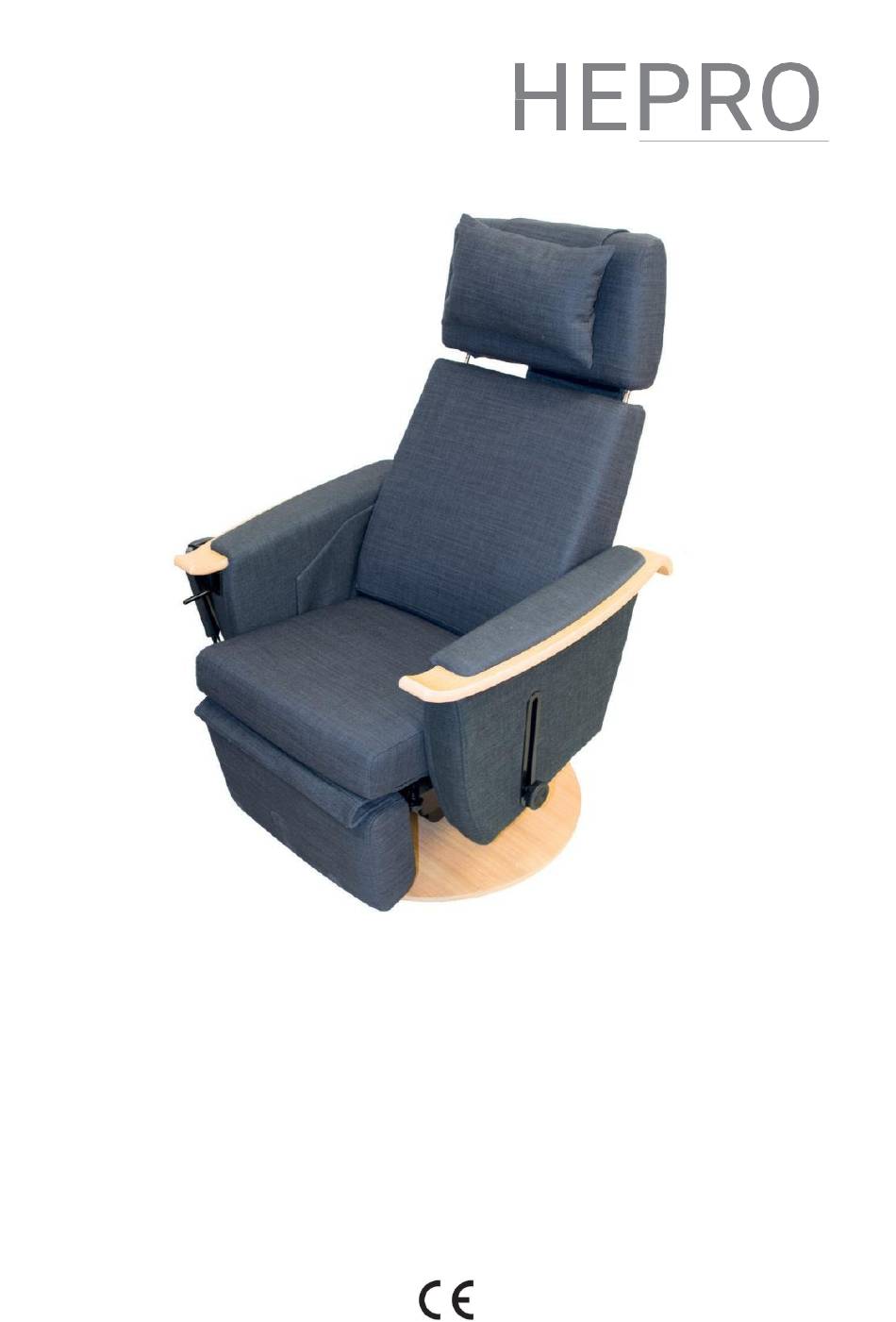

- Page 1 ARCTIC 17 User Manual 2/2018 Editon 28997...
-
Page 2: Foreword
• Arctic1750 • Arctic 1755 • Arctic1760 It contains useful tips on settings, adjustments and precautions in relation to use, as well as information on cleaning and maintenance to ensure you get the best out of your Hepro product. Page 8... -
Page 3: Table Of Contents
Contents: Foreword Contents Explanation of symbols Contents in the pack Usage Assembly Use of Remote Using other functions Customisation Maintenance Guarantee Environment Electromagnetic interference Safety information. HEPRO User Manual| Page 9... -
Page 4: Explanation Of Symbols
Symbol Explanations Manufacturer Caution Production date Please read and follow instructions Serial number CE compliant This product is protected against electrical shocks in accordance with standards IP21 IP classification Waste Disposal Page 8... -
Page 5: Contents In The Pack
Contents in the pack Arctic 17 Remote Control AC/DC Adaptor HEPRO User Manual| Page 9... - Page 6 Electrical Specifications Product name Arctic 17 Model number 29XXX Input input voltage 200~240V AC Output channel max output 29V DC, 2.5A transformer SMPS type timer 2MinON/18MinOFF control Analog Size See the table on the next page Weight (g) See the table on the next page...
- Page 7 Armrest distance min (inside) Armrest distance max Armrest height min Armrest height max Armrest width The maximum width of the chair The chair's maximum length Tilt in degrees (of the chair) Max user weight Weight of the chair HEPRO User Manual| Page 9...
-
Page 8: Usage
165kg. In addition, it has an adjustable breadth and the armrests can move out to a total of 5cm. The Arctic 17 60 has the same functionality but is modified to support a greater weight capacity of up to 260kg. The width of the seat is 60cm. The 17 60 also has extended armrest functionality with a total of 10cm expansion capacity. -
Page 9: Assembly
D. After this, press the back all the way down on the pins so that it meets the bottom. Power Supply enable chair's electronic functions to be used, it must be connected mains power. supplied adaptor must be used here. HEPRO User Manual| Page 9... -
Page 10: Use Of Remote
Use of remote The Arctic rise-recliner is operated using TiMotion-remote. The remote is easily accessible, hanging on the outside of the armrest, on the right side as standard. This can be moved to the left side if needed. Arctic 17standard A –... - Page 11 Arctic 17 with tilt (full Recline) E – Tilt backwards When holding button E, the chair is tilted/reclined backwards. feature allows the entire seat unit to tilt/recline, regardless of the angle of the seat and back. For safety reasons, the tilt/recline function can only be activated with the chair in a default position.
-
Page 12: Using Other Functions
The lever is on the right as standard but can easily be moved to the left side. Arctic 17 comes with USB in the armrest. The USB port can be used to charge or operate USB devices. Just plug in the desired device. Please keep in mind that the USB ports do not work unless the chair is plugged into the mains. -
Page 13: Customisation
Height adjustable neck pillow Adjustable, partitioned back Adjustable armrests Remote Release to maneuver Extending footrest Tilt and rotation * On selected models undercarriage * HEPRO User Manual | Page 19... - Page 14 Adjusting the seat height In order for your Arctic to deliver maximum comfort, it is necessary to adjust the seat height to suit your needs. This is done as follows: Tilt the chair forward so that is rests on the leg support and the front of the armrests.
- Page 15 There is a wheel on each side. Before operating the wheel, the wing nuts securing the seat plate must be loosened slightly and then tightened again when the desired position is reached. HEPRO User Manual | Page 19...
- Page 16 Adjustment of the back UPPER BACK Turn and pull to The upper part of the back can be desired position used to extend the back. Lift it up or press it down as desired. It locks into stepped groves on the pins. The upper part of the back can also be angled.
- Page 17 D and pull armrest to desired position. Then fasten the ratchet bracket. NB! Always raise the armrests from the folded position before they are adjusted sideways so that they can move freely. HEPRO User Manual | Page 19...
-
Page 18: Maintenance
In case of further malfunction of the chair, please contact our Help Centre. Regarding products purchased directly from us, please contact Hepro on: Tel. +47 756 94700. 7 Guarantee For use in accordance with the operating instructions, HEPRO provides a 2 years warranty against material and manufacturing faults. -
Page 19: Environment
Should the chair get dirty, become uncomfortable or be recycled, Hepro has taken this into consideration. The cushions can easily be removed and replaced by a new quality set of cushions from Hepro which also reduces environmental impact. 9 Electromagnetic Interference The Hepro Arctic 17 has been tested according to the requirements of NS EN 60601-1-2: 2015. -
Page 20: Safety Information
Always check that neither people or pets are under the chair before electrical functions are used. In such instances the lifting mechanism may constitute a crush hazard. HEPRO AS Øvremoan 9 8250 Rognan Norge HEPRO AS • Tel. 46 74 55 55 • www.hepro.no...
