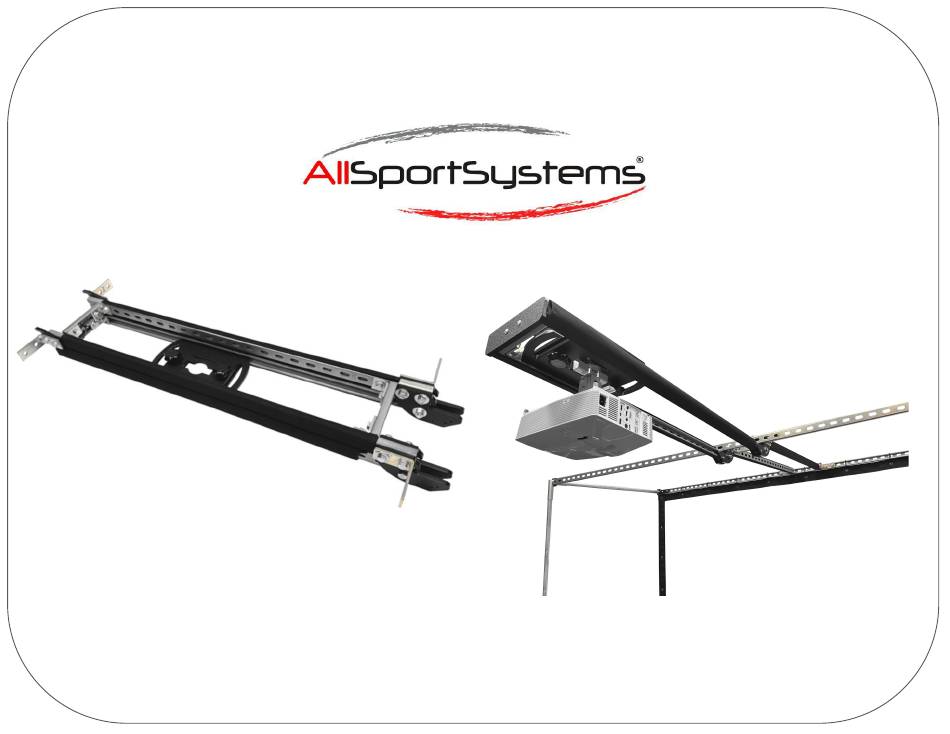

- Page 1 SkyRail Plus Projector Mount Installation Guide 1/24/2023...
- Page 2 SkyRailPlus™ Parts List SkyRailPlus Projector Mount ● ● 2 x SkyBridge kits SkyBridge™ Span Bracket Assembly Guide will show all parts included in each SkyBridge kit and how to assemble the SkyBridge. SkyBridge Setup Guide...
- Page 3 SuperBay CAGE MODIFICATIONS 2 x 90° Connectors instead of 3-Ways ● No T-Connectors ● Unistrut channels Install 2 x SkyBridge (replaces 2 x EMT width poles) ● facing inward space strut 48” apart (channels facing inward) ● 48” between struts SkyBridge Setup Guide...
- Page 4 DIY Bay CAGE MODIFICATIONS 4 x 90° Connectors instead of 3-Ways (cage top) ● Unistrut channels Install 2 x SkyBridge (replaces 2 x EMT width poles) ● facing inward strut spacing 59.5” front to back with channels facing inward. ● 59.5”...
- Page 5 StudioBay CAGE No frame modifications are necessary, SkyBridge is standard on StudioBay! ● space struts 48” apart (channels facing inward) ● Unistrut channels facing inward 48” between struts SkyBridge Setup Guide...
- Page 6 Watch Video Guide See also this video guide for installation of SkyRailPlus. https://youtu.be/sV5fC3ZYyTg...
- Page 7 Insert Cone Nuts ● Insert 8 x Cone nuts; 4 x per strut...
- Page 8 Install SkyRailPlus on cage… Cone nuts should be Hook back of SkyRailPlus Snap front of SkyRailPlus inserted (Insert Cone to SCREEN unistrut into FRONT unistrut channel Nuts) channel...
- Page 9 Center SkyRail and Bolt to Cage ● Center the SkyRail in the cage ● 8 X Bolts - Insert and tighten at all four L Brackets to secure SkyRail to cage.
- Page 10 Rotate Arms to front of cage REMOVE Arm Stops CAREFULLY LOWER projector arms on Front of mount by REMOVING cable tie safety strap on Rear of mount. SWING projector arms INSERT Arm Stops to position to front of cage arms at desired angle...
-
Page 11: Projector Mounting
Projector Mounting Attach Pivot Bracket Install Ceiling Plate to Ceiling Plate Attach Adapter Bracket Hang projector on Pivot to Projector Bracket See Universal Projector Mount instructions for additional detail. - Page 12 Completed Cages DIY Bay SuperBay StudioBay...
