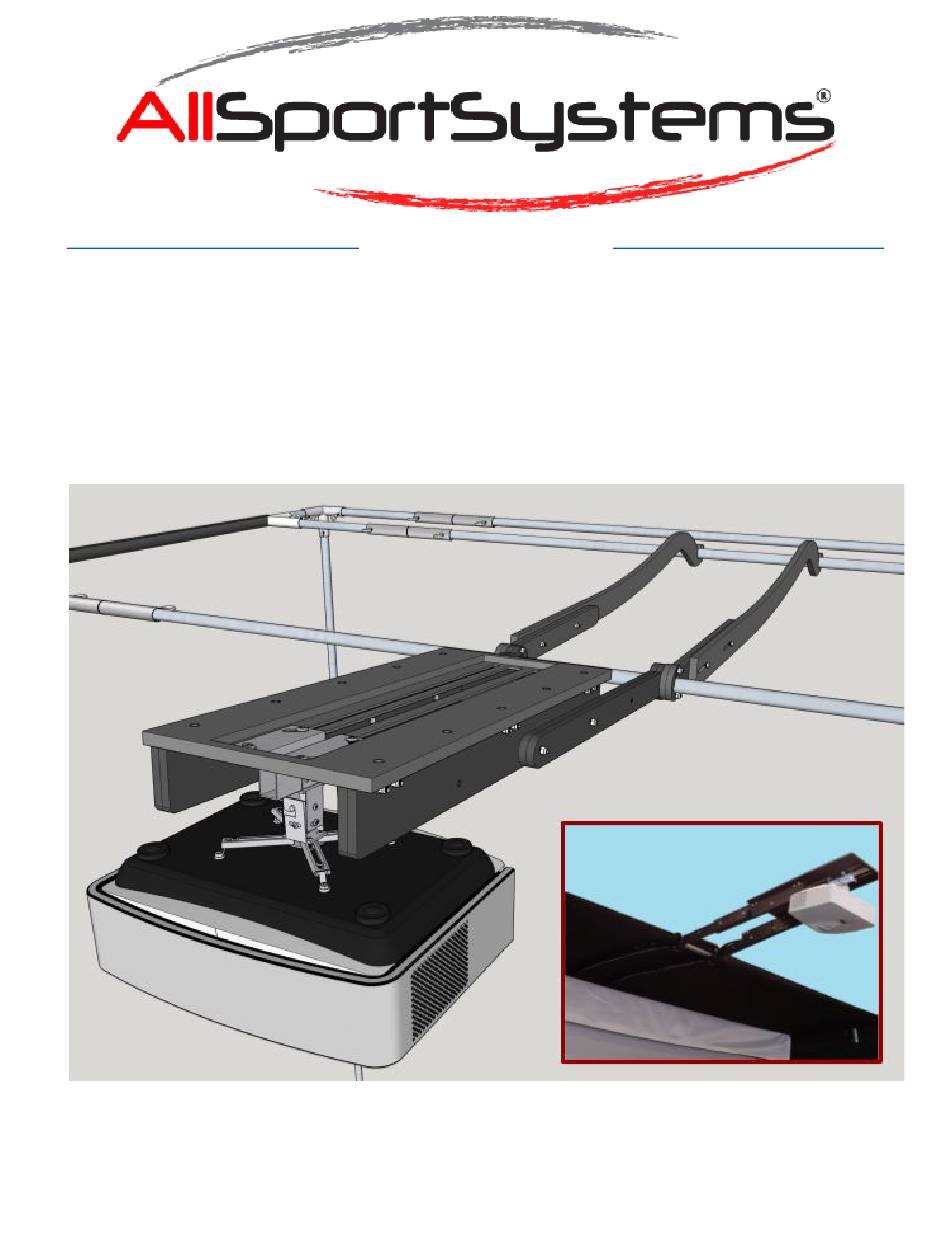

- Page 1 877-847-1280 www.allsportsystems.com SkyRailPlus™ Cage Track Sliding Projector Mount ASSEMBLY GUIDE...
-
Page 2: Table Of Contents
What’s Included - Parts and Hardware Find SkyRailPlus™ Position for your projector Sample SkyRailPlus™ Mounting positions When to use half step SkyRailPlus™ positions SKYRAILPLUS™ ASSEMBLY STEP 1 - Attach ARMS to side RAILS STEP 2 - Attach TOP to RAILS... -
Page 3: What's Included - Parts And Hardware
All S portSystems, Inc. © 2018. What’s Included - Parts and Hardware The following items are included in the SkyRailPlus™: 1 ea. - Top 2 ea. - Rails 2 ea. - Arms 2 ea. - Extenders 2 ea. - Hooks ------------------------------------------------------------------------- 9 Total pieces + connecting hardware. -
Page 4: Find Skyrailplus™ Position For Your Projector
2018. Find SkyRailPlus™ Position for your projector The SkyRailPlus™ can position a projector a maximum distance of 2’10” outside the MiniBay™ or Superbay™ enclosure. To confirm the mounting position and proper enclosure configuration follow the three steps below. If you plan on switching between 4:3 aspect ratios and HD (16:9 or 16:10) aspect ratios, see ... - Page 5 Subtract line b from a: ________ figure to find your SkyRailPlus™ Position (see Par. 4 below) (4) Use the result from Par. 3 above to find your SkyRailPlus™ position. You will need this information for . E XAMPLE: ...
-
Page 6: Sample Skyrailplus™ Mounting Positions
2018. Sample SkyRailPlus™ Mounting positions See MiniBay/SuperBay Installation Instructions for information about installing your SkyRailPlus™ on your MiniBay or SuperBay. Installed in S hort Position with Range of 0” to 14” outside enclosure Installed in D efault Position with Range of 7”... -
Page 7: When To Use Half Step Skyrailplus™ Positions
4:3. As noted previously in this guide there are three primary SkyRailPlus™ positions (1) Short Reach, (2) Default and (3) Long Reach. However, it is also possible to position halfway to the Short Reach and Long Reach positions. -
Page 8: Skyrailplus™ Assembly
S portSystems, Inc. © 2018. SKYRAILPLUS™ ASSEMBLY STEP 1 - Attach ARMS to side RAILS You will need 4 ea bolts and 4 ea nuts to connect the ARMS to the RAILS. Align the ARMS with the first two holes on the RAILS as shown. -
Page 9: Step 2 - Attach Top To Rails
STEP 2 - Attach TOP to RAILS Review F ind SkyRailPlus™ Position for your projector . Thereafter attach the TOP to the RAILS in one of the positions noted below. You will need 4 ea bolts for the Short Reach and Long Reach positions or 6 ea bolts for the Default position. -
Page 10: Step 3 - Attach Extenders
The EXTENDERS can be position at various angles relative to the SkyRailPlus™, allowing the skyrail to be lifted up at an angle from the enclosure. Page 10 of 16 Rev August 10, 2018... -
Page 11: Step 4 - Attach Hooks
NOTE: T he HOOKS have slotted holes to allow them to slide up to 2” inches on the EXTENDERS to make installation easier. The SkyRailPlus™ is now complete before installing on enclosure, add projector mount hardware as outlined in the following section. -
Page 12: Projector/Mount Installation
You will be using the flush mount, thus the telescopic hardware will note be used. Once installed your projector will hang and look similar to the picture above. We recommend installing the hanging hardware before installing the SkyRailPlus™ on the enclosure. -
Page 13: Parts Needed From The Universal Projector Mount Kit
All S portSystems, Inc. © 2018. Parts Needed From The Universal Projector Mount Kit The Hanging Bracket (with wings nuts and bolts), The Cubed Bracket, and The Hooked bracket (includes the arms and feet assembly). Page 13 of 16 Rev August 10, 2018... -
Page 14: Step 1 - Attached Bracket To Skyrailplus
Leave wing nuts loosen enough so that the bracket can slide in the slots. TIP: It is easier to install this hardware before the SkyRailPlus™ has been installed on the enclosure. -
Page 15: Step 2 - Attach Bracket To Projector
All S portSystems, Inc. © 2018. STEP 2 - Attach Bracket to Projector Note: Each projector will have different mounting locations and some will have 4 mounting holes others only 3. Locate the mounting bracket. Determine the number of mounting locations available on your projector. -
Page 16: Step 3 - Hang Projector
S portSystems, Inc. © 2018. STEP 3 - Hang Projector NOTE: Before hanging projector, install the SkyRailPlus™ and complete the enclosure assembly. See M INIBAY™ and SUPERBAY™ INSTALLATION GUIDE www.allsportsystems.net for detailed instructions on how to install the SkyRailPlus™ on your MiniBay™...
