- Page 1 MODEL: HYDROSENSE 4410-LMP OIL IN WATER MONITOR USER MANUAL (REV: 1.2) ARJAY ENGINEERING LTD. 2851 Brighton Road Tel: ++1 (905) 829-2418 Web: www.arjayeng.com Oakville (Toronto), Canada Fax: ++1 (905)829-4701 Email: arjay@arjayeng.com L6H 6C9 North America: 1-800-387-9487...
- Page 2 This page intentionally left blank...
-
Page 3: Table Of Contents
7.1.1 NET ID <1> ............................ 23 7.1.2 FILTER <2> ............................ 23 7.1.3 UNITS <3> ............................. 23 7.1.4 PASSWORD <4> ........................... 23 HYDROSENSE 4410-LMP Revision 1.2 P a g e 3 | 29... - Page 4 FIGURE 1 – SECURE LAMP INSIDE THE LAMP BOX ................ 12 FIGURE 2 – FLOW PLATE SECURE AGAINST TRAY ................ 13 FIGURE 3 – BLUE LAMP BOX SECURE AGAINST TRAY ..............13 FIGURE 4 - USER INTERFACE ......................15 HYDROSENSE 4410-LMP Revision 1.2 P a g e 4 | 29...
-
Page 5: Specifications
Inlet pressure Minimum 2 psi, maximum 1000 psi, *minimum 20 psi when equipped with optional cooler, *For safety reasons a reducing valve should be used for pressure above 100 psi. HYDROSENSE 4410-LMP Revision 1.2 P a g e 5 | 29... -
Page 6: Use Hazard Information
Indicates a potentially or imminently hazardous situation which, if not DANGER avoided, will result in death or serious injury. Indicates a situation which, if not avoided, may cause damage to the NOTICE instrument. Information that requires special emphasis. HYDROSENSE 4410-LMP Revision 1.2 P a g e 6 | 29... -
Page 7: Instrument Overview

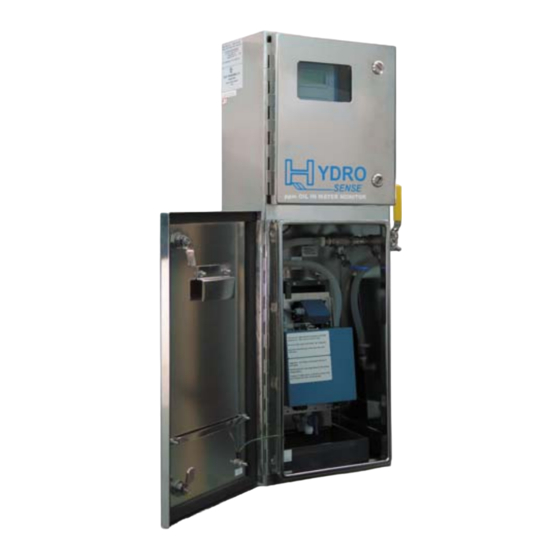

No moving parts, complete maintenance without turning off the sample stream DESCRIPTION The HydroSense Oil in Water Monitor from Arjay Engineering Ltd. has been designed for municipal and industrial applications to measure PPM levels of petroleum hydrocarbons in aqueous solutions. Typical applications include PPM trace amounts of oil in effluent water from storm water runoff, oil in cooling water, produced water, and oil/water separators. -
Page 8: Interferences And Affects To Accuracy
If this background chemical concentration is consistent, this interference will be zeroed out during calibration. Calibration is recommended using process water so that any background interferences are zeroed out. HYDROSENSE 4410-LMP Revision 1.2 P a g e 8 | 29... -
Page 9: Routine Cleaning Program
Be sure to thoroughly rinse the flow plate with clean water before installing. Repeated visual contact with the light source can be harmful. Avoid CAUTION looking directly at the ultraviolet light source. Wear UV protection. HYDROSENSE 4410-LMP Revision 1.2 P a g e 9 | 29... -
Page 10: Installation
8) The outlet fitting is a 2” male thread. Do not reduce this size. This will cause a restriction and flood the system. HYDROSENSE 4410-LMP Revision 1.2 P a g e 10 | 29... -
Page 11: Glossary Of Symbols
Courant continu Contacts travail Normally closed relay contacts Power off Contacts Repos ArróÕ (mise hors tension) Power on Live Marche (mise sous tension) Sous tension Neutral Ground Neutre Terre HYDROSENSE 4410-LMP Revision 1.2 P a g e 11 | 29... -
Page 12: Unit Installation
SEATED BETWEEN TABS KNURLED TABS SCREWS METAL BAND Figure 1 – SECURE LAMP INSIDE THE LAMP BOX Plug the lamp terminal into the socket. Close the Blue Lamp Box. HYDROSENSE 4410-LMP Revision 1.2 P a g e 12 | 29... -
Page 13: Figure 2 - Flow Plate Secure Against Tray
Connect the inlet sources to the 3/8” inlet of the 3 way valve. DO NOT TURN ON THE INLET SOURCES. Connect the outlet source to drain or a sump. HYDROSENSE 4410-LMP Revision 1.2 P a g e 13 | 29... -
Page 14: Permanent Power Connection (Ac Powered Models Only)
The equipment is suitable for connection to a 15A protected branch circuit. Wiring diagram for permanent connection: See drawings at the back of this manual. Use copper conductors only. ELECTRICAL INSTALLATION See drawings at the back of this manual. HYDROSENSE 4410-LMP Revision 1.2 P a g e 14 | 29... -
Page 15: Startup And Settings
The current value is not changed unless the entered value is within limits. During value entry, the oil concentration is constantly updated in the background. HYDROSENSE 4410-LMP Revision 1.2 P a g e 15 | 29... -
Page 16: Password Protection
The 3rd line shows the current date and time The 4th line displays the amount of days left until next calibration. The main power supplies in upper chamber should also show a Green power light. HYDROSENSE 4410-LMP Revision 1.2 P a g e 16 | 29... -
Page 17: Control Setup (
Press <3> to enable the relays or press <4> to disable the relays. As a reminder to turn the relays back on after maintenance the main display will show relays disabled on line 3. HYDROSENSE 4410-LMP Revision 1.2 P a g e 17 | 29...Key) -
Page 18: Relay Failsafe <5
5.3.2 mA OUTPUT TEST <2> This feature allows the user to check the mA output at 4mA <1> and 20mA <2> OR Enter a desired value <3>. This is for maintenance purpose only. HYDROSENSE 4410-LMP Revision 1.2 P a g e 18 | 29... -
Page 19: Calibration Setup (
Close the chamber door. Make sure the Sample Chamber Door is closed tightly. The door MUST be closed to eliminate any background light interference during and after calibrations. HYDROSENSE 4410-LMP Revision 1.2 P a g e 19 | 29...Key) -
Page 20: Calibration
Enter # of points if change is required then press <ENTER>. For Calibration, the Hydrosense 4410-LMP can accept up to 5 sample points to draw a calibration curve. The factory default is 2 points where 0ppm (clean process water) and a known ppm level is used. -
Page 21: Manual Calibration With Laboratory Results
6.2.5 CHANGE CALIBRATION LOCATION There is an option to have up to 10 calibration locations in Hydrosense 4410-LMP (Cal 1 – Cal 9). Each location can have up to 5 calbration points to draw a calibration curve. Consult factory if this feature is required. -
Page 22: Calibration Period
The 4410-LMP controller has a calibration reminder feature. The factory setting is 180 days from last preformed calibration. At this time the main display will show “Calibration Due”. Press <1> to change the amount of days from last calibration or <2> to exit. HYDROSENSE 4410-LMP Revision 1.2 P a g e 22 | 29... -
Page 23: Setup (Operation And Diagnostics) (
<3> for FLR. 7.1.4 PASSWORD <4> Press <4> for password. Enter the new password at the prompt, then press <ENTER>. 7.1.5 MORE <5> For further options Press <5>. HYDROSENSE 4410-LMP Revision 1.2 P a g e 23 | 29...Key) -
Page 24: Ma Output Trim <1
This section records the serial # , hardware revision, software revision and Modbus ID #. DATE / TIME SETUP <3> This feature allows user to set current date and time. Press <1> to change Date and press <2> to Time. HYDROSENSE 4410-LMP Revision 1.2 P a g e 24 | 29... -
Page 25: Troubleshooting
Press <1> for Process values. Record REF and FLR from line 1, 2 and 3. 3. Report recorded information from step 1 & 2 above to Arjay: Arjay@arjayeng.com. HYDROSENSE 4410-LMP Revision 1.2 P a g e 25 | 29... -
Page 26: Controller Setting Sheet
“OFF” – Prevents relays from reflecting the Alarm condition. Moving Window Filter tracks the average of the last Filter # of samples. Higher values provide more stable readings (Max. 1000) Failsafe Relays energized under normal conditions HYDROSENSE 4410-LMP Revision 1.2 P a g e 26 | 29... -
Page 27: Sample Preparation (For Calibration Or Testing)
This is not a precise method. Standing time, the volatility of the oil, operator measurements and equipment will all contribute to errors in the blend. This should be used quickly and only when actual process conditions cannot be sent to laboratory for calibration. HYDROSENSE 4410-LMP Revision 1.2 P a g e 27 | 29... -
Page 28: Periodic Testing And Maintenance
The lab procedures must be the same as the ones used for calibration. Any sample sent to a lab may incur separation and evaporation during NOTICE transit. Advise the lab to thoroughly mix the sample prior to testing. HYDROSENSE 4410-LMP Revision 1.2 P a g e 28 | 29... -
Page 29: Flow Plate Cleaning
See video on Arjay Enginnering Ltd. website (www.arjayeng.com) for more information in using Oil in Water Montior. 11.4 SPARE PARTS LIST Following is the spare parts list if in case need to order. Arjay Part No. Desciption A00114 UV Lamp A00142B Flow Plate HYDROSENSE 4410-LMP Revision 1.2 P a g e 29 | 29... - Page 30 This warranty extends to Arjay supplied equipment and includes carbon monoxide sensing cells. All other consumable gas sensor cells are excluded from this additional warranty. Arjay Engineering Ltd. arjayeng.com admin/forms/admin/warranty2018...
