- Page 1 MODEL 2852-DPM Dry Pump Monitor User Manual Technical Support Continental North America Toll Free 1-(800) 387-9487 Ph: +1 (905) 829-2418 Fx: +1 (905) 829-4701 A Product of Arjay Engineering Ltd. Oakville, Ontario, Canada www.ArjayEng.com MODEL: HARDWARE NO.: SOFTWARE NO.: SERIAL NO.:...
- Page 2 Pipe monitoring for dry conditions to protect pumps and equipment Over 40 years of capacitance experience stands behind the 2852-DPM pipe monitor. The unique in-line sensor continuously monitors for the change from a wet to dry condition or a liquid change from one dielectric to another.
- Page 3 The unique PMC circuit design, installed at the probe and exclusive to Arjay, immediately converts the sensor signal to a frequency pulse for furtherance to the controller. ENGINEERING Arjay Engineering Ltd. 2851 Brighton Road Oakville, Ontario Canada L6H 6C9 http://www.arjayeng.com telephone: ++1 905-829-2418 N.
-
Page 4: Table Of Contents
Model: 2852-DPM User Manual Rev: 2.1 TABLE OF CONTENTS INSTRUMENT OVERVIEW .................... 3 Features ......................3 Model Number vs. Voltage Input ................ 3 Specifications ..................... 4 INSTALLATION ....................... 6 ... -
Page 5: Instrument Overview

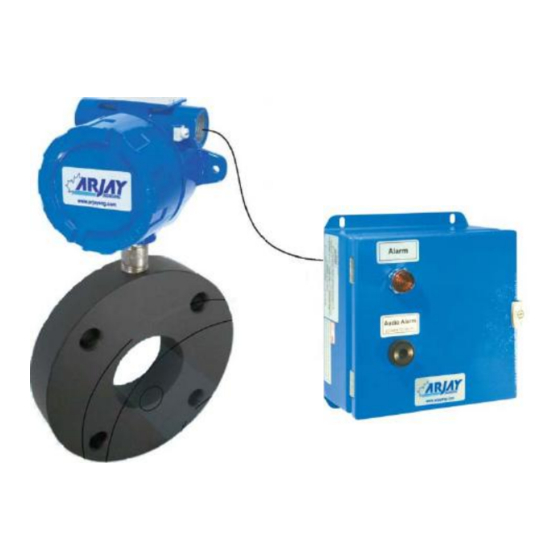

The remote mounted Arjay 2852 controller monitors the capacitance change of the sensor and activates a relay contact for use with alarms, pumps, valves, etc. The complete 2852-DPM system consists of the flange sensor, the PMC card at the sensor, and the 2852 controller. -
Page 6: Specifications
Model: 2852-DPM User Manual Rev: 2.1 Specifications 12 VDC +15% /-10% or 24 VDC +15% /-10%, 250mA maximum Power Input: 100VAC – 240VAC +/- 10%, 50/60 Hz, 150mA maximum Note: DC input models must be supplied by Limited Energy power source. - Page 7 Model: 2852-DPM User Manual Rev: 2.1 Refer to Dimensional Drawing Mechanical Specification: Enclosure Rating Type 4 / IP65 Painted Steel (Blue) Type 4x / IP66 Polycarbonate (Gray) Type 4x / IP66 316 Stainless Steel Options on Enclosure Buzzer Pilot Light OR Strobe/Beacon Custom alarms ...
-
Page 8: Installation
User Manual Rev: 2.1 INSTALLATION NOTE: If any damage to the instrument is found, please notify an Arjay Engineering representative as soon as possible prior to installation. Controller Installation Choose the mounting location in accordance with good instrument practice. Extremes of ambient temperature and vibration should be avoided (see specifications and installation drawing). -
Page 9: Sensor Installation
Model: 2852-DPM User Manual Rev: 2.1 Sensor Installation The flange sensor is constructed of PVC and machined in accordance with ANSI/ISO 150# bolt hole configurations. Where specialty piping is used (ie. Victaulic), mount the sensor ONLY in accordance with manufacturers specifications. - Page 10 Model: 2852-DPM User Manual Rev: 2.1 RECOMMENDED TORQUE FLANGE SIZE (INCHES) (FT.LBS)* ½ - 1 ½ 2 – 4 6 – 8 12 – 24 NOTE: To ensure proper operation and electrical safety, make sure the 2852 enclosure and the PMC junction box are electrically grounded.
-
Page 11: Electrical Installation
Model: 2852-DPM User Manual Rev: 2.1 Electrical Installation Figure 1 – Electrical Installation Overview TB1/TB2 - Relay Output 2 SPDT relay, Dry, N.O. Contact 5A @ 250 VAC (Resistive) and N.C. Contact 3A @ 250VAC (Resistive), selectable failsafe or non-failsafe, selectable high or low acting alarm, programmable time delay: 0 –... -
Page 12: Input / Output Terminal Specification
Model: 2852-DPM User Manual Rev: 2.1 2.3.1 Input / Output Terminal Specification Input Terminals – Power Source Terminal Overvoltage Rated Voltage (V) Rated ___ HZ or Specified category Current/power Mains (A/W/VA) fluctuation 100-240V 150mA 50/60Hz 12 OR 24V 250mA ... -
Page 13: Glossary Of Symbols
Model: 2852-DPM User Manual Rev: 2.1 Glossary of Symbols Attention, consult accompanying documents Attention, veuillez consulter les documents ci-joints. Protective Earth Fuse Terre de protection Coupe-circuit; fusible Direct Current (DC) Normally open relay contacts Courant continu Contacts travail Normally closed relay contacts... -
Page 14: Startup And Calibration
The unit is pre-configured and tested at the factory. However, a quick field calibration is required after power up to tune the sensor to the installation and cable condition. See section 3.3 to calibrate the 2852-DPM . Menu Flow Chart Background Information The control setup, diagnostics, and calibration are accessed using the display and keypad on the controller. -
Page 15: Data Entry
Normal Screen 3.3.1 Site Calibration A factory pre-configuration and set-up has been defaulted into the 2852-DPM. As such, a user set-up is not required in the field. A basic calibration is only required. For the initial calibration, ensure that the pipe is full of liquid. For Liquid to Liquid applications, the highest di-electric liquid should be in the pipe during calibration. -
Page 16: Setup And Alarms
The factory default is 0 to provide an immediate and active response. 2852 Controller Alarms The two relays on the 2852-DPM operate together. The follow parameters are available as a common setting to the two relays: 1. Delay. Minimum time in seconds for an alarm to exist before the relays change to an alarm state. -
Page 17: 2852 Controller Network
Model: 2852-DPM User Manual Rev: 2.1 is that the alarm condition should match the Power Fail condition. The factory default is Yes for Failsafe. 2852 Controller Network The 2852 Controller may be monitored and calibrated via RS-485 protocol compatible digital communications. -
Page 18: 2800 Series Modbus Register Mapping
Model: 2852-DPM User Manual Rev: 2.1 4.3.2 2800 Series Modbus Register Mapping Zero No. of Based DESCRIPTION TYPE 40001 Serial Number float 40003 Hardware Rev / Software Rev byte 40004 Sensitivity / Mode byte 40005 Instrument Status 40006 Model / Modbus Address... -
Page 19: Maintenance
Model: 2852-DPM User Manual Rev: 2.1 MAINTENANCE There is no routine cleaning required for this controller. -
Page 20: Troubleshooting
5. Not sensitive to change Make sure that there is a liquid change at sensor location. Increase sensitivity by adjusting capacitance to a lower value (e.g. 0.5pF). ARJAY ENGINEERING TECHNICAL SUPPORT (800) 387-9487 +1 (905) 829-2418 www.arjayeng.com... -
Page 21: Flow Charts
Model: 2852-DPM User Manual Rev: 2.1 FLOW CHARTS... - Page 22 Model: 2852-DPM User Manual Rev: 2.1...
- Page 23 Model: 2852-DPM User Manual Rev: 2.1...
