- Page 1 RTI-12309 Getting Started RTI-12309 Getting Started Rear Transition Interface for Generic DIO/AO/AI with 8 IX Headers Contents Overview........................3 Installing the RTI-12309....................4 Connecting JR1...................... 5 RTI-12309 Pinout......................6...
-
Page 2: Overview
RTI-12309 Getting Started Overview This document describes the features of the RTI-12309. You can use the RTI-12309 to connect to any SLSC module supporting fully compatible rear I/O. The eight 10-pin Hirose ix Industrial (or equivalent) connectors provide access to up to 8 banks of signals for DIO, AI, or AO. -
Page 3: Installing The Rti-12309
The POWER LED should be off. If it is not off, do not proceed until it is off. Loosen the screws of the upper rear panel of the chassis. Position the RTI-12309 at the desired slot and insert the securing screws, but do not fully tighten them. -
Page 4: Connecting Jr1
RTI-12309 Getting Started Insert an SLSC module into the same slot as its corresponding RTI-12309 while firmly holding the RTI-12309 in place until the RTI-12309 is firmly connected to the module. Repeat steps 4 and 5 for all required RTIs. -
Page 5: Rti-12309 Pinout

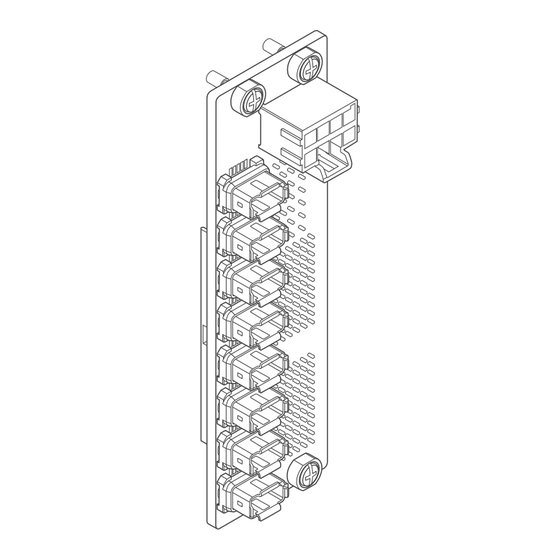

RTI-12309 Getting Started RTI-12309 Pinout Figure 2 : RTI-12309 Front and Rear Views Captive Screws x3 Bank 1 Bank 2 Bank 3 Bank 4 Bank 5 Bank 6 Bank 7 Bank 8 Figure 3 : JR1 Pinout Table 1 : JR1 Connector Descriptions... - Page 6 RTI-12309 Getting Started JR1 Signal XP3 Contact JR1 Pin Description Negative voltage/Return for signal 1 Positive voltage for signal 2 Negative voltage/Return for signal 2 Positive voltage for signal 3 Negative voltage/Return for signal 3 Positive voltage for signal 4 Negative voltage/Return for signal 4 Figure 4 : JR2 —...
- Page 7 (Digital or Analog) Analog) IO x.A x.0+ IO x.B x.0- IO x.C x.1+ IO x.D x.1- Contact NI for more information about standard pinouts. IO x.E x.2+ IO x.F x.2- IO x.G x.3+ IO x.H x.3- © National Instruments Corporation...
- Page 8 IO 8.x NOTE Column z pins are tied to GND A or B on the RTI-12309, and are designed to contact an optional lower shield on the SLSC module connector, if the shield is present. Column f pins are all no-connects (NC) on the RTI-12309, and are designed to contact the same upper shield on the SLSC module connector.
- Page 9 RTI-12309 Getting Started GND A (NC) GND A GND A GND A GND A GND A GND X (NC) GND A (NC) IO 3.A IO 3.B RSVD4 IO 3.C IO 3.D GND X (NC) GND A (NC) IO 3.E IO 3.F RSVD5 IO 3.G...
- Page 10 NI product. Refer to the Export Compliance Information at ni.com/legal/export-compliance for the NI global trade compliance policy and how to obtain relevant HTS codes, ECCNs, and other import/export data. NI MAKES NO EXPRESS OR IMPLIED WARRANTIES AS TO THE ACCURACY OF THE INFORMATION CONTAINED HEREIN AND SHALL NOT BE LIABLE FOR ANY ERRORS.
