- Page 1 GTL-3 IP40 Operation Manual GSME Test Device GTE Industrieelektronik GmbH | Helmholtzstr. 21, 38 – 40 41747 Viersen | Germany | +49 2162 3703-0 | info@gte.de...
- Page 2 Support hotline: +49 2162 3703-0 E-mail: support.adicos@gte.de © 2023 GTE Industrieelektronik GmbH – This document and all illustrations contained herein are protected by copyright and may not be copied and pasted, modified or distributed with- out the express consent of the manufacturer! Technical data is subject to change without notice! ADICOS®...

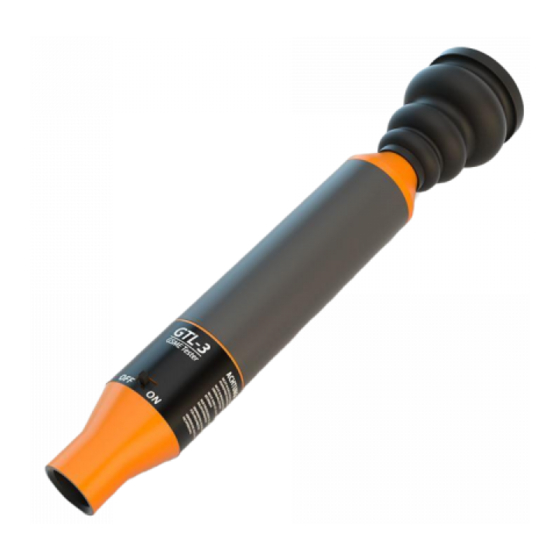

- Page 3 – and already in the incipient stage. The ADICOS GTL-3 test device is a test head for the test system solo of the company No Climb Products Ltd. (detectortesters.com) for all ADICOS detectors of type GSME.
-
Page 4: Table Of Contents
CONTENTS Content About this Manual ..........Objective. -
Page 5: About This Manual
ABOUT THIS MANUAL About this Manual Objective This manual describes the operation of the GSME test device ADICOS GTL-3. It is intended to be used only by properly qualified personnel (–› Chap. 2, Safety Instructions). Explanation of Symbols TThis manual follows a certain structure to make it easy to work with and understand. The following designations are used throughout. -
Page 6: Abbreviations
Store this manual near the device, in a place where it can easily be accessed when needed for reference. Applicable Documents Tips and recommendations Please refer to the operating instructions of the accessories from No Climb Products Ltd. (detectortesters.com). 430-2410-102 EN12 ADICOS GTL-3... -
Page 7: Safety Instructions
When using ADICOS detectors in potentially explosive atmospheres, follow the specifications of the ATEX operating directive. Intended Use The ADICOS GTL-3 tester can only be used in combination with the battery bar of the test system solo from No Climb Products Ltd. (detectortesters.com). -
Page 8: Personnel Qualification
Battery pole of the test system solo 430-2402-106 Quick battery charger of the test system solo 430-2403-105 Telescopic extension rod of the test system solo 430-2403-072 GTL-3 Glow filter 430-2003-073 GTL-3 Smouldering sticks *Manufacturer: No Climb Products Ltd. 430-2410-102 EN12 ADICOS GTL-3... -
Page 9: Scope Of Delivery
SCOPE OF DELIVERY Scope of Delivery Quantity Description Transport case GTL-3 housing with gas funnel GTL-3 fan unit Protection tube GTL-3 smouldering sticks (in tin can) GTL-3 glow filter (in tin can) Lighter ADICOS GTL-3 430-2410-102 EN12... -
Page 10: Structure And Function
STRUCTURE AND FUNCTION Structure and Function Overview GTL-3 Test Head 430-2410-102 EN12 ADICOS GTL-3... -
Page 11: Function
Operating switch Fan unit Function The ADICOS GTL-3 enables safe burning (smolder- ing) of the GTL-3 smoldering rod to generate a typical fire gas mixture. In combination with the solo accumulator rod of the company No Climb Products Ltd., these fire gases... -
Page 12: Preparation For Commissioning
PREPARATION FOR COMMISSIONING Preparation for Commissioning DANGER! Explosions and fires! The ADICOS GTL-3 tester works by means of controlled combustion, which can cause fires and explosions if used improperly. • Do not open the enclosure inside hazardous areas! Inserting the Embers Filter The GTL-3 glow filter prevents the leak of embers and hot ashes during operation. -
Page 13: Insert Smouldering Sticks
Tips and recommendations Before mounting the solo battery bar, check the state of charge of the bat- teries. • If necessary, recharge the batteries according to the manufacturer‘s in- structions (see operating manual Solo battery pole)! ADICOS GTL-3 430-2410-102 EN12... -
Page 14: Commissioning The Gtl-3
Commissioning DANGER! Explosions and fires! The ADICOS GTL-3 tester works with controlled combustion, which can cause fires and explosions if used improperly. • Do not open the enclosure within hazardous areas • Only operate the unit when it is approved for hot work! •... -
Page 15: Mounting The Test Head
Secure assembled enclosure parts with knurled screw Commissioning the Fan Unit The fan unit of the ADICOS GTL-3 starts working as soon as it is connected to the solo bat- tery bar and the operating switch is pressed. Mounting the battery pole... -
Page 16: Operation
Extinguish GTL-3 smouldering sticks Open the device Loosen knurled nut Remove glowing GTL-3 smouldering sticks carefully and extinguish with water Alternatively: Break off the glowing end of the GTL-3 smouldering rod generously and extinguish with water 430-2410-102 EN12 ADICOS GTL-3... -
Page 17: Maintenance
GTL-3 Clean housing If necessary, clean the outer surfaces of the GTL-3 housing with a damp cloth. NOTICE! Damages! Abrasive cleaning agents can damage the surface of the GTL-3 probe. • Do not use aggressive cleaning agents! ADICOS GTL-3 430-2410-102 EN12... -
Page 18: Storage
• Only insert the device into the case when the smolderinmg rod is extin- guished! Disposal Return the device to the manufacturer at the end of the time-of-use. The manufacturer guarantees that all com- ponents will be disposed of in an environmentally friendly manner. 430-2410-102 EN12 ADICOS GTL-3... -
Page 19: 10 Technical Data
