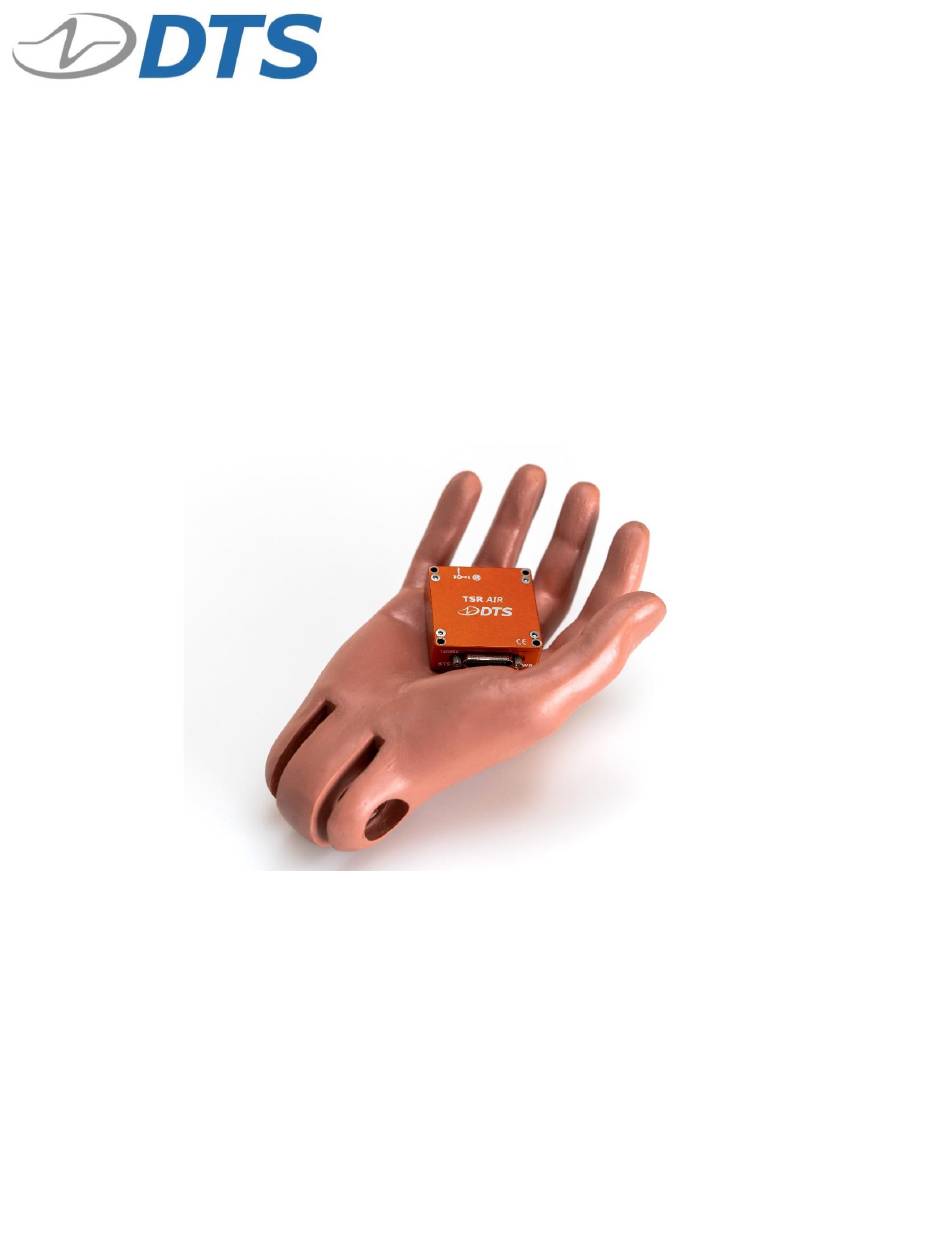

- Page 1 TSR AIR User’s Manual March 2023 13000-60401-MAN (Rev. 1) © Diversified Technical Systems, Inc. All Rights Reserved.
-
Page 2: Table Of Contents
TSR AIR User’s Manual March 2023 Table of Contents DTS Support ........................4 Introducing the TSR AIR ....................5 Embedded Sensors ......................5 Sensor Sample Rates ...................... 5 Sensor Bandwidths ......................6 Sensor Ranges ........................ 6 Low G Acceleration ...................... 6 High G Acceleration ..................... - Page 3 TSR AIR User’s Manual March 2023 Start Record and Event Initiation ................... 12 Appendix A: Hardware Specifications ................13 Mechanical Specifications, Connector Information and Pin Assignments ...... 13 Ethernet Chaining ......................14 Accessories/Support Equipment ..................14 Appendix B: Hardware Configuration Specifications ..........15 Using the SLICE Network Configuration Utility ..............
-
Page 4: Dts Support
DTS has support engineers worldwide with extensive product knowledge and crash test experience to help via telephone, e-mail or on-site visits. The best way to contact a DTS support engineer is to submit a request through the DTS Help Center portal (support.dtsweb.com). -
Page 5: Introducing The Tsr Air
The primary use for the TSR AIR is to collect data in various scenarios while mounted to the interior or exterior of a test article. Captured events can be started by crossing sensor thresholds, or by an external trigger. -
Page 6: Sensor Bandwidths
TSR AIR system sample rate. For example, with the TSR AIR set to sample at 10,000 sps, the low g sensor will have a bandwidth of 1 kHz, the high g sensor will have a bandwidth of 640 Hz, and the ARS will have a bandwidth of 178 Hz. -
Page 7: Power Management
(~15 s after sufficient power and ON signal is applied). (Note network congestion may slow IP address acquisition.) Power Management A good power source is of paramount importance. The TSR AIR should be powered from a high-quality power supply. Input Voltage... -
Page 8: Status (Sts) Indicator
TSR AIR User’s Manual March 2023 Status (STS) Indicator Result Power up Communicating with PC Armed Unit received Event Idle -or- Armed without input power • At power up, the LED cycles from red to green to blue followed immediately by the power LED boot-up sequence. -
Page 9: Data Memory Size
With 8 GB for 13000-60401 and 16 GB for 13000-60404 of flash memory available for data storage, the TSR AIR can record ~277 minutes and ~555 minutes of data, respectively, at the maximum sampling rate (12 channels at 20,000 sps). Since the recording capacity is very large, it is generally best to limit sampling rates and event durations to the minimum necessary to avoid large and cumbersome data files. -
Page 10: Basic Care And Handling
<1 ohm. Thermal Considerations The TSR AIR is a low power device, and it is unlikely that self-heating will be an issue in real- world testing if proper mounting methods are observed. Never mount the unit to a thermally non-conductive surface like wood or plastic. -
Page 11: Software
The discussion below provides a general introduction to data collection. Please see the software manual for a detailed discussion and implementation specifics. The TSR AIR is a standalone data logger. Once the system is armed, the PC can be disconnected if desired. After receiving an event signal, level trigger, or scheduled/interval event, the TSR AIR autonomously collects data, storing it to flash memory with no user interaction. -
Page 12: Scheduled Mode
TSR AIR User’s Manual March 2023 Scheduled Mode Using this mode, the user can program the TSR AIR to record at a scheduled time (UTC) or interval (in minutes). Pre-event data is not available when using this mode. NOTE: An event or trigger signal applied anywhere in the TSR AIR chain is distributed throughout the chain. -
Page 13: Appendix A: Hardware Specifications
All copyright, patent, and ownership rights are retained. This information shall not be disclosed, Manufacture/fabricate to meet the EU RoHS Directive UPDATED ARTWORK 2022-05-12 AH reproduced in whole or in part, or used for manufacture without prior written consent from DTS. 2011/65/EU and RoHS Annex II phthalates (15,00 [0.591]) 0,00 0.000... -
Page 14: Ethernet Chaining
TSR AIR User’s Manual March 2023 Ethernet Chaining To share Ethernet communications, chain TSR AIR units together using the methodology in the table below. TSR AIR #1 TSR AIR #2 TSR AIR #3 Function Function Function TX_2_P RX_1_P TX_2_N RX_1_N... -
Page 15: Appendix B: Hardware Configuration Specifications
TSR AIR User’s Manual March 2023 Appendix B: Hardware Configuration Specifications The TSR AIR is typically delivered with a default IP address as follows: 192.168.4.xx where xx is based on the last two digits of the S/N; for example: IP address S/N TA0047 = 192.168.4.47... - Page 16 LED to flash. Note: Clicking on 3. Select the TSR AIR device from the list. The device Settings are shown at the bottom of the window. The current IP address may or may not match the fallback IP address, depending on whether DHCP is selected.
- Page 17 TSR AIR User’s Manual March 2023 4. To enable DHCP, select the check box then select . Proceed to step 7. 5. To disable DHCP and manually enter IP address and other information, unselect the check box. 6. Enter the new parameters and select for each item updated.
- Page 19 TSR AIR User’s Manual March 2023 Revision History Date Description 13 Mar 2023 C. Balogh Initial DRAFT. 21 Mar 2023 T. Ralston Updated battery table to include the current draw while armed. support.dtsweb.com 13000-60401-MAN (Rev. 1)
