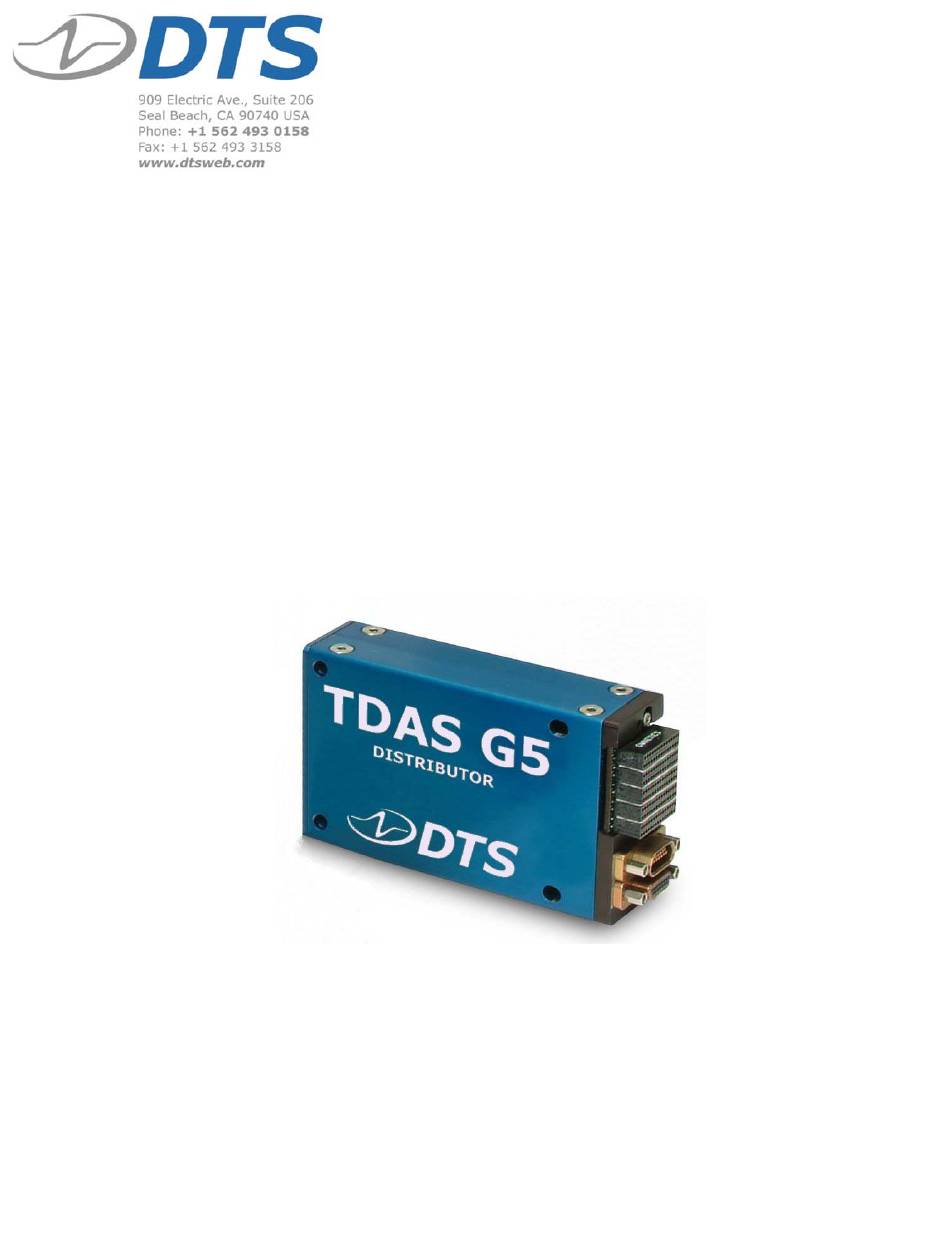

- Page 1 TDAS G5-DB Hardware User’s Manual July 2003 Rev. 1A...
-
Page 2: Table Of Contents
Table of Contents DTS Support ...................... 3 Introducing the TDAS G5-DB ................4 Summary of TDAS G5-DB Features ..............4 Basic Care and Handling .................. 4 Shock Rating.........................5 Power Connections and Considerations ............5 G5-DB Interface Connectors & Cables .................5 Appendix A: G5-DB Connector Pinouts ............ -
Page 3: Dts Support
The best way to get a hold of a DTS support engineer is to email: support@dtsweb.com This email is immediately sent to all DTS support engineers and is the fastest way to get a reply to your request. DTS also offers service contracts that include system calibration, maintenance and on-site service. -
Page 4: Introducing The Tdas G5-Db
• Isolated trigger input and status output. • Connect up to 5 G5 Modules. Basic Care and Handling DTS systems are designed to be as simple to operate as possible, but it is important that you carefully follow recommended procedures in order to ensure maximum reliability. -
Page 5: Shock Rating
WARNING: Electronic equipment dropped from desk height onto a concrete floor may experience as much as 10,000 Gs. Under these conditions, damage to the exterior and/or interior of the unit is likely. Shock Rating All TDAS systems are rated for and tested to greater than 120 Gs, 12 mS duration, in all axes. - Page 6 Do not apply external voltages to the event, communication, fault or control output and inputs—this could result in damage to the unit. Please contact DTS for assistance in properly connecting interface wiring to TDAS modules. DTS offers several interface devices that are specifically...
-
Page 7: Appendix A: G5-Db Connector Pinouts
Appendix A: G5-DB Connector Pinouts External Local G5 Module Function Function Connectors Connector Connector G5 Module Connectors. + Rx armed status out Function: RS-232 Tx - Rx Function: RS-232 Rx armed status in Ethernet (Used for factory setup) + Tx start record - Tx power on... - Page 8 Mating Connector 1 for G5 Module...
- Page 9 Mating Connector 2 for G5 Module...
- Page 10 External Function and Local Function 15-pin connectors PIN # External Function Local Function Note Note. Metal Shell Connector Connector wired to the chassis + Main Power Input inside the In- + Event + Event Fully Isolated Input Dummy Hub - Event - Event (Contact Closure) Start Record...
- Page 11 14 Pin Lemo Connector on G5-DB to Dummy Exit Cable Lemo Pin # 20 Feet 9507 – Color Code Function Main Power, +12 VDC Main Power, +12 VDC BLACK Main GND BROWN BLACK Ethernet +Rx GREEN Ethernet –Rx BLACK Ethernet +Tx ORANGE Ethernet –Tx BLACK...
