KAL455 Manual Call Point Installation Sheet
EN FR
1
EN: Installation Sheet
Description

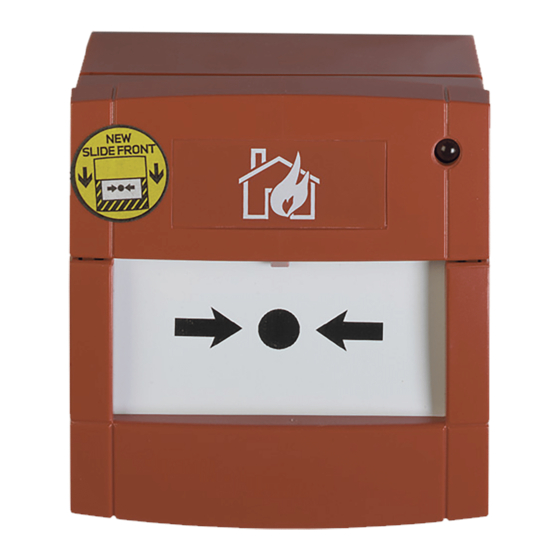

This document includes installation information for KAL455
manual call points. These manual call points are designed for
use in Kilsen addressable fire alarm systems and include
models for indoor and outdoor use.
Installation
Caution:
This product must be installed by qualified personnel
adhering to the CEN/TS 54-14 standard and any other
applicable local authority laws.
Electrical connections

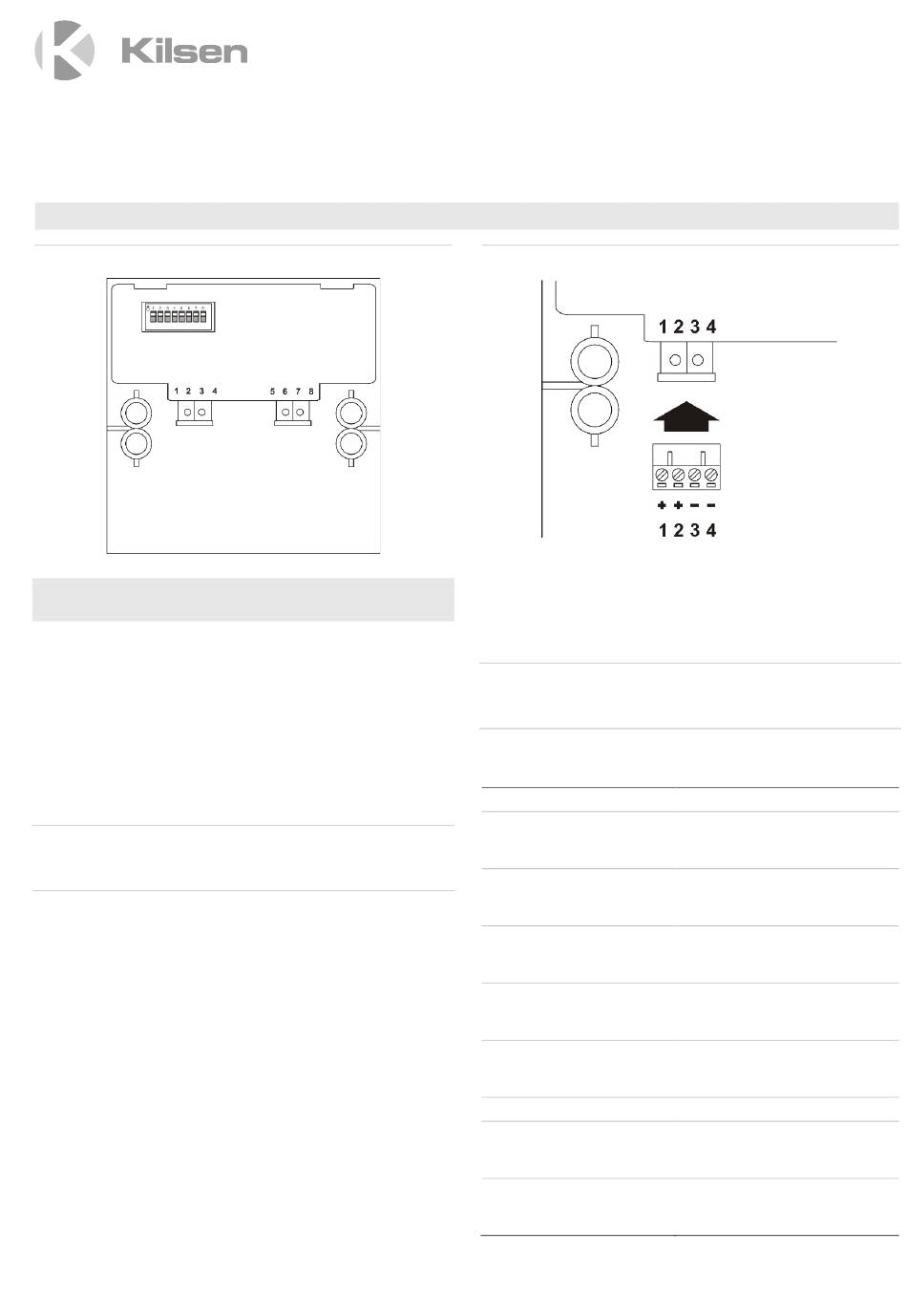

Connect to the KAL455 connection block (Figure
1. Line in (positive)
2. Line out (positive)
3. Line in (negative)
4. Line out (negative)
Addressing
Use the DIP switch (Figure 1) to allocate a device address
from 128 to 252 (see page 4).
© 2021 Carrier. All rights reserved.
2
Maintenance
Basic maintenance consists of a yearly inspection. Do not
modify internal wiring or circuitry.
Caution:
flexi, press the element after installation to confirm the
operation.
Specifications
Voltage
Current
Standby
Alarm
Cable size
Minimum
Maximum
IP rating
2
) as follows:
KAL455
KAL455E
Operating temperature
KAL455
KAL455E
Storage temperature
KAL455
KAL455E
Relative humidity
Dimensions (W x H x D)
KAL455
KAL455E
Weight
KAL455
KAL455E
[1] Excluding surface mount.
1 / 4
When changing the resettable element from glass to
22 to 35 VDC
max. 250 ųA
max. 2.5 mA
0.8 mm
2.5 mm
IP24D
IP67
−10°C to +55°C
−25°C to +70°C
−10°C to +70°C
−25°C to +70°C
10% to 95% noncondensing
89 x 93 x 27.5 mm [1]
97.5 x 93 x 27.5 mm [1]
180 g
350 g
P/N 20-8030-501-1000-09 • ISS 03NOV21
2
2
D1115-5
