KAL455 Manual Call Point Installation Sheet
EN RU
1
EN: Installation Sheet
Description
This document includes installation information for UTC Fire &
Security KAL455 manual call points. These manual call points
are designed for use in UTC Fire & Security Kilsen analogue
addressable fire alarm systems and include models for indoor
and outdoor use.
Installation
Caution: This product must be installed by qualified personnel
adhering to the CEN/TS 54-14 standard and any other
applicable local authority laws.
Electrical connections

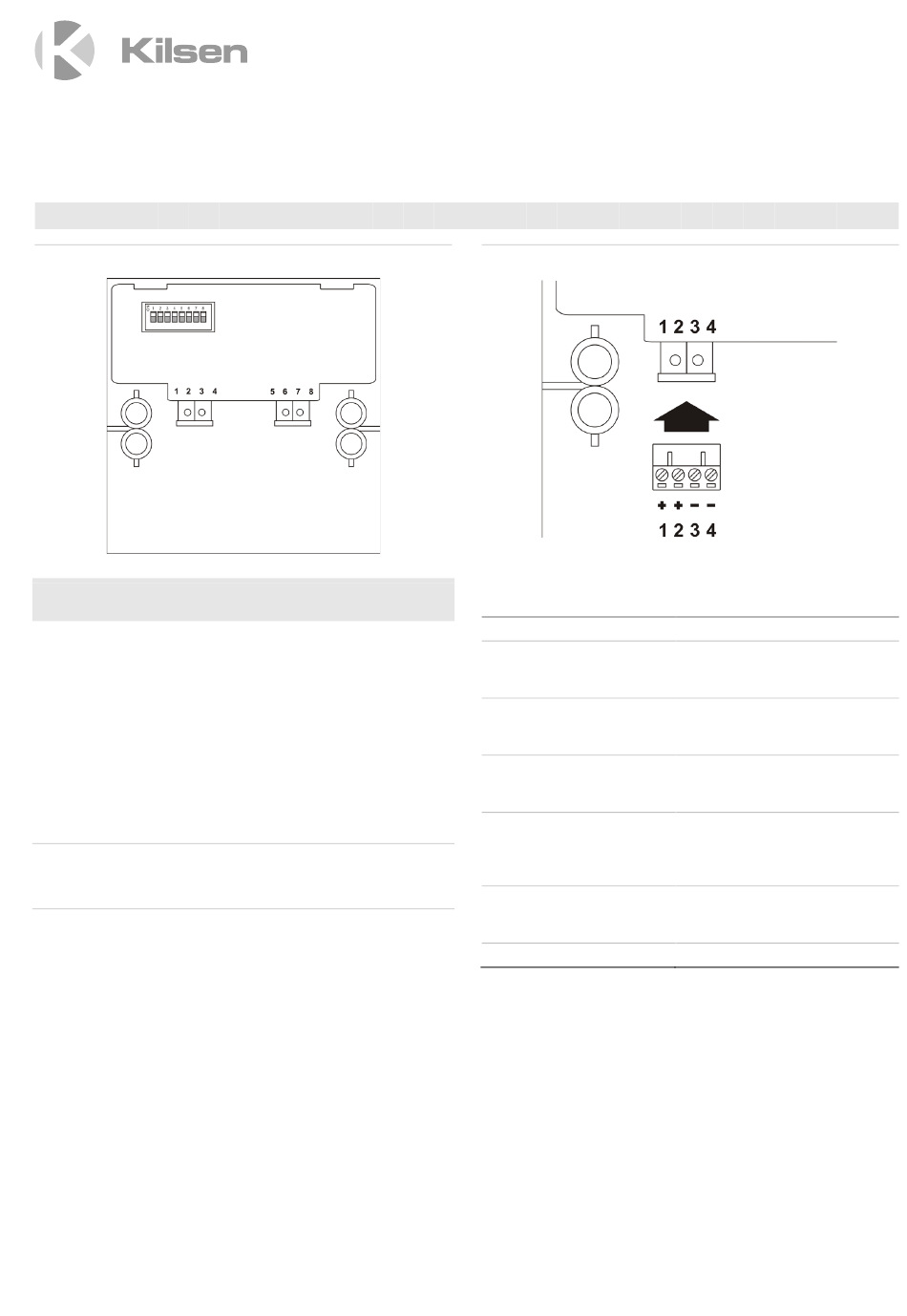

Connect to the KAL455 connection block (Figure
1. Line in (positive)
2. Line out (positive)
3. Line in (negative)
4. Line out (negative)
Addressing
Use the DIP switch (Figure 1) to allocate a device address
from 128 to 252 (see page 4).
Maintenance
Basic maintenance consists of a yearly inspection. Do not
modify internal wiring or circuitry.
© 2013 UTC Fire & Security. All rights reserved.
2

Specifications

Voltage
Current
Standby
Alarm
Cable size
Minimum
Maximum
IP rating
KAL455, KAL455-18
KAL455E, KAL455E-18
Operating environment
Operating temperature
Storage temperature
Relative humidity
Dimensions (W x H x D)
KAL455, KAL455-18
KAL455E, KAL455E-18
Weight
2
) as follows:
[1] Excluding surface mount.
1 / 4
22 to 35 VDC
max. 250 ųA
max. 2.5 mA
2
0.8 mm
2
2.5 mm
IP24D
IP67
−10°C to +70°C
−20°C to +70°C
10% to 95% noncondensing
89 x 93 x 27.5 mm [1]
97.5 x 93 x 27.5 mm [1]
187 g
P/N 55300837 • REV 05 • ISS 27MAR13
