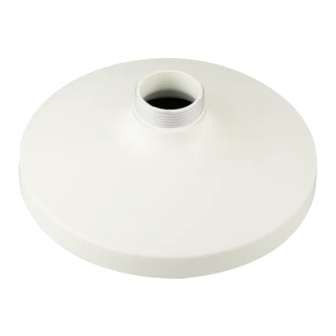

Hanging Mount Adaptor
SBP-276HM/SBP-276HMW
Package
HANGING MOUNT ADAPTOR
Product Overview
SBP-276HM/SBP-276HMW is an adaptor used to install an PNM-9000VQ/
ENG
PNM-9084QZ camera in a Wall Mount Adaptor (SBP-300WM/SBP-300WMW),
Ceiling Mount Adaptor (SBP-300CM/SBP-300CMW), or Parapet Mount
Adaptor(SBP-300LM).
SBP-276HM/SBP-276HMW는 PNM-9000VQ/PNM-9084QZ 카메라를 Wall
KOR
Mount Adaptor (SBP-300WM/SBP-300WMW), Ceiling Mount Adaptor
(SBP-300CM/SBP-300CMW), Parapet Mount Adaptor (SBP-300LM)에 설치
시 사용하는 Adaptor 입니다.
Installation Precautions
`
ENG
`
`
KOR
`
™ Applicable model
SCREW 4EA
Color
Applicable
model
Make sure that the installation place can endure at least 4 times of the total
weight of the Hanging Mount Adaptor, Camera, and Wall/Ceiling/Parapet
Mount Adaptor.
The Hanging Mount Adaptor can be also connected to 1 ½" PF screw-thread
pipe as well as to the Wall/Ceiling/Parapet Mount Adaptor.
설치장소가 Hanging Mount Adaptor, Camera, Wall/Ceiling/Parapet Mount
Adaptor의 총중량의 4배이상을 충분히 견딜 수 있는 곳에 설치하세요.
Hanging Mount Adaptor는 Wall/Ceiling/Parapet Mount Adaptor 외에도
1 ½" PF 나사산이 가공된 "파이프(Pipe)"에 연결하여 사용 가능합니다.
SBP-276HM SBP-276HMW
Ivory White
PNM-9000VQ PNM-9084QZ
Installation
1 Insert the Hanging Mount Adaptor to 1 ½" PF screw-thread (female) pipe or
to the Wall/Ceiling/Parapet Mount Adaptor (SBP-300WM/SBP-300WMW or
SBP-300CM/300CMW/300LM) and turn it clockwise to secure to the Pipe or
Adaptor.
J
` Make sure you fix the Pipe or Adaptor so that it reaches to the end of the 1 ½" PF screw thread
on the Hanging Mount Adaptor. If not secured tightly, the Hanging Mount Adaptor may loosen
from the Pipe or Adaptor, causing physical damage or malfunction.
(Make sure you check the connection between two components before proceeding with the
next step.)
