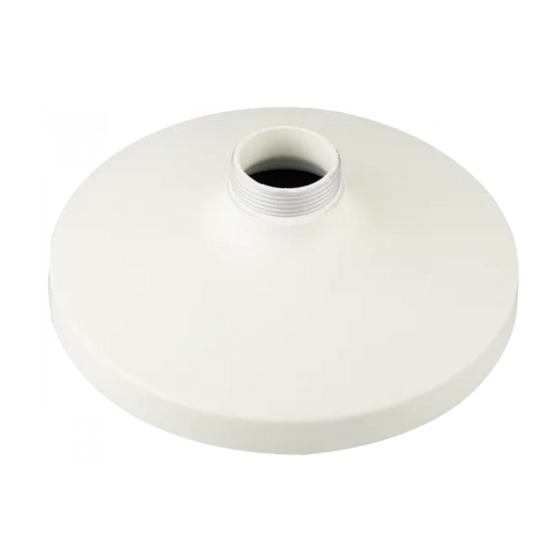

Hanging Mount Adaptor
Package
HANGING MOUNT ADAPTOR
Product Overview
SBP-276HM/W is an adaptor used to install an
ENG
PNM-9000VQ/9030V/9002VQ camera in a Wall Mount Adaptor
(SBP-300WM/W), Ceiling Mount Adaptor (SBP-300CM/W), or Parapet
Mount Adaptor(SBP-300LM/W).
SBP-276HM / W
SCREW 4EA
Installation Precautions
Make sure that the installation place can endure at least 4 times of the total weight of
the Hanging Mount Adaptor, Camera, and Wall/Ceiling/Parapet Mount Adaptor.
The Hanging Mount Adaptor can be also connected to 1.5" PF screw-thread pipe as
well as to the Wall/Ceiling/Parapet Mount Adaptor.
Advertisement
Table of Contents
Related Manuals for Hanwha Techwin SBP-276HM
Summary of Contents for Hanwha Techwin SBP-276HM
- Page 1 Product Overview Installation Precautions SBP-276HM/W is an adaptor used to install an Make sure that the installation place can endure at least 4 times of the total weight of PNM-9000VQ/9030V/9002VQ camera in a Wall Mount Adaptor the Hanging Mount Adaptor, Camera, and Wall/Ceiling/Parapet Mount Adaptor.
- Page 2 Installation Product Specifications • Weight : 830g 1 Insert the Hanging Mount Adaptor to 1-1/2”PF screw-thread (female) pipe or 2 Install the Hanging Mount Adaptor onto the camera. • Material : Aluminum to the Wall/Ceiling/Parapet Mount Adaptor (SBP-300WM/W or 300CM/W Make sure you insert the Adaptor in the right direction.
