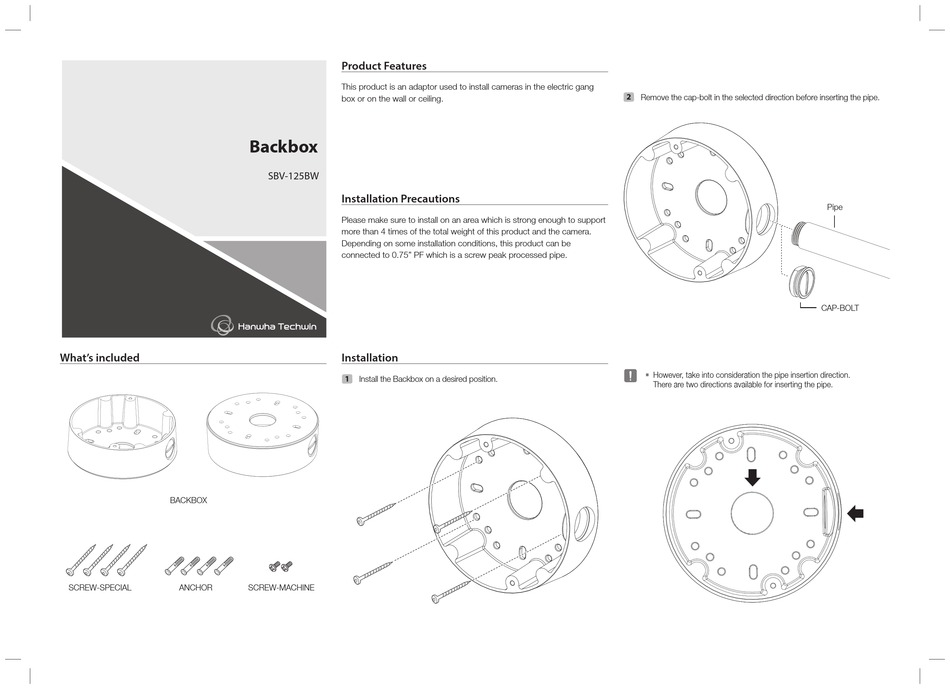

What's included
BACKBOX
SCREW-SPECIAL
ANCHOR

Product Features

This product is an adaptor used to install cameras in the electric gang
box or on the wall or ceiling.
Backbox
SBV-125BW

Installation Precautions

Please make sure to install on an area which is strong enough to support
more than 4 times of the total weight of this product and the camera.
Depending on some installation conditions, this product can be
connected to 0.75" PF which is a screw peak processed pipe.

Installation

1
Install the Backbox on a desired position.
SCREW-MACHINE
2
Remove the cap-bolt in the selected direction before inserting the pipe.
J
However, take into consideration the pipe insertion direction.
`
There are two directions available for inserting the pipe.
Pipe
CAP-BOLT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Backbox SBV-125BW and is the answer not in the manual?

Questions and answers

Summary of Contents for Hanwha Techwin Backbox SBV-125BW

  • Page 1 Product Features This product is an adaptor used to install cameras in the electric gang Remove the cap-bolt in the selected direction before inserting the pipe. box or on the wall or ceiling. Backbox SBV-125BW Installation Precautions Pipe Please make sure to install on an area which is strong enough to support more than 4 times of the total weight of this product and the camera.
  • Page 2 Product Overview mm[inch] Attach the case-bottom to the Backbox. Ø 30 [1.18] Specification Product Name SBV-125BW QNE-8011R/8021R Supported product * models can be added without notice Color / Material White / Aluminum RAL Code RAL9003 Product dimensions Ø128.95 x 40 mm (Ø5.08 x 1.57"), / weight 345 g (0.76 Ib) PT01-005441A...
