Summary of Contents for Royalcraft MAYFAIR

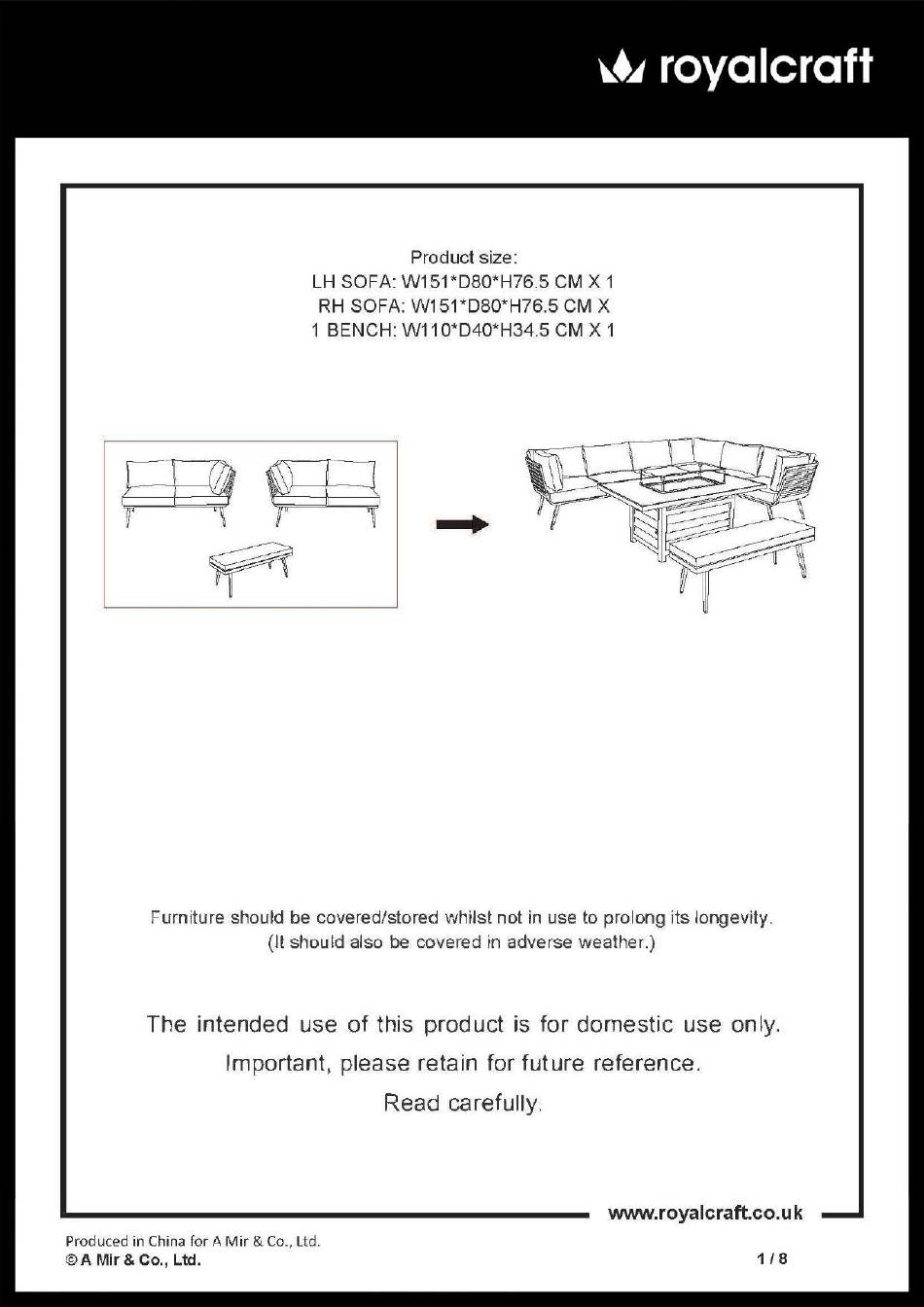

- Page 2 MAYFAIR - LH & RH SOFA, 1PC BENCH Assembly Instructions Before you start Warnings IMPORTANT, RETAIN FOR FUTURE REFERENCE Cushions should be cleaned following the care instruction on the label. READ CAREFULLY If the set is stored outside then we recommend that cushions are See enclosed instructions for assembly, safety and care information.
- Page 3 MAYFAIR - LH & RH SOFA, 1PC BENCH Assembly Instructions Member Parts Part No. Diagram Name Qty. 1 PC LH SOFA 1 PC RH SOFA 1 PC BENCH Velcro Band Assembly In order to better use the products, the sofa parts are suggested to be connected by Velcro Band with other parts (in other cartons).
- Page 4 MAYFAIR - LH & RH SOFA, 1PC BENCH Assembly Instructions Components, fixtures & fittings (not actual size) Parts List Part Part Diagram Qty. Diagram Qty. 1 PC 1 PC LH Sofa Seat RH Sofa Seat 8 PCS 1 PC Sofa Leg Bench Seat 30*30*1.6T*H278mm...
- Page 5 MAYFAIR - LH & RH SOFA, 1PC BENCH Assembly Instructions 36 PCS W20 Bolt Head Cap M6*20mm Bolt 36 PCS Flat Washer Step by step assembly instructions Part 1: LH Sofa Step One Open the packaging, with the help of another...
- Page 6 MAYFAIR - LH & RH SOFA, 1PC BENCH Assembly Instructions Step Two With the help of another person, stand the Sofa. Level it by adjustable feet screws. Place the Sofa Seat Cushion (F), Sofa Backrest Cushions (G) and Sofa Side Cushion (H) onto the Sofa Seat (A).
- Page 7 MAYFAIR - LH & RH SOFA, 1PC BENCH Assembly Instructions Step Two With the help of another person, stand the Sofa. Level it by adjustable feet screws. Place the Sofa Seat Cushion (F), Sofa Backrest Cushions (G) and Sofa Side Cushion (H) onto the Sofa Seat (B).
- Page 8 MAYFAIR - LH & RH SOFA, 1PC BENCH Assembly Instructions Step Two With the help of another person, stand the Bench. Level it by adjustable feet screws. Place the Bench Seat Cushion (I) onto the Bench Seat (D). Your Bench is now ready for use.
