Kvaser PCIEcan 1xCAN v3 User's Guide
Copyright 2022-2022 Kvaser AB, Mölndal, Sweden
https://www.kvaser.com
th
Printed Monday 28
November, 2022
We believe that the information contained herein was accurate in all respects at the time of printing.
Kvaser AB cannot, however, assume any responsibility for errors or omissions in this text. Also note
that the information in this document is subject to change without notice and should not be construed
as a commitment by Kvaser AB.
Advertisement
Table of Contents
Related Manuals for Kvaser PCIEcan 1xCAN v3
Summary of Contents for Kvaser PCIEcan 1xCAN v3
- Page 1 We believe that the information contained herein was accurate in all respects at the time of printing. Kvaser AB cannot, however, assume any responsibility for errors or omissions in this text. Also note that the information in this document is subject to change without notice and should not be construed...
- Page 2 Kvaser PCIEcan 1xCAN v3 User’s Guide 2 (17) (This page is intentionally left blank.) Kvaser AB, Mölndal, Sweden — www.kvaser.com...
-
Page 3: Table Of Contents
2 Introduction 2.1 Welcome to Kvaser PCIEcan 1xCAN v3 ....2.2 Major features ...... -
Page 4: About This Manual
Kvaser PCIEcan 1xCAN v3 User’s Guide 4 (17) 1 About this manual This manual is intended for Kvaser PCIEcan 1xCAN v3 users. This document contains a description of the hardware’s properties and general instructions for connecting the device to a computer. -
Page 5: Introduction

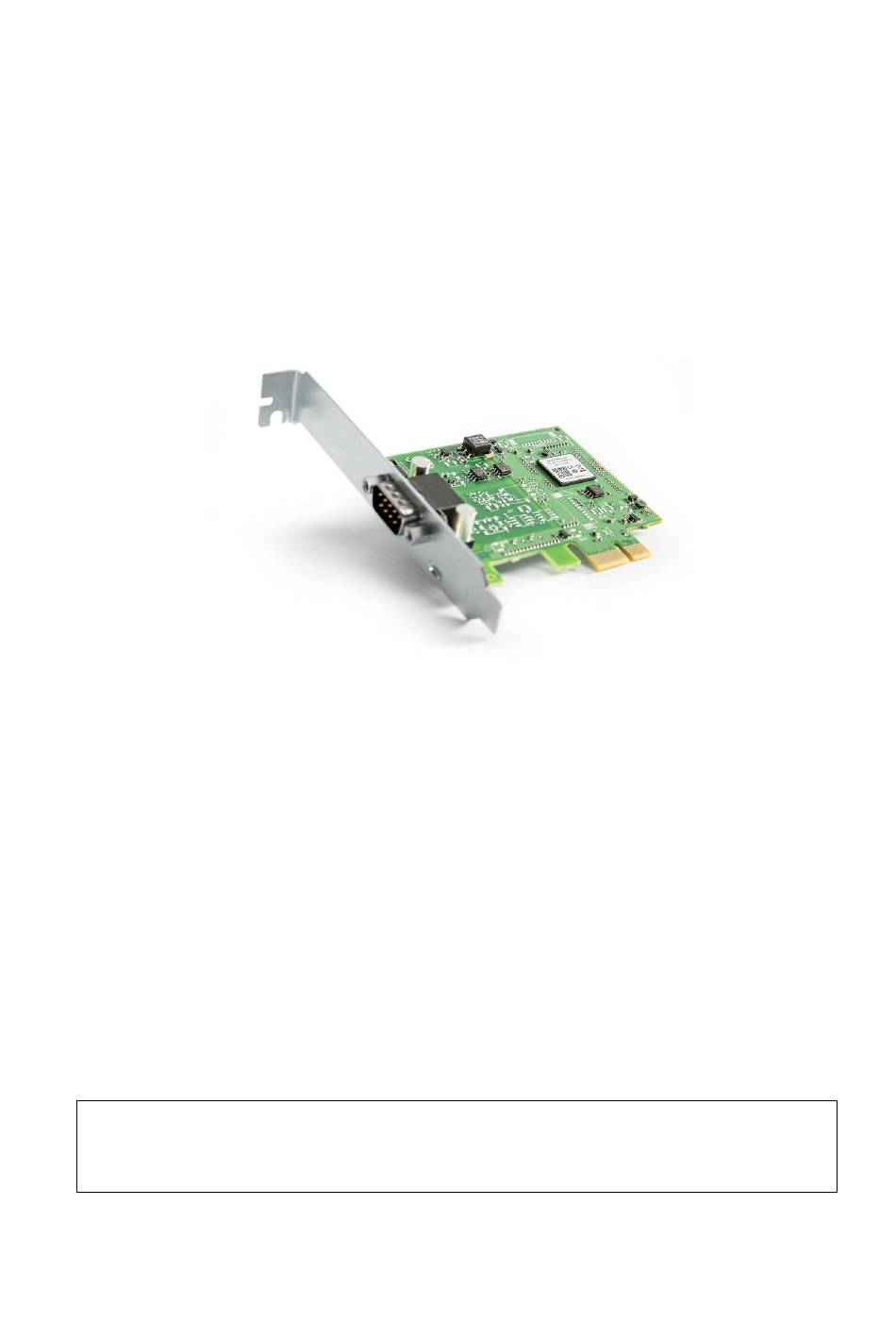

2.1 Welcome to Kvaser PCIEcan 1xCAN v3 Figure 1: Kvaser PCIEcan 1xCAN v3 Kvaser PCIEcan 1xCAN v3 is a small, yet advanced, real time CAN interface that handles transmission and reception of standard and extended CAN messages on the bus with a high time stamp precision. The Kvaser PCIEcan 1xCAN v3 is compatible with applications that use Kvaser‘s CANlib. -
Page 6: Major Features
Simultaneous operation of multiple devices. Low profile board, includes low and high profile brackets. 2.3 Interface Kvaser PCIEcan 1xCAN v3 provides a CAN bus interface through a standard PCI Express x1 interface. 2.4 Additional software and documentation The Kvaser CANlib SDK includes everything you need in order to develop software applications interacting with Kvaser CAN and LIN hardware. -
Page 7: Kvaser Pciecan 1Xcan V3 Hardware
In this section you can read more about the CAN channels, power supply and LED indicators. 3.1 Hardware installation The Kvaser PCIEcan 1xCAN v3 may be inserted in any free PCI Express slot on the host computer. You do need to switch the power off before inserting or removing the device. -
Page 8: Troubleshooting
Figure 3: LED on the Kvaser PCIEcan 1xCAN v3. 3.5 Troubleshooting Use “Kvaser Device Guide” in the Control Panel to verify that the computer can communicate with the Kvaser PCIEcan 1xCAN v3. If the firmware version shown is all zeros, there are communication problems. -
Page 9: Appendices
Kvaser PCIEcan 1xCAN v3 User’s Guide 9 (17) 4 Appendices In this section you will find technical information about the Kvaser PCIEcan 1xCAN v3 and its connectors. 4.1 Technical data In Table 2 below you will find the technical specifications of Kvaser PCIEcan 1xCAN v3. -
Page 10: Can Bus Termination
Every CAN bus must be terminated with a 120 Ohm resistor at each end of the bus. The Kvaser PCIEcan 1xCAN v3 does not contain any CAN bus termination, because their inclusion could cause severe disturbance in a system which is already correctly terminated. - Page 11 To check the current firmware version, open “Kvaser Device Guide” which can be found in the Control Panel. Select “Kvaser PCIEcan 1xCAN v3” in the tree view to the left, and click on the channel. The firmware revision information now appears in the right half of the window.
-
Page 12: Disposal And Recycling Information
Kvaser PCIEcan 1xCAN v3 User’s Guide 12 (17) 5 Disposal and Recycling Information When this product reaches its end of life, please dispose of it according to your local environmental laws and guidelines. For information about Kvaser’s recycling programs, visit: https://www.kvaser.com/en/kvaser/recycling-policy.html... -
Page 13: Legal Acknowledgements
KVASER AB’S WARRANTY SHALL BE LIMITED TO THE CORRECTION OF DEFECTS, AND KVASER AB HEREBY EXPRESSLY DISCLAIMS ANY LIABILITY OVER AND ABOVE THE REFUNDING OF THE PRICE PAID FOR THIS DEVICE, SINCE KVASER AB DOES NOT HAVE ANY INFLUENCE ON THE IMPLEMENTATIONS OF THE HIGHER-LEVEL SYSTEM, WHICH MAY BE DEFECTIVE. -
Page 14: Eu Regulatory Compliance
Kvaser PCIEcan 1xCAN v3 User’s Guide 14 (17) 6.2 EU Regulatory Compliance EU Declaration of Conformity (DoC) Kvaser AB M¨ o lndal Company Name: City: Aminogatan 25 +46 31 886344 Postal address: Telephone number: 431 53 sales@kvaser.com Postcode: E-mail address:... -
Page 15: Fcc Regulatory Compliance
Kvaser PCIEcan 1xCAN v3 User’s Guide 15 (17) 6.3 FCC Regulatory Compliance Federal Communications Commission (FCC) Compliance Information Statement IDENTIFICATION OBJECT: Product: Kvaser PCIEcan 1xCAN v3 Type: 73-30130-01433-6 APPLICABLE COMPLIANCE STATEMENTS: CFR Title 47 Part 15 15.107, 15.109 This device complies with part 15 of the FCC Rules. -
Page 16: Patents, Copyrights And Trademarks
MagiSync is a trademark of Kvaser AB. DeviceNet is a trademark of Open DeviceNet Vendor Association, Inc. NMEA 2000 is the registered trademark of the National Marine Electronics Association, Inc. For information about Kvaser related CAN patents, see www.kvaser.com/patent. Kvaser AB, Mölndal, Sweden — www.kvaser.com... -
Page 17: Document Revision History
Kvaser PCIEcan 1xCAN v3 User’s Guide 17 (17) 7 Document Revision History Version history for document UG_98257_pciecan_1xcan_v3: Revision Date Changes 2022-11-16 Initial version Kvaser AB, Mölndal, Sweden — www.kvaser.com...
