Kvaser PCIEcan User's Guide
Copyright 2005-2011 Kvaser AB, Mölndal, Sweden
http://www.kvaser.com
Last updated Wednesday, 05 September 2012
We believe that the information contained herein was accurate in all respects at the time of printing. Kvaser AB cannot, however, assume
any responsibility for errors or omissions in this text. Also note that the information in this document is subject to change without notice and
should not be construed as a commitment by Kvaser AB.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kvaser PCIEcan HS
Summary of Contents for Kvaser PCIEcan HS
-
Page 1: Kvaser Pciecan User's Guide
Last updated Wednesday, 05 September 2012 We believe that the information contained herein was accurate in all respects at the time of printing. Kvaser AB cannot, however, assume any responsibility for errors or omissions in this text. Also note that the information in this document is subject to change without notice and... - Page 2 Kvaser PCIEcan User's Guide 2(17) (This page is intentionally left blank.) Kvaser AB, Mölndal, Sweden — www.kvaser.com...
-
Page 3: Table Of Contents
References ........................15 Legal Information ......................16 10.1 Electromagnetic compability .................. 16 10.2 RoHS directive ....................... 16 10.3 About this manual ....................16 10.4 Trademarks and patents ..................16 Document revision history ..................17 Kvaser AB, Mölndal, Sweden — www.kvaser.com... -
Page 4: Introduction

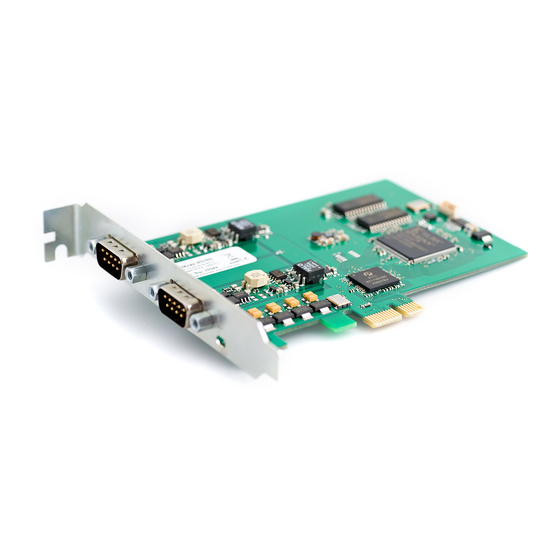

Two channel CAN interface 2.2 General Description The Kvaser PCIEcan board connects up to two CAN networks to a PC using the PCI Express X1 bus. The Kvaser PCIEcan board is designed to fit the PCI Express bus systems and provides the user with excellent software support through Kvaser CANlib. -
Page 5: Technical Specifications
X1 (fits in X1, X4, X8 and X16) CAN bus connector 1 x 9-pin DSUB, male (See chapter 5.3) Power consumption PCIEcan HS: max 200 mA @ 3.3 V Operating systems Windows XP or later. (For other operating systems, see Kvaser web or contact Kvaser support.) - Page 6 X1 (fits in X1, X4, X8 and X16) CAN bus connector 2 x 9-pin DSUB, male (See chapter 5.3) Power consumption PCIEcan HS: max 300 mA @ 3.3 V CAN Controllers and Oscillator Frequency CAN controllers: 2 x SJA1000 CAN Clock frequency: 16 MHz Option –...
-
Page 7: Schematics
Kvaser PCIEcan User's Guide 7(17) 4 Schematics A block diagram for all product versions of the Kvaser PCIEcan boards is shown in Figure 1. Isolation CAN Controller Driver SJA1000 DC/DC Converter CAN 1 – PCIEcan HS and HS/HS PCI Bridge Xilinx FPGA CAN 2 (equal to CAN 1) –... -
Page 8: The Pciecan Hardware
For quick and easy installation, all Kvaser PCIEcan boards are plug-and-play boards. 5.1 The Isolated CAN Driver KVASER’s PCIEcan cards for CAN systems feature up to two CAN controllers. Each CAN- driver SN65HVD251D is isolated both from the CAN controller and all other CAN drivers. The CAN driver will get the necessary power from the PCI Express bus via an isolated DC/DC convert. -
Page 9: D-Sub Connector
The D-SUB connector(s) are mounted on a bracket and connects to the metallic housing of the PC. The pinning of the 9-pin DSUB connector is listed in Table 3. Table 3 9-pin DSUB connector for Kvaser PCIEcan HS, HS/HS. (Per channel) Function... -
Page 10: Software Development Information
“CANLIB Software Development Kit” documentation for further information on these device drivers from a programmer’s point of view. Please note that this board is fully software compatible with the Kvaser PCIEcan boards. 6.1 Additional Documentation This document includes all information you need to use the circuits on the card. However, the circuits themselves are not described here so information about these must be obtained from the suppliers. -
Page 11: Interrupts
Item Value Vendor Id 0x1A07 Device Id 0x0008 Revision Id Class Code 0xffff00 (means: no base class code defined for device) Subsystem Vendor Id 0x1A07 Subsystem Device Id 0x0008 Kvaser AB, Mölndal, Sweden — www.kvaser.com... -
Page 12: Configuration Of The Sja1000
0 (meaning divide-by-2), the Pelican bit, and the clock-off bit (you have no need for CLKOUT anyway.) The only way to find out how many SJA1000 a PCIEcan card has, is to try to access them one after the other. Kvaser AB, Mölndal, Sweden — www.kvaser.com... -
Page 13: Support
Kvaser CANKing - a free-of-charge and general-purpose interactive CAN bus monitor can be download from our web site. Please visit our homepage http://www.kvaser.com to find software updates, hints and tips and other helpful information. You are always welcome to contact our Support Team - support@kvaser.com. -
Page 14: Disposal And Recycling Information
14(17) 8 Disposal and Recycling Information When this product reaches its end of life, please dispose of it according to your local environmental laws and guidelines. For information about Kvaser's recycling programs, visit: www.kvaser.com/en/kvaser/environment/recycling Kvaser AB, Mölndal, Sweden — www.kvaser.com... -
Page 15: References
PCI Express system architecture. MindShare, Inc. ISBN 0-321- Anderson, D. 15630-7. More CAN information is found on www.kvaser.com and has many links to other sites with CAN information. You can also download new versions of the software for PCIEcan here. Kvaser AB, Mölndal, Sweden — www.kvaser.com... -
Page 16: Legal Information
Hazardous Substances in electrical and electronic equipment (RoHS.) 10.3 About this manual This document is Copyright © 2005-2009 Kvaser AB. This document may not be reproduced without our written permission. Infringement will render the user liable to prosecution. -
Page 17: Document Revision History
Kvaser PCIEcan User's Guide 17(17) 11 Document revision history Revision Date Changes 2008-01-17 Original revision Updated chapter 9 “Legal Information” 2008-12-01 2011-01-14 Updated supported OS list 2011-09-12 Updated disposal information 2012-09-03 Improved PCI access documentation. Minor corrections. Kvaser AB, Mölndal, Sweden — www.kvaser.com... - Page 18 X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for manufacturer: kvaser Other Similar products are found below : 00671-3 00685-0...
