Kvaser PCIEcan 4xHS User's Guide
Copyright 2015-2022 Kvaser AB, Mölndal, Sweden
https://www.kvaser.com
th
Printed Sunday 29
May, 2022
We believe that the information contained herein was accurate in all respects at the time of printing.
Kvaser AB cannot, however, assume any responsibility for errors or omissions in this text. Also note
that the information in this document is subject to change without notice and should not be construed
as a commitment by Kvaser AB.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kvaser PCIEcan 4xHS
Summary of Contents for Kvaser PCIEcan 4xHS
- Page 1 We believe that the information contained herein was accurate in all respects at the time of printing. Kvaser AB cannot, however, assume any responsibility for errors or omissions in this text. Also note that the information in this document is subject to change without notice and should not be construed...
- Page 2 Kvaser PCIEcan 4xHS User’s Guide 2 (18) (This page is intentionally left blank.) Kvaser AB, Mölndal, Sweden — www.kvaser.com...
-
Page 3: Table Of Contents
2 Introduction 2.1 Welcome to Kvaser PCIEcan 4xHS ....2.2 Major features ...... -
Page 4: About This Manual
Kvaser PCIEcan 4xHS User’s Guide 4 (18) 1 About this manual This manual is intended for Kvaser PCIEcan 4xHS users. This document contains a description of the hardware’s properties and general instructions for connecting the device to a computer. Kvaser AB, Mölndal, Sweden — www.kvaser.com... -
Page 5: Introduction

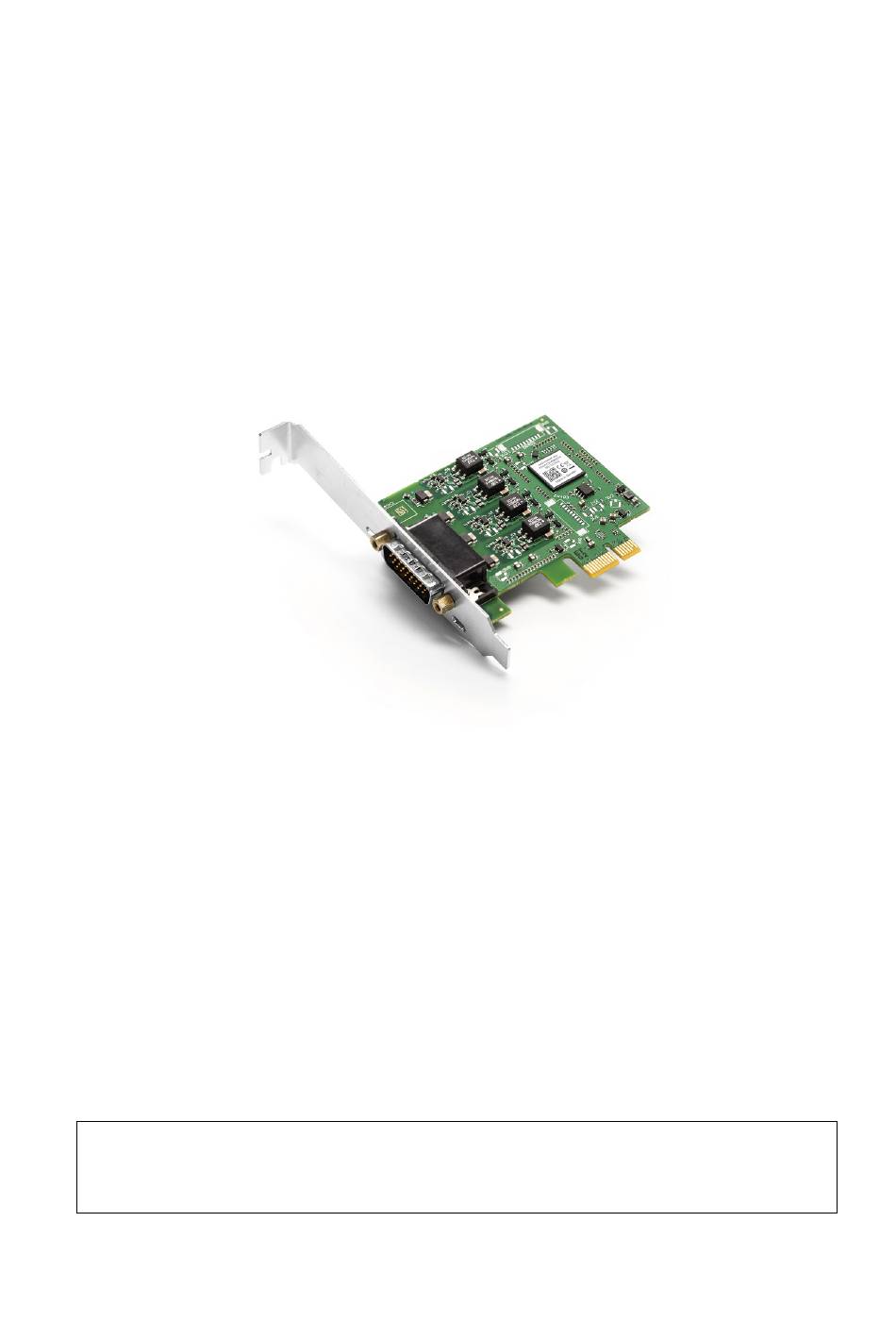

2.1 Welcome to Kvaser PCIEcan 4xHS Figure 1: Kvaser PCIEcan 4xHS Kvaser PCIEcan 4xHS is a small, yet advanced, CAN multi channel real time CAN interface that handles transmission and reception of standard and extended CAN messages on the bus with a high time stamp precision. It is compatible with applications that use Kvaser‘s CANlib. -
Page 6: Major Features
Kvaser CAN and LIN hardware. The SDK contains full documentation and many sample programs, written in C, C++, C#, Delphi, Python and Visual Basic. Kvaser CAN and LIN hardware is built around the same common software API. Applications developed using one device type will run without modification on other device types. -
Page 7: Kvaser Pciecan 4Xhs Hardware
In this section you can read more about the CAN channels, power supply and LED indicators. 3.1 Hardware installation The Kvaser PCIEcan 4xHS may be inserted in any free PCI Express slot on the host computer. You do need to switch the power off before inserting or removing the device. -
Page 8: Troubleshooting
Kvaser PCIEcan 4xHS User’s Guide 8 (18) 3.5 Troubleshooting Use “Kvaser Device Guide” in the Control Panel to verify that the computer can communicate with the Kvaser PCIEcan 4xHS. If the firmware version shown is all zeros, there are communication problems. -
Page 9: Appendices
In this section you will find technical information about the Kvaser PCIEcan 4xHS and its connectors. 4.1 Technical data In Table 2 below you will find the technical specifications of Kvaser PCIEcan 4xHS. CAN Channels CAN Transceivers MCP2561FD (Compliant with ISO 11898-2) - Page 10 CAN_L channel 1 CAN_L channel 2 CAN_L channel 3 CAN_L channel 4 Not connected Not connected Not connected Not used by Kvaser PCIEcan 4xHS Not connected Not used CAN_H channel 1 CAN_H channel 2 CAN_H channel 3 CAN_H channel 4...
-
Page 11: Can Bus Termination
Every CAN bus must be terminated with a 120 Ohm resistor at each end of the bus. The Kvaser PCIEcan 4xHS does not contain any CAN bus termination, because their inclusion could cause severe disturbance in a system which is already correctly terminated. - Page 12 To check the current firmware version, open “Kvaser Device Guide” which can be found in the Control Panel. Select “Kvaser PCIEcan 4xHS” in the tree view to the left, and click on the channel. The firmware revision information now appears in the right half of the window.
-
Page 13: Disposal And Recycling Information
13 (18) 5 Disposal and Recycling Information When this product reaches its end of life, please dispose of it according to your local environmental laws and guidelines. For information about Kvaser’s recycling programs, visit: https://www.kvaser.com/en/kvaser/recycling-policy.html Kvaser AB, Mölndal, Sweden — www.kvaser.com... -
Page 14: Legal Acknowledgements
KVASER AB’S WARRANTY SHALL BE LIMITED TO THE CORRECTION OF DEFECTS, AND KVASER AB HEREBY EXPRESSLY DISCLAIMS ANY LIABILITY OVER AND ABOVE THE REFUNDING OF THE PRICE PAID FOR THIS DEVICE, SINCE KVASER AB DOES NOT HAVE ANY INFLUENCE ON THE IMPLEMENTATIONS OF THE HIGHER-LEVEL SYSTEM, WHICH MAY BE DEFECTIVE. -
Page 15: Eu Regulatory Compliance
Kvaser PCIEcan 4xHS User’s Guide 15 (18) 6.2 EU Regulatory Compliance EU Declaration of Conformity (DoC) Kvaser AB M¨ o lndal Company Name: City: Aminogatan 25 +46 31 886344 Postal address: Telephone number: 431 53 sales@kvaser.com Postcode: E-mail address: declare that the DoC is issued under our sole responsibility and belongs to the following product:... -
Page 16: Fcc Regulatory Compliance
Kvaser PCIEcan 4xHS User’s Guide 16 (18) 6.3 FCC Regulatory Compliance Federal Communications Commission (FCC) Compliance Information Statement IDENTIFICATION OBJECT: Product: Kvaser PCIEcan 4xHS Type: 73-30130-00683-6 APPLICABLE COMPLIANCE STATEMENTS: CFR Title 47 Part 15 15.107, 15.109 This device complies with part 15 of the FCC Rules. -
Page 17: Patents, Copyrights And Trademarks
MagiSync is a trademark of Kvaser AB. DeviceNet is a trademark of Open DeviceNet Vendor Association, Inc. NMEA 2000 is the registered trademark of the National Marine Electronics Association, Inc. For information about Kvaser related CAN patents, see www.kvaser.com/patent. Kvaser AB, Mölndal, Sweden — www.kvaser.com... -
Page 18: Document Revision History
Kvaser PCIEcan 4xHS User’s Guide 18 (18) 7 Document Revision History Version history for document UG_98168_pciecan: Revision Date Changes 2015-04-28 Initial version 2015-08-11 Minor textual changes 2016-02-04 Added chapter: Updating the firmware 2017-01-09 Updated compliance text, added link to patents 2017-03-21 Added Power consumption to Techical data.
