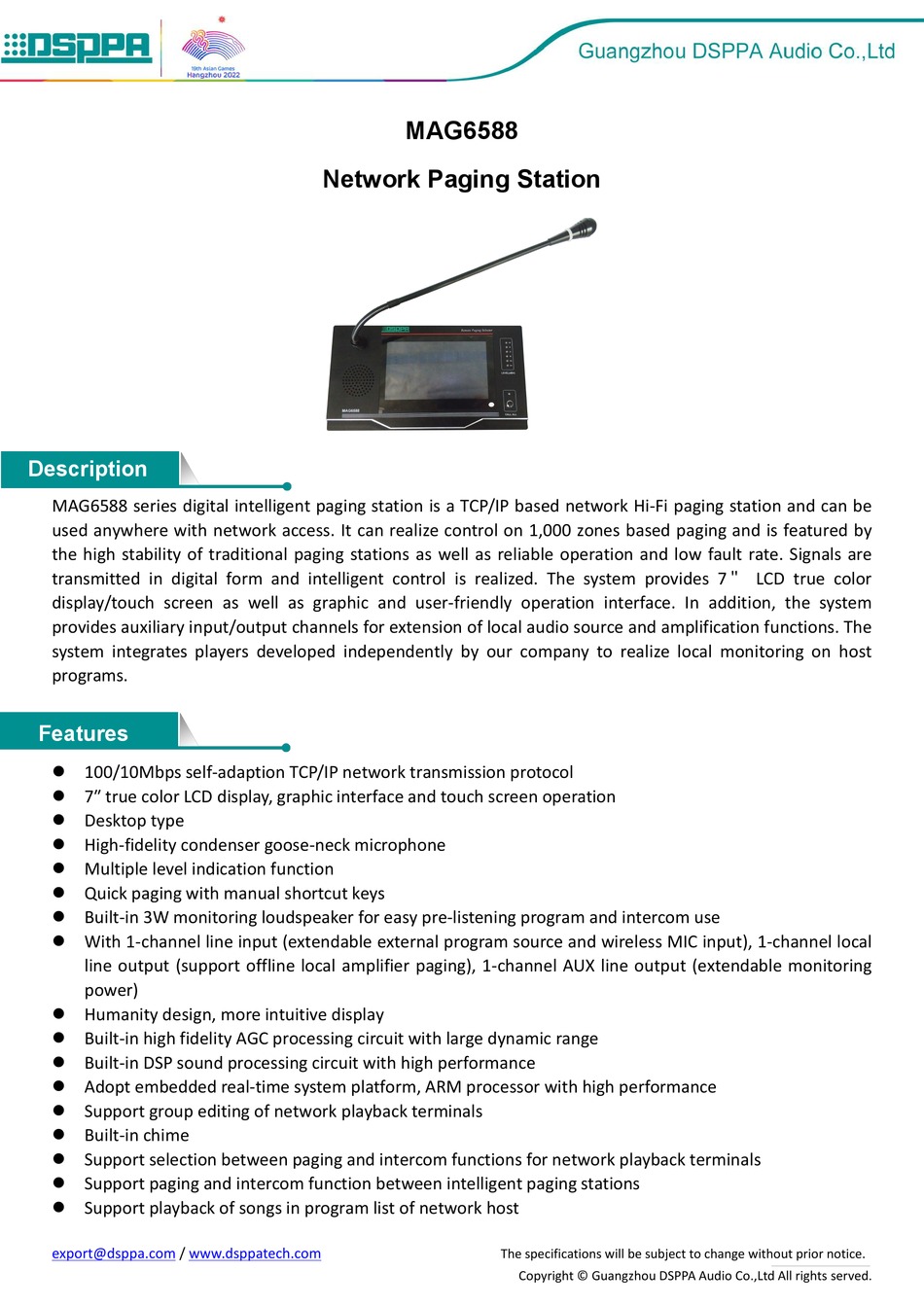

DSPPA MAG6588 Quick Start Manual

Description
MAG6588 series digital intelligent paging station is a TCP/IP based network Hi-Fi paging station and can be
used anywhere with network access. It can realize control on 1,000 zones based paging and is featured by
the high stability of traditional paging stations as well as reliable operation and low fault rate. Signals are
transmitted in digital form and intelligent control is realized. The system provides 7 ʺ LCD true color
display/touch screen as well as graphic and user-friendly operation interface. In addition, the system
provides auxiliary input/output channels for extension of local audio source and amplification functions. The
system integrates players developed independently by our company to realize local monitoring on host
programs.
Features
 100/10Mbps self-adaption TCP/IP network transmission protocol
 7ʺ true color LCD display, graphic interface and touch screen operation
 Desktop type
 High-fidelity condenser goose-neck microphone
 Multiple level indication function
 Quick paging with manual shortcut keys
 Built-in 3W monitoring loudspeaker for easy pre-listening program and intercom use
 With 1-channel line input (extendable external program source and wireless MIC input), 1-channel local
line output (support offline local amplifier paging), 1-channel AUX line output (extendable monitoring
power)
 Humanity design, more intuitive display
 Built-in high fidelity AGC processing circuit with large dynamic range
 Built-in DSP sound processing circuit with high performance
 Adopt embedded real-time system platform, ARM processor with high performance
 Support group editing of network playback terminals
 Built-in chime
 Support selection between paging and intercom functions for network playback terminals
 Support paging and intercom function between intelligent paging stations
 Support playback of songs in program list of network host
export@dsppa.com / www.dsppatech.com

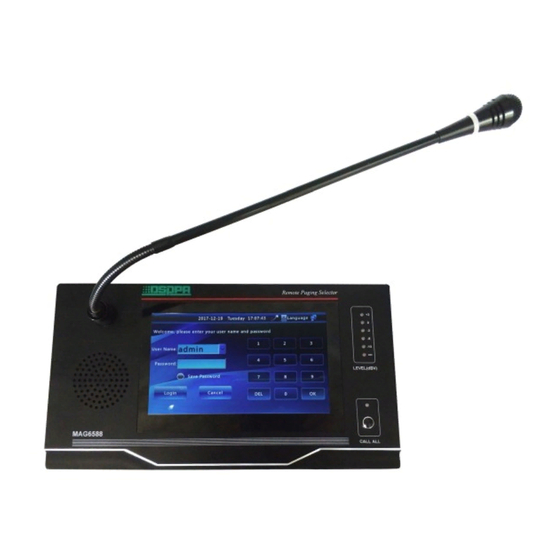

MAG6588
Network Paging Station
The specifications will be subject to change without prior notice.
