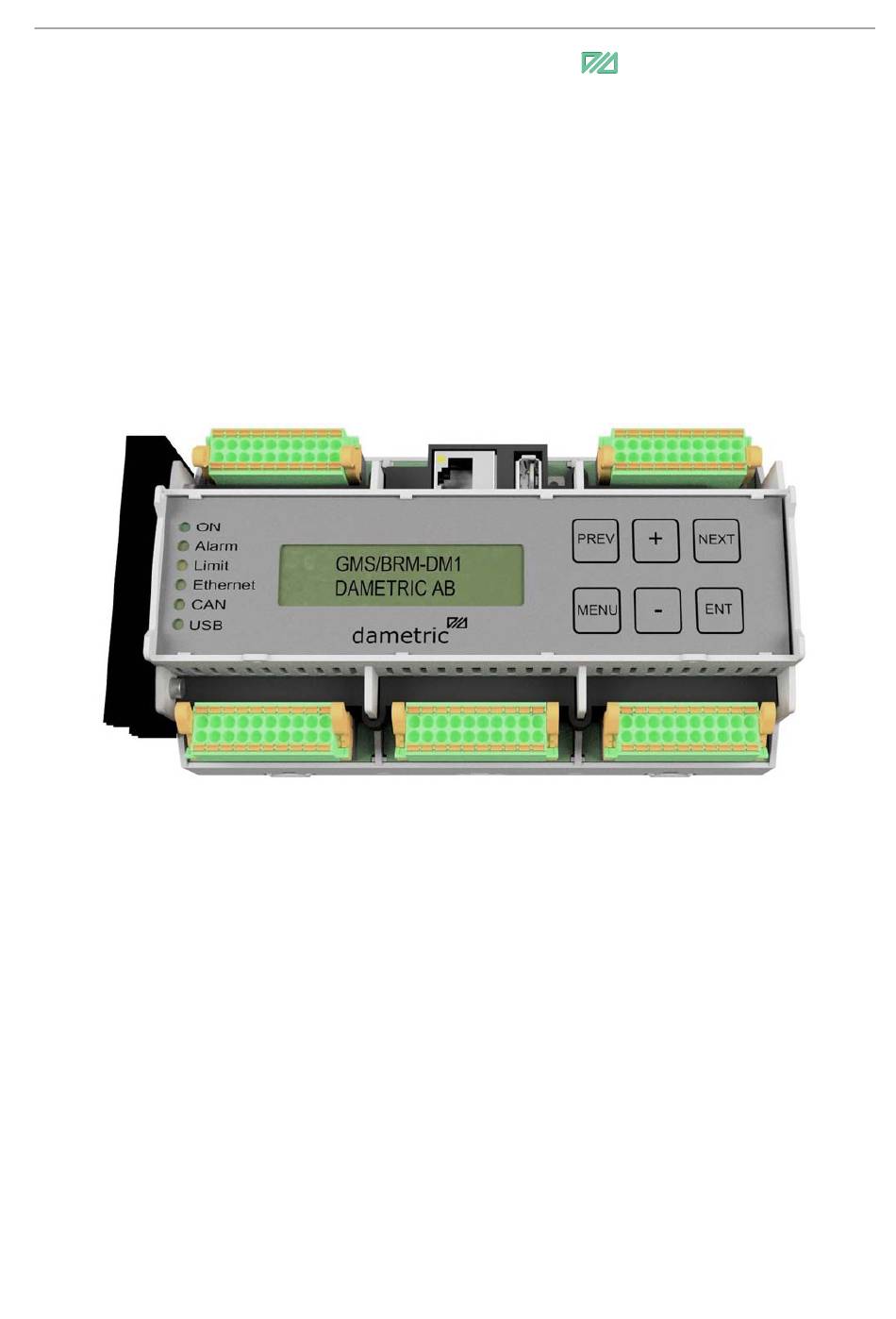

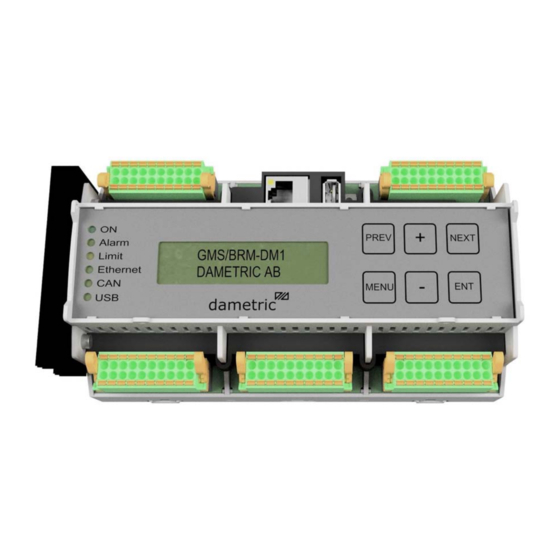

- Page 1 Dametric AB BRM-DM1/2 User manual dametric BRM-DM1 BRM-DM2 GMS Basic Refiner Module USER MANUAL BRM-DM12 UM EN.docx Feb. 18, 2020 Page 1 of 10...
-
Page 2: Table Of Contents
Aug. 7, 2018/BL Updated for the SSM-function. Oct. 1, 2018/BL BRM-DM2 added. Jan. 8, 2020/BL Revised the menu structure for BRM-DM1 and BRM-DM2. Program version 1.25. Added descriptions of the parameters. Feb. 18, 2020/BL Revised connection description. Article number SKC / Valmet... -
Page 3: Handling
Dametric AB BRM-DM1/2 User manual Handling Panel indicators The LED indicators have the following meaning: Name Function flashes Power supply No power supply Power supply OK Alarm Alarm indication No alarm activated An alarm detected A sum alarm detected Limit... -
Page 4: Menu Structure Brm-Dm1
Dametric AB BRM-DM1/2 User manual 4.2.3 Menu structure BRM-DM1 Function 1-4 POM Work mode BRM Date POM Span calibr. TVD Pro.adj.sen. BRM Test func. POM Zero calibr. TVD Al.lim.4 Lg1 BRM DCS clock POM Al.Lim. 3L TVD Al.lim.3 Lg2 BRM HW. Rev.no. -
Page 5: Menu-Structure Brm-Dm2
Dametric AB BRM-DM1/2 User manual 4.2.4 Menu-structure BRM-DM2 Function 1-4 POM Work mode POM Span calibr. BRM Test func. POM Zero calibr. BRM DCS clock POM Al.Lim. 3L BRM HW. Rev.no. POM Al.Lim. 2H VIM Span calibr. BRM Serial no. -
Page 6: Parameter Description
Dametric AB BRM-DM1/2 User manual Parameter description GMS/BRM-DM1/2 BRM GMS System GMS measure system: 1:GMS-V1T01, 2:GMS-V1A01, 3:GMS-V1A02, 4:GMS- V2A01, 5:GMS-V2T01, 6:GMS-V1X01, 7:GMS-V1X02. BRM Can Node no. Node number, normal 1, use 2 for flats side in a CD-refiner. (GMS-V2A01 and GMS-V2T01). -
Page 7: Control Motor
Dametric AB BRM-DM1/2 User manual Control motor CMD Off/On/On+Al Off=disconnected, On=connected, On+Alarm=connected to the sum alarm function. CMD Screw pitch Thread, set thread pitch in mm for the control rod (mm). CMD Low speed Rotor travel speed at low speed (mm/s). -
Page 8: Analog Input
Maximum control limit. No check is done at a POM-value above this limit. 5.14 Rotor Move Ctrl. The function is only valid and shown in a BRM-DM1. RMC Function Function, “Off” = disconnected. “Static op.” = static mode, the production position is not changed in operation. -
Page 9: Gap Control Rot
Dametric AB BRM-DM1/2 User manual 5.16 Gap Control Rot. The function is only valid and shown in a BRM-DM2. GCR Work mode Work mode, 0 = disconnected, 1 = for Valmet single disc, 2 = for Valmet CD- refiner. GCR Interval Interval between each gap control (s). -
Page 10: Safeset Monitor
Dametric AB BRM-DM1/2 User manual 5.21 Safeset Monitor The function is only valid and shown in a BRM-DM2. SSM Off/On/On+Al Off=disconnected, On=connected, On+Alarm=connected to the sum alarm function. SSM Pulses Number of allowed fault pulses. SSM Rotor speed. Measured rotor speed in rpm.
