- Page 1 Dametric AB CMD-DM2 Manual dametric CMD-DM2 Control Motor Driver MANUAL CMD-DM2 Manual EN.docx Nov. 21, 2019 Page 1 of 5...
-
Page 2: Table Of Contents

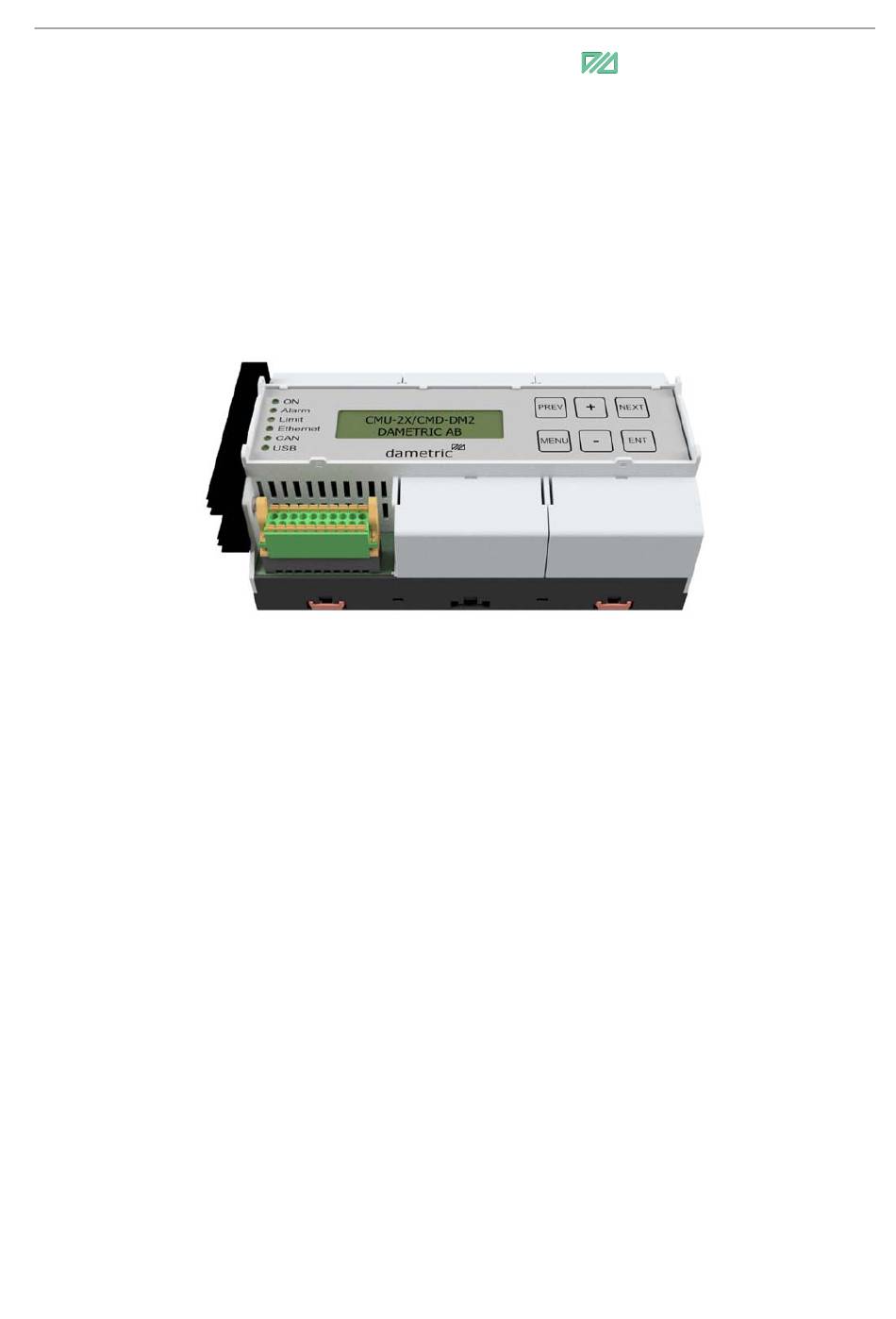

CONTACT ................................ 5 General The CMD-DM2 is a module designed to control an electric stepping motor. The unit includes functions and control signals to generate a desired stepping motor action. A cable, K- CM25K, are used to connect the stepping motor to the CMD-DM2 unit. -
Page 3: Led Indicators
Use MENU if you select to go back to the function level. Press MENU for more than 1 second to return to the basic display indication. CMD-DM2 Manual EN.docx Nov. 21, 2019 Page 3 of 5... -
Page 4: 5.2.2 Parameters
Set the hold current. The default value is 0.2A. CMD Status Indicates the working status of the step motor. CMD Run current Shows the actual current consumption (used for troubleshooting). CMD-DM2 Manual EN.docx Nov. 21, 2019 Page 4 of 5... -
Page 5: Installation
DO-ALARM Alarm output Contact Sales, development, production and service: dametric Dametric AB Jägerhorns Väg 19, 141 75 Kungens Kurva, Sweden Phone: +46-8 556 477 00 e-mail: service@dametric.se Web site: www.dametric.se CMD-DM2 Manual EN.docx Nov. 21, 2019 Page 5 of 5...
