JET WASHER FOR FLUSH VALVE TOILET W/O T-JOINT TGB500AZRV24
SPECIFICATIONS
172
23 220
340
G½
OPERATING CONDITIONS
1. Water supply pressure : 0.05 ~ 0.75 Mpa
2. Ensure that water supply is clean ( No Sand, Dirt, Etc.).
ATTENTION
1. Don t use abrasive cleaners or solvents on faucets and
fittings.
2. As the product model is constantly updated, the actual
product may not look the same as it shown in the diagram,
but the basic installation principles are the same.
S06396-24N

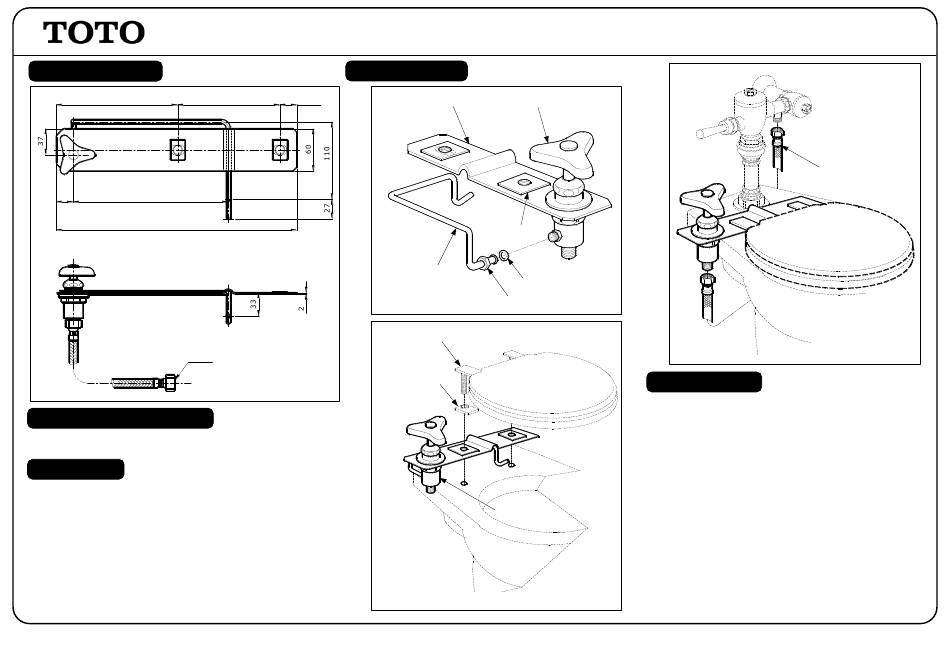

INSTALLATION
1.
144±6 24
Mounting Plate
Water Pipe
with Nozzle
2.
Hinge Post*
( Not Included )
( Not Included )
* = Not include The product
Valve Control
Rubber
Packing
Asbestos Packing
Coupling Nut
Packing*
Jet Washer
Body
3.
Hose
MAINTENANCE
All Finishes : Clean the finish with mild soap and warm
water. Wipe entire surface completely dry with clean
soft cloth. Many cleaners may contain chemicals, such
as ammonia, chlorine, toilet cleaner etc. which could
adversely affect the finish and are not recommended
for cleaning
R3
