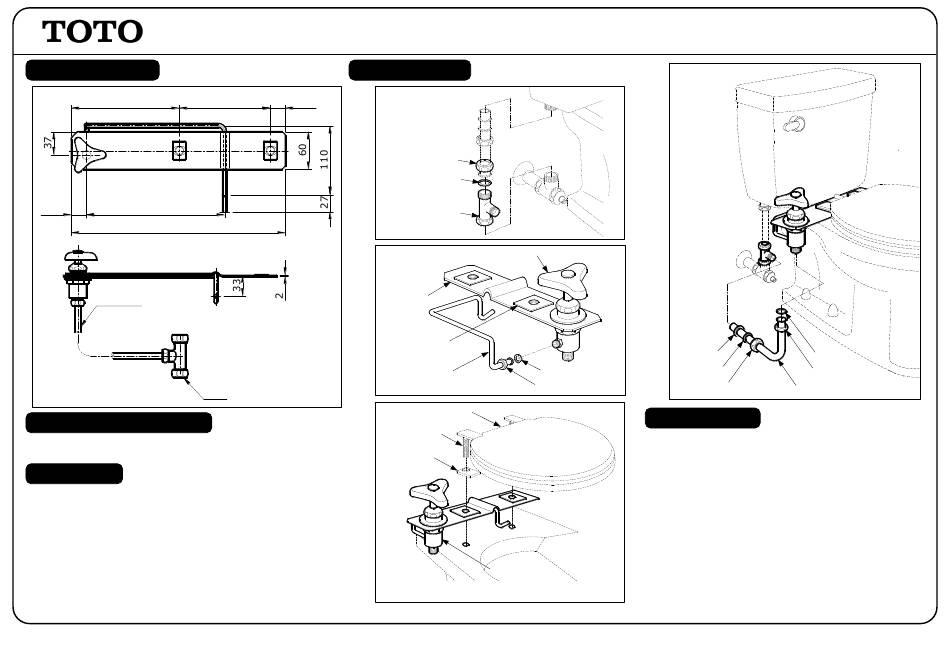

Toto TGB500AZRV20 Manual

SPECIFICATIONS
172
23 220
340
L = 400
OPERATING CONDITIONS
1. Water supply pressure : 0.05 ~ 0.75 Mpa
2. Ensure that water supply is clean ( No Sand, Dirt, Etc.).
ATTENTION
1. Don t use abrasive cleaners or solvents on faucets and
fittings.
2. As the product model is constantly updated, the actual
product may not look the same as it shown in the diagram,
but the basic installation principles are the same.
S06396-20N

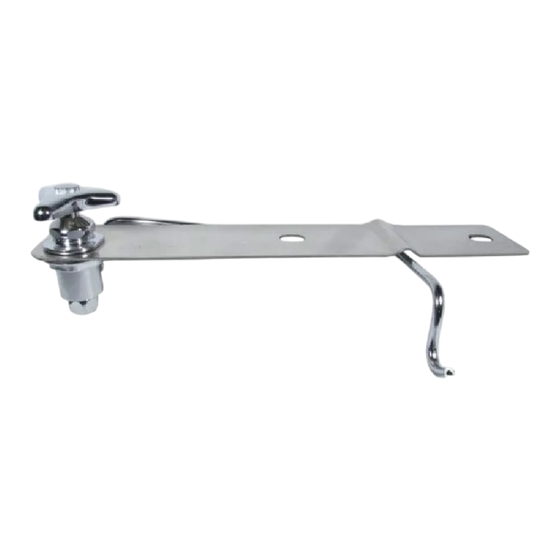

JET WASHER FOR CLOSE-COUPLED TOILET TGB500AZRV20
INSTALLATION
1.
144±6 24
2.
Mounting
G½
3.
Hinge Post *
* = Not include The product
Nut
Packing
T- Joint
Control Valve
Plate
Rubber
Packing
Water Pipe
Asbestos Packing
with Nozzle
Coupling Nut
Toilet Seat *
Packing *
Jet Washer
Body
4.
Packing
Packing
Washer
Nut
Nut
Pipe
MAINTENANCE
All Finishes : Clean the finish with mild soap and warm
water. Wipe entire surface completely dry with clean
soft cloth. Many cleaners may contain chemicals, such
as ammonia, chlorine, toilet cleaner etc. which could
adversely affect the finish and are not recommended
for cleaning
R4
