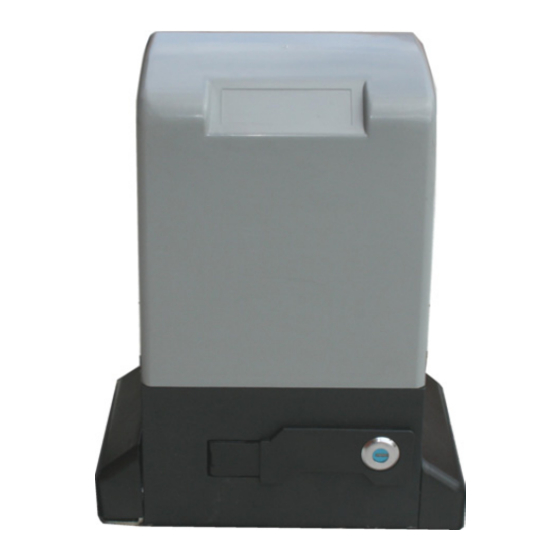

- Page 1 Digiway Pty Ltd INSTRUCTION MANUAL SL1000 Sliding Gate Motor SL2000 Sliding Gate Motor Version –V1.0...
-
Page 2: Important Safety Warning
Digiway Pty Ltd IMPORTANT SAFETY WARNING ATTENTION To prevent electrical shock, disconnect from power source before installing or service ATTENTION Electricity and power motors associated accessories could be fatal or at least cause seriously injury. All main voltage wiring must be installed by a licensed electrician. -
Page 3: General Descriptions
Motor Installation 1. General Descriptions The SL1000 and SL2000 heavy duty single phase industry 240v motor sliding gate motors was designed for industry track gate or light cantilever gate. The AC6 controller can receive the signals from swipe card, loop detectors, remote control, photo-electric beams and any kind of access control system. - Page 4 Digiway Pty Ltd Motor Installation 3.3 Manual release Fig-3 3.4 Mounting Limit Switch Fig-4 Mechanical limit switch Fig-5...
- Page 5 Digiway Pty Ltd Motor Installation Magnetic limit switch Fig-6 4. Control Board layout Fig-7...
- Page 6 Digiway Pty Ltd CONTROL INPUIT AND BUTTON 1) Open button 2) Close button 3) Ped button 4) Stop button 5) OSC button 6) PE button 7) Display LEDs 8) DIP switch for settings 9) Motor and transformer fuse 10) 240V AC supply...
- Page 7 Digiway Pty Ltd CONTROL INPUIT AND BUTTON 4.2 Model Select Switch 4.2.1 SYNC Delay (DIP1) ON= Delay OFF= No Delay DIP1 is on: Motor 2 delay open and motor 1 delay close. DIP1 is off, there is no delay. Not apply to Torque motor.
- Page 8 Digiway Pty Ltd CONTROL INPUIT AND BUTTON 4.3 Timers setting Push Buttons functions Button SET1---ON SET2 --- ON Set1 and Set2 both off---Running Open cycle time set Warning time set Open gate Close cycle time set Lock time set Close gate...
- Page 9 Digiway Pty Ltd CONTROL INPUIT AND BUTTON Factory setting Timer F/Setting Step Setting Method Range Open Cycle Time 60sec. 0.1sec SET1 on + OPN Button 0-6550sec. Close Cycle Time 60sec. 0.1sec. SET1 on + CLS Button 0-6550sec. Ped Cycle Time 10sec.
-
Page 10: Wiring Diagram
Digiway Pty Ltd WIRING DIAGRAM 7. Wiring diagram... - Page 11 Digiway Pty Ltd CONDITION OF SALE 1. Orders The placement of any orders upon Digiway implies acceptance of these terms and conditions and takes precedence over any other terms and conditions written or oral. 2. Deliveries (a) Time of delivery will be complied with wherever possible. It is not guaranteed and is subject to extensions to cover delays caused by strikes, vehicle breakdown, traffic delays, weather and any causes beyond Digiway’s control.
