Introduction

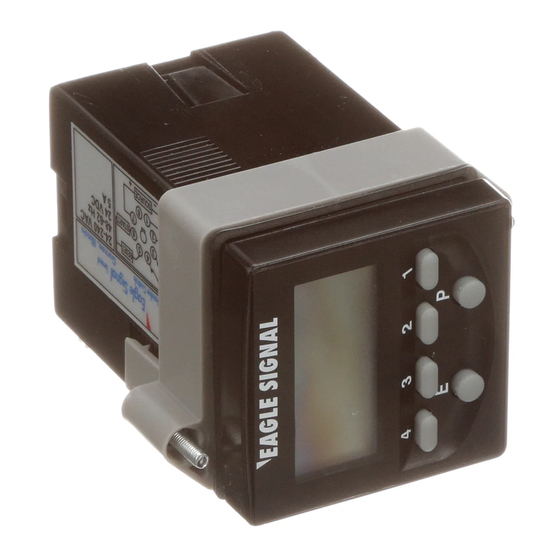

An excellent value in its class, the B856 features a compact 1/16 DIN package, the
precision of digital setting, versatile functionality, and a straightforward button-per-
digit interface.
It can be easily programmed to perform any standard timing operation: On-Delay, Off-
Delay, Interval 1, Interval 2, or Repeat Cycle. A unique On-Delay /Interval Mode can in
many cases perform the function of two separate timers. Output is via DPDT relay
contacts.
Five selectable time ranges and a programmable decimal point provide preset times
ranging from .01 seconds to 9999 hours.
Simplicity of operation is maintained while still providing a high level of functionality. All
Programming is done through the front panel, with an intuitive button-per-digit keypad
that makes entry of preset times quick and easy. A crisp dual line LCD display lets the
operator readily view elapsed or remaining cycle time as well as the preset value.
Prominent annunciators indicate
information such as the time range and the
status of the input and outputs.
Reliability is a key feature of the B856. IEC
Level 4 noise immunity ensures flawless
operation in harsh electrical environments,
while its IEC IP65 enclosure rating allows
use in washdown conditions.
Wiring via an industry standard 8 pin
socket and a power supply that can
accept 24 - 240 VAC or 24 VDC vastly
simplify setup.
Features
• Field programmable choice of 6 operating
modes
• 5 selectable time ranges with resolution down
to 0.01 seconds
• High Contrast LCD display indicates both
process time and preset value
• Simple button per digit interface
• Programmable security levels prevent
unauthorized setpoint or program changes
• Universal Power Supply (24 - 240 VAC,
24 VDC)
• External Start and Reset Inputs
• IEC IP65 rated front panel
Index
Panel Mounting
page 2
page 2
page 2
Programming
page 3-4
page 5
page 8
page 8
page 8
Technical Manual
702096-0001
Eagle Signal
brand
Model B856-501
Multifunction
LCD Timer
Advertisement
Table of Contents
Related Manuals for Eagle Signal B856-501
Summary of Contents for Eagle Signal B856-501
- Page 1 Wiring via an industry standard 8 pin Eagle Signal socket and a power supply that can brand accept 24 - 240 VAC or 24 VDC vastly simplify setup. Model B856-501 Multifunction Index Features LCD Timer Overview • Field programmable choice of 6 operating...
- Page 2 Time Range Indicator Illuminates to show the time base: H for hours, M for minutes, S for seconds. Multiple indicators will be illuminated EAGLE SIGNAL when the time base is Hours:Minutes or I/O Status Indicators Minutes:Seconds. Illuminates to display when an input or 1 2 3 4 output is active: "IN' for the start input,...
- Page 3 P R O G R A M M I N G PROGRAM MODE • Enter the Program Mode by holding down the "P" key for 3 seconds • Press the "P" key to move the top display from one parameter to the next •...
- Page 4 P R O G R A M M I N G Timing Direction: Determines whether the time value will increment from zero and change the t d i r state of the output at the set value (uP) or decrement from the set value and change the state of the output at zero (dn).
- Page 5 O P E R A T I N G M O D E S TIMING DIAGRAMS On-Delay Off-Delay Power Power Start Start Output Output Reset Timing begins on the leading edge of the start input. The output will activate The output is activated at the leading edge of the start signal. Timing begins at the completion of the preset time (T) and will remain active until the reset on the trailing edge.
- Page 6 DANAHER CONTROLS has representatives and distributors located in major cities within the United States and throughout the world. For information about the distributor or sales office nearest you, contact our customer service department: Veeder-Root Customer Service Internet Presence Dynapar call Toll Free 800.873.8731 E-Mail: dancon@dancon.com or 847.662.2666 Worldwide Web: http://www.dancon.com Eagle Signal...
- Page 7 DANAHER CONTROLS has representatives and distributors located in major cities within the United States and throughout the world. For information about the distributor or sales office nearest you, contact our customer service department: Veeder-Root Customer Service Internet Presence Dynapar call Toll Free 800.873.8731 E-Mail: dancon@dancon.com or 847.662.2666 Worldwide Web: http://www.dancon.com Eagle Signal...
- Page 8 UL, CUL recognized; CE certified ORDERING INFORMATION Description Model # Multifunction Timer, 24 - 240 VAC, 24 VDC B856-501 8 Pin Socket 60SR2P06 WARRANTY Standard B856 products manufactured by the Company are Products which the Company consents to have returned shall be warranted to be free from defects in workmanship and material for shipped F.O.B.
