Eagle Signal B506 Technical Manual

Repeat cycle led timer
Hide thumbs Also See for B506:
Table of Contents

Advertisement

Quick Links

Introduction

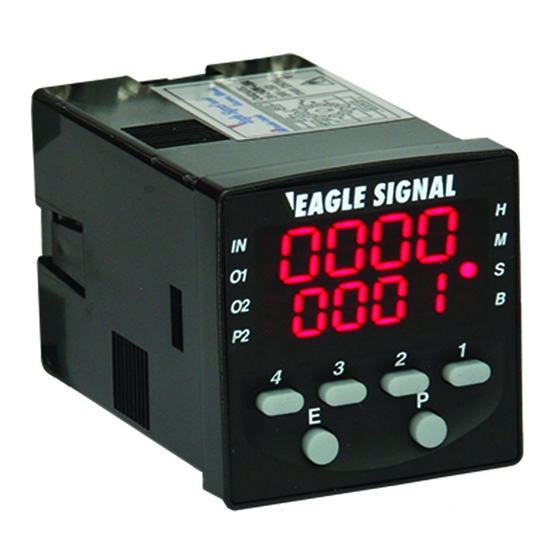

Your Eagle-Signal brand B506 1/16 DIN timer is a unique instrument specifically
designed for handling repetitive cyclical operations. This unit is highly flexible and
can be field configured to operate in a number of different fashions. Unique features
include the ability to set two separate times for On and Off operations, which can
even be in different time bases, or input a time base with a percentage value. A
batch count function keeps track of the number of completed cycles and can stop
Operation after the preset has been reached.
Inside this manual you will find complete information on the Control mode, which
deals with viewing and changing the available setpoints, and Program Mode which is
used to configure the basic operation of the timer, as well as set a variety of other
useful features.
Also found in this manual are detailed timing diagrams and descriptions of the
available operating functions to aid you in determining how to properly configure the
unit to solve your application.
Additionally included are key product
Specifications, warranty procedures and
Ordering Information should you require
additional units or accessories.
Should you require any additional
assistance with the installation and
operation of this product, please call our
toll free application support line at 1-800-
234-8731.
Features
• Repeat Cycle functionality with completely
independent settings for On and Off times
• Batch Count function can trigger an
output and stop the cycle
• Settings can be input as absolute time
values or as a time base and percentage
• Simple button per digit interface
• Timing resolution down to 1 ms
• Programmable security levels prevent
unauthorized setpoint or program changes
• Timed or latched batch output
• Programmable to begin with an On or an
Off operation
• IEC IP65 rated front panel
• Highly visible 8 mm dual line LED display
with 8 annunciator lights
Index
Panel Mounting
page 2
Wiring Connections
page 2
Operation
Front Panel
page 3
page 3
page 4 - 6
page 7
Specifications
page 8
Ordering Information
page 8
page 8
Technical Manual
702120-0001
Eagle Signal
brand
B506
Repeat Cycle
LED Timer
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B506 and is the answer not in the manual?

Questions and answers

Related Manuals for Eagle Signal B506

Summary of Contents for Eagle Signal B506

  • Page 1 Introduction Your Eagle-Signal brand B506 1/16 DIN timer is a unique instrument specifically designed for handling repetitive cyclical operations. This unit is highly flexible and can be field configured to operate in a number of different fashions. Unique features include the ability to set two separate times for On and Off operations, which can even be in different time bases, or input a time base with a percentage value.

  • Page 2: Panel Mounting

    AC Power Warning: Do Not connect a coil in parallel with the start signal for the B506, as pictured at left. Such a connection will cause the start signal to be continuously active. This situation also applies to the Reset and Inhibit inputs.

  • Page 3: Operation Front Panel

    Illuminates to display when an input or output is operation the illuminated LED will flash. active: "IN' for the start input, "O1" and "O2" for the timed outputs. EAGLE SIGNAL Batch Indicator 1234 Illuminates to indicate that the Batch Count Preset 2 Indicator Value and Batch Preset are being displayed.

  • Page 4: Program Mode

    C O N F I G U R A T I O N PROGRAM MODE • Enter the Program Mode by holding down the "P" key for 3 seconds • Press the "P" key to move the top display from one parameter to the next •...
  • Page 5 C O N F I G U R A T I O N 1st Operation: Determines whether the time cycle will start with an "On" operation (Output 1 1 S t active) or an "Off" operation (Output 1 inactive). Please note that since preset 1 and preset 2 apply to Operation 1 and Operation 2 respectively, changing this parameter will also affect the function of each preset (ie: Preset 1 will change from the On time to the Off time, if "Off"...
  • Page 6 C O N F I G U R A T I O N Power Reset Enable: After a loss of power, the unit can be programmed to either reset P r S t upon reapplication of power (On) or continue from the point of power interruption (OFF). Front Panel Reset Enable: When active (On), the timing operation can be reset in Control F r S t Mode by simultaneously pressing the "E"...
  • Page 7 C O N F I G U R A T I O N TIMING DIAGRAMS Repeat Cycle - Batch/Continue Repeat Cycle - Batch/Stop Start Start Out 1 Out 1 Out 2/ Out 2/ Batch Batch Reset Reset Activates Deactivates Activates Deactivates Cycle On leading edge of start...

  • Page 8: Ordering Information

    Repeat Cycle Timer, Relay Out, 24 VDC B506-7002 11 Pin Socket - Outward facing terminals PBT-03172 Repeat Cycle Timer, NPN trans Out, 90-240 VAC B506-7051 Repeat Cycle Timer, NPN trans Out, 24 VAC/DC B506-7052 WARRANTY Standard B506 products manufactured by the Company are...
