Capcom CPS2 Programming Manual page 4

Hide thumbs

Advertisement

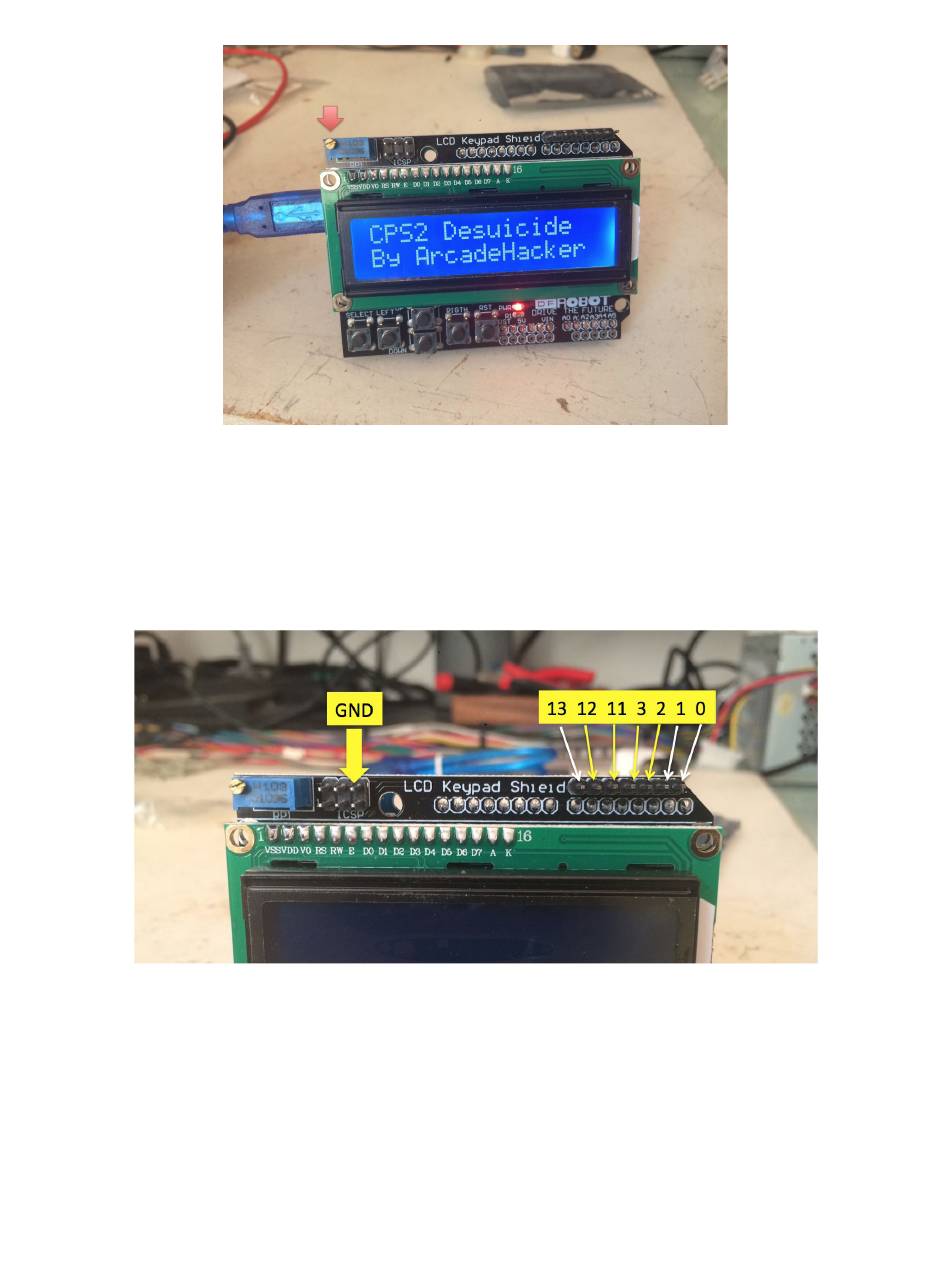

7. Locate digital pins 2, 3, 11, 12 (top right) and GND (top left icsp connector) on your LCD
Keypad Shield. Label them if possible.

8. Connect the dupont cables to the pinout as shown above. Label them if possible.
