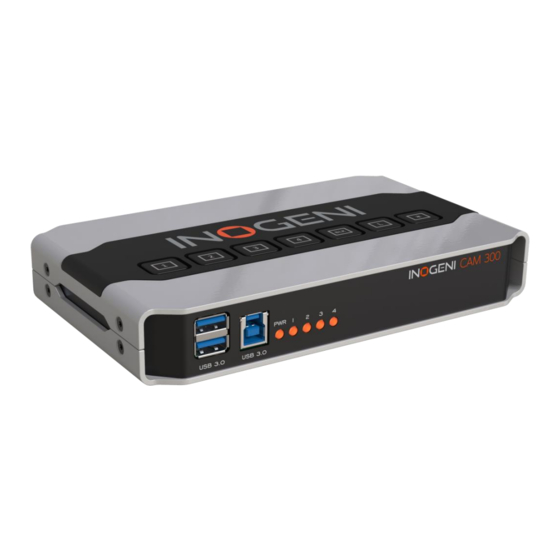

INOGENI CAM Series HDMI and
USB 2.0 Camera selectors
User Guide v1.8
CAM300
Thank you!
You have just acquired the finest and easiest to use tool for simultaneous capture of two streams of
uncompressed video with audio for your computer.
Easy, No Drivers, No Setup !
Versatile !
Compatible with all Apps !

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CAM Series and is the answer not in the manual?

Questions and answers

Summary of Contents for inogeni CAM Series

  • Page 1 INOGENI CAM Series HDMI and USB 2.0 Camera selectors User Guide v1.8 CAM300 Thank you! You have just acquired the finest and easiest to use tool for simultaneous capture of two streams of uncompressed video with audio for your computer.
  • Page 2 Professional grade full-metal enclosure OVERVIEW The INOGENI CAM Series is the most easy and reliable tool for simultaneous capture of two webcam and HDMI feeds into one single USB stream with audio for your PC for recording, videoconferencing, lecture capture and streaming applications. No driver installation is necessary and it will work on all motherboards and USB 3.0 chipsets.
  • Page 3: Device Connectors

    DEVICE CONNECTORS CONNECTION DIAGRAM INOGENI CAM Series User Guide – V1.8 – June 30, 2021...
  • Page 4: Specifications

    Up to 2 seconds switching between HDMI inputs if video resolutions are different. *Active HDMI input is the last selected HDMI input. Motherboard & Laptop Compatible with all processors and chipsets. Intel, Renesas, ASMedia and Fresco Logic INOGENI CAM Series User Guide – V1.8 – June 30, 2021...
  • Page 5 Storage Temperature -40° to 105° C -40° to 221° F Relative Humidity 0% to 90% non-condensing Power 12V, 500mA (adapter included) UPC Code 040232633836 Origin Canada Warranty 2 years INOGENI CAM Series User Guide – V1.8 – June 30, 2021...
  • Page 6 TOP USER BUTTONS These buttons have the same function as presented in the INOGENI Control App software. Input 1 (USB1) to full screen. Input 2 (USB2) to full screen. Input 3 (HDMI1) to full screen. Input 4 (HDMI2) to full screen.
  • Page 7: Serial Communication Protocol

    Moves PTZ camera vertically. This is a relative control. X = 1, for USB1 = 2, for USB2 The function works for specific cameras: ® Logitech Rally, MeetUp and PTZ Pro. ® AVer CAM520 cameras. INOGENI CAM Series User Guide – V1.8 – June 30, 2021...
  • Page 8 SWITCHES” section of this document for more details. Check the user manual of the INOGENI REMOTE for more details. For SHARE2U and CAM series – You need to wire up a RJ45 cable to a terminal block plug. Do not plug a RJ45 cable between the INOGENI device and the REMOTE.
  • Page 9: Lan Interface

    Erase the current configuration onboard and return to default values $BLK$ Black video $SHW$ Show video $RST$ Reset the device $POLL$ Returns the selected input $GET$ Return the firmware versions and video statistics. INOGENI CAM Series User Guide – V1.8 – June 30, 2021...
  • Page 10 Y = 0, no flip = 1, vertical flip = 2, horizontal flip The function works for specific cameras: ® Logitech Rally, MeetUp and PTZ Pro. ® AVer CAM520 cameras. INOGENI CAM Series User Guide – V1.8 – June 30, 2021...
  • Page 11: Dip Switches

    Frame buffer frequency is set to 50Hz. Reserved Reserved Disable 5V on terminal block. (default) Enable 5V on terminal block. This switch must be set in order to power up the connected remote. INOGENI CAM Series User Guide – V1.8 – June 30, 2021...
  • Page 12 You can update your device to the latest firmware using the Update menu. The C++ source code of this application is available on demand. Visit the Software Update page under the INOGENI CAM300 section for more details. INOGENI CAM Series User Guide – V1.8 – June 30, 2021...
  • Page 13 CONFIGURATION The INOGENI Control App allows you to configure some internal settings like shown here. Identification: You can set the device name. This is the name that will appear on your computer. For Windows users, after you set the name, you will need to delete the INOGENI composite device inside the device manager in order to update the name.
  • Page 14: Audio Control

    You can also restore default configuration by clicking “Restore defaults” button. HDMI input audio is always mixed with the USB 2.0 and/or analog inputs. You can mute HDMI audio by clicking on MUTE button. INOGENI CAM Series User Guide – V1.8 – June 30, 2021...
  • Page 15 © Copyright 2021 by INOGENI INC. All Rights Reserved. INOGENI name and logo are trademarks or registered trademark of INOGENI. Use of this product is subject to the terms and conditions of the license and limited warranty in effect at the time of purchase. Product specifications can change without notice.
