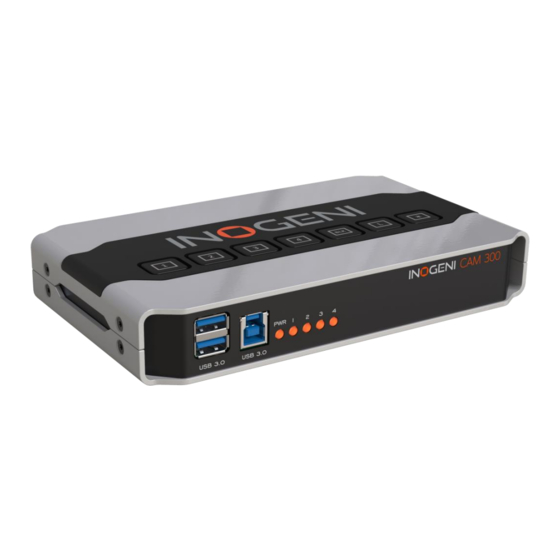

INOGENI CAM Series HDMI and
USB 2.0 Camera selectors
User Guide v1.6
CAM300
Thank you!
You have just acquired the finest and easiest to use tool for simultaneous capture of two streams of
uncompressed video with audio for your computer.
Easy, No Drivers, No Setup !
Versatile !
Compatible with all Apps !
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for inogeni CAM Series
Summary of Contents for inogeni CAM Series
- Page 1 INOGENI CAM Series HDMI and USB 2.0 Camera selectors User Guide v1.6 CAM300 Thank you! You have just acquired the finest and easiest to use tool for simultaneous capture of two streams of uncompressed video with audio for your computer.
- Page 2 Professional grade full-metal enclosure OVERVIEW The INOGENI CAM Series is the most easy and reliable tool for simultaneous capture of two webcam and HDMI feeds into one single USB stream with audio for your PC for recording, videoconferencing, lecture capture and streaming applications. No driver installation is necessary and it will work on all motherboards and USB 3.0 chipsets.
-
Page 3: Device Connectors
DEVICE CONNECTORS CONNECTION DIAGRAM INOGENI CAM Series User Guide – V1.6 – February 9, 2021... -
Page 4: Specifications
*Active HDMI input is the last selected HDMI input. Motherboard & Laptop Compatible with all processors and chipsets. Intel, Renesas, ASMedia and Fresco Logic Camera Supported Cameras and camcorders with an HDMI, DVI or USB 2.0 output INOGENI CAM Series User Guide – V1.6 – February 9, 2021... - Page 5 Storage Temperature -40° to 105° C -40° to 221° F Relative Humidity 0% to 90% non-condensing Power 12V, 500mA (adapter included) UPC Code 040232633836 Origin Canada Warranty 2 years INOGENI CAM Series User Guide – V1.6 – February 9, 2021...
- Page 6 Input 4 (HDMI2) to full screen. Black video outputs. Lock keypad. To lock/unlock the keypad, press and hold this button for a minimum of 5 seconds. Not used, reserved for customization. INOGENI CAM Series User Guide – V1.6 – February 9, 2021...
-
Page 7: Serial Communication Protocol
<ZOOM X Y> Sets zoom of camera. This is a relative control. X = 1, for USB1 The function works for specific cameras like Logitech ® Rally, MeetUp and PTZ Pro. INOGENI CAM Series User Guide – V1.6 – February 9, 2021... - Page 8 SWITCHES” section of this document for more details. Check the user manual of the INOGENI REMOTE for more details. For SHARE2U and CAM series – You need to wire up a RJ45 cable to a terminal block plug. Do not plug a RJ45 cable between the INOGENI device and the REMOTE.
-
Page 9: Lan Interface
= 0, stop = 1, clockwise $TILT_X_Y$ Moves PTZ camera vertically. This is a relative control. The function works for specific cameras like Logitech ® Rally, MeetUp and PTZ Pro. INOGENI CAM Series User Guide – V1.6 – February 9, 2021... - Page 10 X = 1, for USB1 = 2, for USB2 = 3, for HDMI1 = 4, for HDMI2 Y = 0, no flip = 1, vertical flip = 2, horizontal flip INOGENI CAM Series User Guide – V1.6 – February 9, 2021...
-
Page 11: Dip Switches
Frame buffer frequency is set to 50Hz. Reserved Reserved Disable 5V on terminal block. (default) Enable 5V on terminal block. This switch must be set in order to power up the connected remote. INOGENI CAM Series User Guide – V1.6 – February 9, 2021... -
Page 12: Audio Control
You can also restore default configuration by clicking “Restore defaults” button. HDMI input audio is always mixed with the USB 2.0 and/or analog inputs. You can mute HDMI audio by clicking on MUTE button. INOGENI CAM Series User Guide – V1.6 – February 9, 2021... - Page 13 You can update your device to the latest firmware using the Update menu. The C++ source code of this application is available on demand. Visit the Software Update page under the INOGENI CAM300 section for more details. INOGENI CAM Series User Guide – V1.6 – February 9, 2021...
- Page 14 © Copyright 2021 by INOGENI INC. All Rights Reserved. INOGENI name and logo are trademarks or registered trademark of INOGENI. Use of this product is subject to the terms and conditions of the license and limited warranty in effect at the time of purchase. Product specifications can change without notice.
