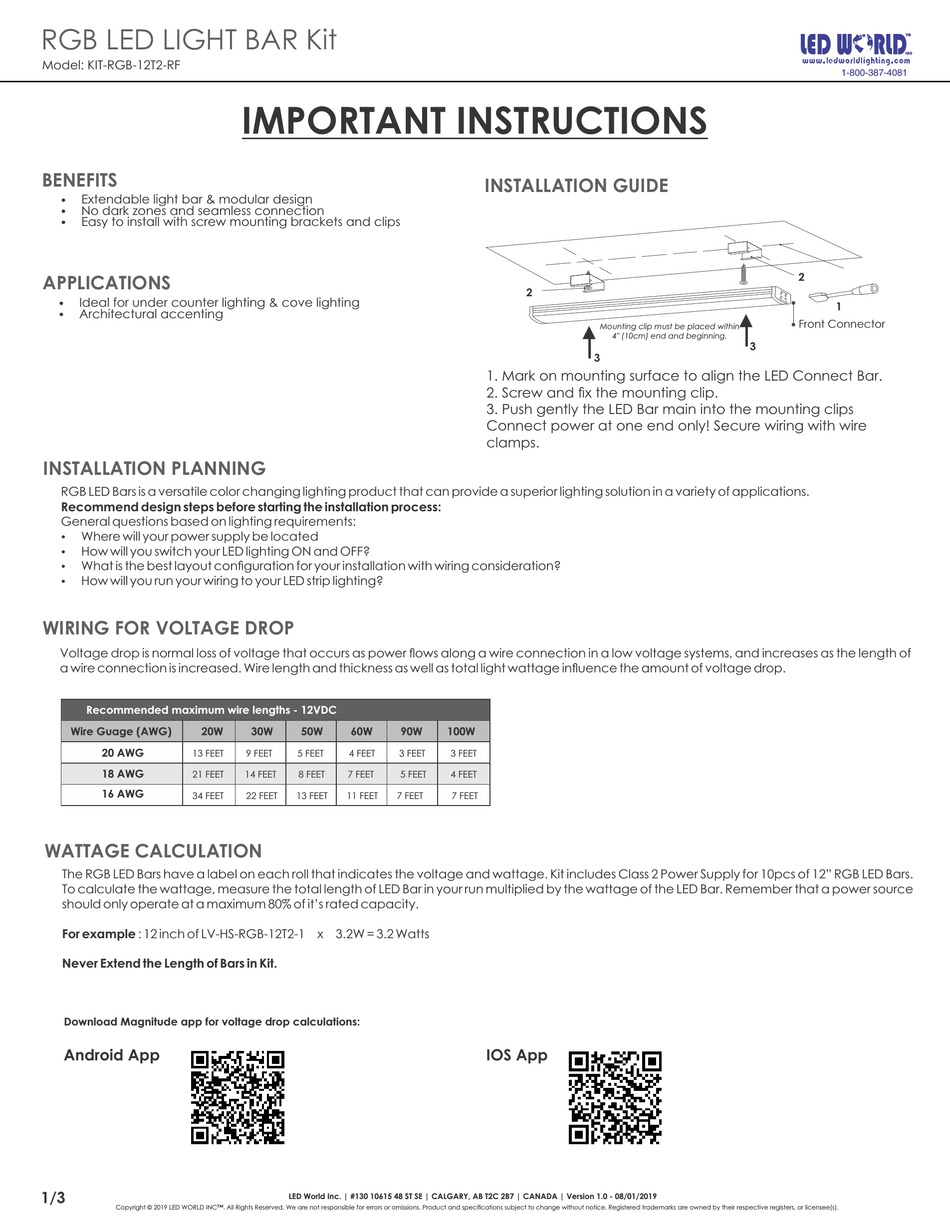

LED World KIT-RGB-12T2-RF Important Instructions

RGB LED LIGHT BAR Kit
Model: KIT-RGB-12T2-RF
BENEFITS
Extendable light bar & modular design
Ÿ
No dark zones and seamless connection
Ÿ
Easy to install with screw mounting brackets and clips
Ÿ
APPLICATIONS
Ideal for under counter lighting & cove lighting
Ÿ
Architectural accenting
Ÿ
INSTALLATION PLANNING
RGB LED Bars is a versatile color changing lighting product that can provide a superior lighting solution in a variety of applications.
Recommend design steps before starting the installation process:
General questions based on lighting requirements:
Where will your power supply be located
Ÿ
How will you switch your LED lighting ON and OFF?
Ÿ
What is the best layout conguration for your installation with wiring consideration?
Ÿ
How will you run your wiring to your LED strip lighting?
Ÿ
WIRING FOR VOLTAGE DROP
Voltage drop is normal loss of voltage that occurs as power ows along a wire connection in a low voltage systems, and increases as the length of
a wire connection is increased. Wire length and thickness as well as total light wattage inuence the amount of voltage drop.
Recommended maximum wire lengths - 12VDC
Wire Guage (AWG) 20W
20 AWG
13 FEET
18 AWG
21 FEET
16 AWG
34 FEET
WATTAGE CALCULATION
The RGB LED Bars have a label on each roll that indicates the voltage and wattage. Kit includes Class 2 Power Supply for 10pcs of 12" RGB LED Bars.
To calculate the wattage, measure the total length of LED Bar in your run multiplied by the wattage of the LED Bar. Remember that a power source
should only operate at a maximum 80% of it's rated capacity.
For example : 12 inch of LV-HS-RGB-12T2-1 x 3.2W = 3.2 Watts
Never Extend the Length of Bars in Kit.
Download Magnitude app for voltage drop calculations:
Android App
1/3
Copyright © 2019 LED WORLD INC™. All Rights Reserved. We are not responsible for errors or omissions. Product and specications subject to change without notice. Registered trademarks are owned by their respective registers, or licensee(s).
IMPORTANT INSTRUCTIONS
30W 50W 60W 90W
9 FEET 5 FEET 4 FEET 3 FEET
14 FEET 8 FEET 7 FEET 5 FEET
22 FEET 13 FEET 11 FEET 7 FEET
LED World Inc. | #130 10615 48 ST SE | CALGARY, AB T2C 2B7 | CANADA | Version 1.0 - 08/01/2019
INSTALLATION GUIDE
2
Mounting clip must be placed within
4" (10cm) end and beginning.
3
1. Mark on mounting surface to align the LED Connect Bar.
2. Screw and x the mounting clip.
3. Push gently the LED Bar main into the mounting clips
Connect power at one end only! Secure wiring with wire
clamps.
100W
3 FEET
4 FEET
7 FEET
IOS App
1-800-387-4081
2
1
Front Connector
3
