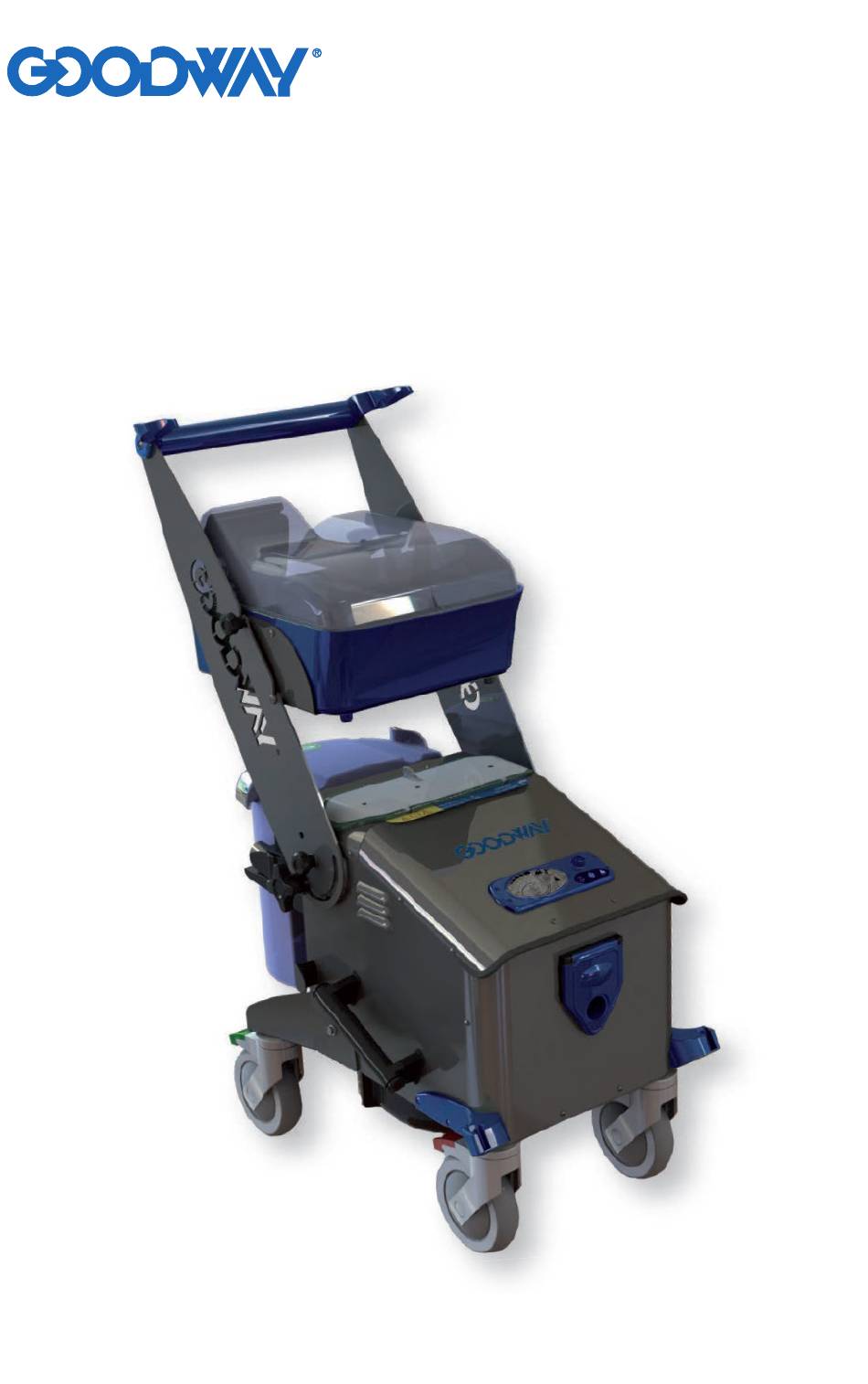

- Page 1 GVC-18VAC DRY STEAM CLEANER Operating and Maintenance Instructions Read before operating.
-
Page 2: Table Of Contents
EXPLODED VIEW 1 ..........................29 EXPLODED VIEW 2 ..........................30 EXPLODED VIEW 3 ..........................31 EXPLODED VIEW 4 ..........................32 EXPLODED VIEW 5 ..........................33 EXPLODED VIEW 6 ..........................34 EXPLODED VIEW 7 ..........................35 EXPLODED VIEW 8 ..........................35 EXPLODED VIEW 9 ..........................36 CHART ..............................37 GVC-18VAC 0819... - Page 3 O-rings approx. every 6 months. Thank you for purchasing Goodway’s GVC-18VAC-A. We appreciate your business and look forward to serving you in the future. As with all Goodway products, you can be assured that the finest quality components and workmanship have gone into this machine.
-
Page 4: Important Safety Instructions
Cleaning System with any of the openings blocked. Keep opening free of dust, lint, hair, or anything that reduce the Steam flow. Keep all parts of the body away from output nozzles and moving parts of the System. 10. Use extra care when using the Cleaning System on stairs. GVC-18VAC 0819... - Page 5 This ensures the steam hose and attachments heat up more quickly. GVC-18VAC 0819...
-
Page 6: The Revolution In Commercial Cleaning
Vapor-Steam Cleaner it's reach places with no strong no longer a problem for cleaning products. others. All equipment and contact surfaces can be cleaned perfectly. HACCP QUALIFICATION CERTIFIES THE HIGHEST CLEANING POWER GVC-18VAC 0819... -
Page 7: Description Of Equipment
ON/OFF button boiler Iron symbol ON/OFF button suction Display operating pressure ON/OFF button hot water module Operating temperature symbol Optical display suction mode Heating symbol Service indicator - probe cap Steam symbol Indicator water low Hot water module GVC-18VAC 0819... -
Page 8: Assembly / Preparation
THE FOLLOWING COMBINED FUNCTIONS ARE POSSIBLE DEPENDING ON THE APPLICATION AREA: • Steam cleaning • Steam cleaning with hot water • Suction • Suction and steam cleaning (steam suction) • Suction and steam cleaning with hot water function GVC-18VAC 0819... - Page 9 • Insert the connector of the steam suction hose into the socket until you hear the click of the safety hook. • To remove the hose from the appliance, press release button (A) and pull on the connector. GVC-18VAC 0819...
-
Page 10: Start-Up Steam
Always The mode is indicated with 1-2-3 on the start with mode 1 (minimal display (M) on the symbol for steam. steam volume). GVC-18VAC 0819... -
Page 11: Start-Up Steam With Hot Water Module
Press button (T3) briefly to turn suction off again. INFO: As there is liquid in the hose and in the extension pipes during suction operation, the sucker should not disconnected immediately after cleaning finishes. A short delay (approx. 30 seconds) is required. GVC-18VAC 0819... -
Page 12: Standard Accessories And Use
Glass surfaces, windows Rubber lip with brush attachment and mirrors. Almost all surfaces, window frames, sills, interior doors, kitchen cupboards, synthetic Rubber lip attachment surfaces, etc. Pre-cleaning of heavily soiled surfaces, windows, rubber or Nylon brush attachment synthetic doormats, etc. GVC-18VAC 0819... - Page 13 Three-jet nozzle For dry suction the joint nozzles can be used directly on the pipe or steam suction hose. Joint nozzle broad WARNING: Always adjust the steam volume and accessories for the surfaces you are cleaning! GVC-18VAC 0819...
-
Page 14: Reports
A lack of water in the hot water module is indicated by symbol (N) on the display, which now flashes rather than being permanently illuminated. There is also an acoustic signal. To refill the tank with water, follow the instructions in the section on “Filling hot water module (P)“ . GVC-18VAC 0819... -
Page 15: Shutting Down
Disconnect from the main power supply by pulling out the plug. Pull the steam suction hose out of the appliance for it to dry out. Store the appliance with open filter bowl in a well ventilated and frost-free room. GVC-18VAC 0819... -
Page 16: Technical Data
The manufacturer reserves the right to make technical changes or changes to accessories in the course of further development. Conforms to UL Std. 499 Conforms to UL Std. 1017 Cert. to CSA Std. C22.2 No.64 Cert. to CSA Std. C22.2 No.243 3037769 GVC-18VAC 0819... -
Page 17: Troubleshooting
Foreign body or dirt in the Check hose and accessory hose or accessory and clean as required. Strange noises while suction Polyester lifter dirty or not in Check the filter about dirt the right position and the position. GVC-18VAC 0819... -
Page 18: Error Codes Display
❏ Hot water module descaling ❏ Boiler descaling ❏ Filter change ❏ Additional work ❏ Hot water module descaling ❏ Boiler descaling ❏ Filter change ❏ Additional work ❏ Hot water module descaling ❏ Boiler descaling ❏ Filter change ❏ Additional work GVC-18VAC 0819... - Page 19 ❏ Hot water module descaling ❏ Boiler descaling ❏ Filter change ❏ Additional work ❏ Hot water module descaling ❏ Boiler descaling ❏ Filter change ❏ Additional work ❏ Hot water module descaling ❏ Boiler descaling ❏ Filter change ❏ Additional work GVC-18VAC 0819...
-
Page 20: Descaling Instructions Hot Water Module
Inbus key (label yellow ring “Hot Water Extraction”). Drain the reservoir and then screw the drain plug back in and tighten slightly. INFO : Up to 0.52 gal (1,9 L) of water may flow from the drain plug if the reservoir is full. GVC-18VAC 0819... - Page 21 Hold the handle over a suitably sized container to catch the mixture. Now press steam lever (P) until all the water has rinsed through. Repeat the procedure to rinse out any limescale and vinegar residue. Your appliance is now ready for use again. GVC-18VAC 0819...
-
Page 22: Descaling Instructions Boiler / Introduction
Descalers or vinegar may cause damage to surfaces. Wipe up drops immediately. Only use suitable and recommended descalers. “Read all labels and wear protection when handling descalers.“ Only perform descaling on a cooled appliance. Recommended descaler: ScaleBreak -SS. ® GVC-18VAC 0819... - Page 23 For thorough cleaning and descaling of the probe cap we recommend: a 5:1 ration of water: Scalebreak -SS solution. ® Pour the descaling mixture into a suitable container and put the probe cap into the mixture. GVC-18VAC 0819...
- Page 24 Drain the boiler and then re-close the drain plug using a ring or open-end spanner. WARNING: Descaler residue can be harmful to health and damage surfaces. Wipe up drops immediately. Read the information on the descaler packaging and follow the safety instructions. GVC-18VAC 0819...
- Page 25 Inbus key (label blue ring “Water Only”). Drain the reservoir and then screw the drain plug back in and tighten slightly. WARNING: You must perform steps (3a) (3d) twice to rinse out the final residue of limescale and descaler. GVC-18VAC 0819...
- Page 26 (A) on the display. Water Only Reservoir Button (A) INFO: The boiler must be refilled back to the minimum fill level following descaling. It may be necessary to press button (A) on the display several times until this is done. GVC-18VAC 0819...
-
Page 27: Maintenance / Cleaning
(only available from our authorised customer care centres). WARNING: Cleaning the filter Both reservoirs are protected from contamination by a filter. If you need to clean the filters, rinse them thoroughly with plenty of hot water and a neutral cleaning agent. GVC-18VAC 0819... -
Page 28: Care Of Accessories
Pos.(3): 2 O-rings on the brass spout Pos.(3) Checking O-rings on the extension pipes Check the O-rings on all extension pipes for damage: Pos.(4): 1: O-ring on the suction pipe Pos.(5): 2 O-rings on the steam spout Pos.(4) Pos.(5) GVC-18VAC 0819... -
Page 29: Exploded View 1
EXPLODED VIEW 1 GVC-18VAC 0819... -
Page 30: Exploded View 2
REV. MODIFY DESCRIPTION DESCRIPTION TL 207 - 1/8M LAT. -TPA-030 3001163 2377000 0550310 CABLA. GR.CALDAIA MINIVAP 120V 2002010 TUBO TEFLON 4x6 0008061 1044000 RACC. TL 207 - 1/8M LAT. -TPA-030 1003800 1128000 PRIMA EMISSIONE REV. MODIFY DESCRIPTION DESCRIPTION GVC-18VAC 0819... -
Page 31: Exploded View 3
PDM CODE REV. CODE MATERIAL A0300043 20109066590 DRAWN BY DATE APPROVED BY Andrea Amoretti 24/07/2017 COLOUR HEAT TREATMENT SURFACE TREATMENT THIS DRAWING IS PROPERTY OF TPA IMPEX S.P.A. COMPANY. ITS DISCL OSURE, EVEN PARTIAL, WITHOUT WRITTEN AUTHORIZATION, IS PR GVC-18VAC 0819... -
Page 32: Exploded View 4
EXPLODED VIEW 4 GVC-18VAC 0819... -
Page 33: Exploded View 5
GUAINA ISOLANTE VS D=12 ROSSO GUAINA ISOLANTE VS D=12 ROSSO GUAINA ISOLANTE VS D=12 ROSSO GUAINA ISOLANTE VS D=12 ROSSO GUAINA ISOLANTE VS D=12 ROSSO GUAINA ISOLANTE VS D=12 ROSSO PRIMA EMISSIONE GUAINA ISOLANTE VS D=12 ROSSO GVC-18VAC 0819 PRIMA EMISSIONE... -
Page 34: Exploded View 6
EXPLODED VIEW 6 PRIMA EMISSIONE REV. MODIFY DESCRIPTION DESCRIPTION KIT ACC. C/CESTELLO MINIVAP INOX G.WA ENG DESCRIPTION PDM CODE REV. A1400172 DRAWN BY Andrea Amoretti COLOUR THIS DRAWING IS PROPERTY OF TPA IMPEX S.P.A. COMPANY. ITS DISCL GVC-18VAC 0819... -
Page 35: Exploded View 7
EXPLODED VIEW 7 EXPLODED VIEW 8 GVC-18VAC 0819... -
Page 36: Exploded View 9
EXPLODED VIEW 9 GVC-18VAC 0819... -
Page 37: Chart
TANK, 2L, WITH FLOAT EXPLODED VIEW 1 63 GVC-18VAC-SPR13 PCB, DISPLAY, CONTROL BOARD EXPLODED VIEW 1 64 GVC-18VAC-SPR14(A) PCB, MAIN, 1800W, CONTROL BOARD (230V) EXPLODED VIEW 1 100 GVC-18VAC-SPR15 FAN, COOLING, 12VDC EXPLODED VIEW 1 130 GVC-18VAC-ACC2 KIT, ACCESSORIES, WITH BASKET... - Page 38 Visit: www.goodway.com P/N: MNL-GVC18VAC ©Copyright 2019 Goodway Technologies Corp., Stamford, CT USA Effective date August 7, 2019 Goodway is a Trademark of Crossford International. Goodway reserves the right to improve products; contact the factory for the latest configuration and uses.
