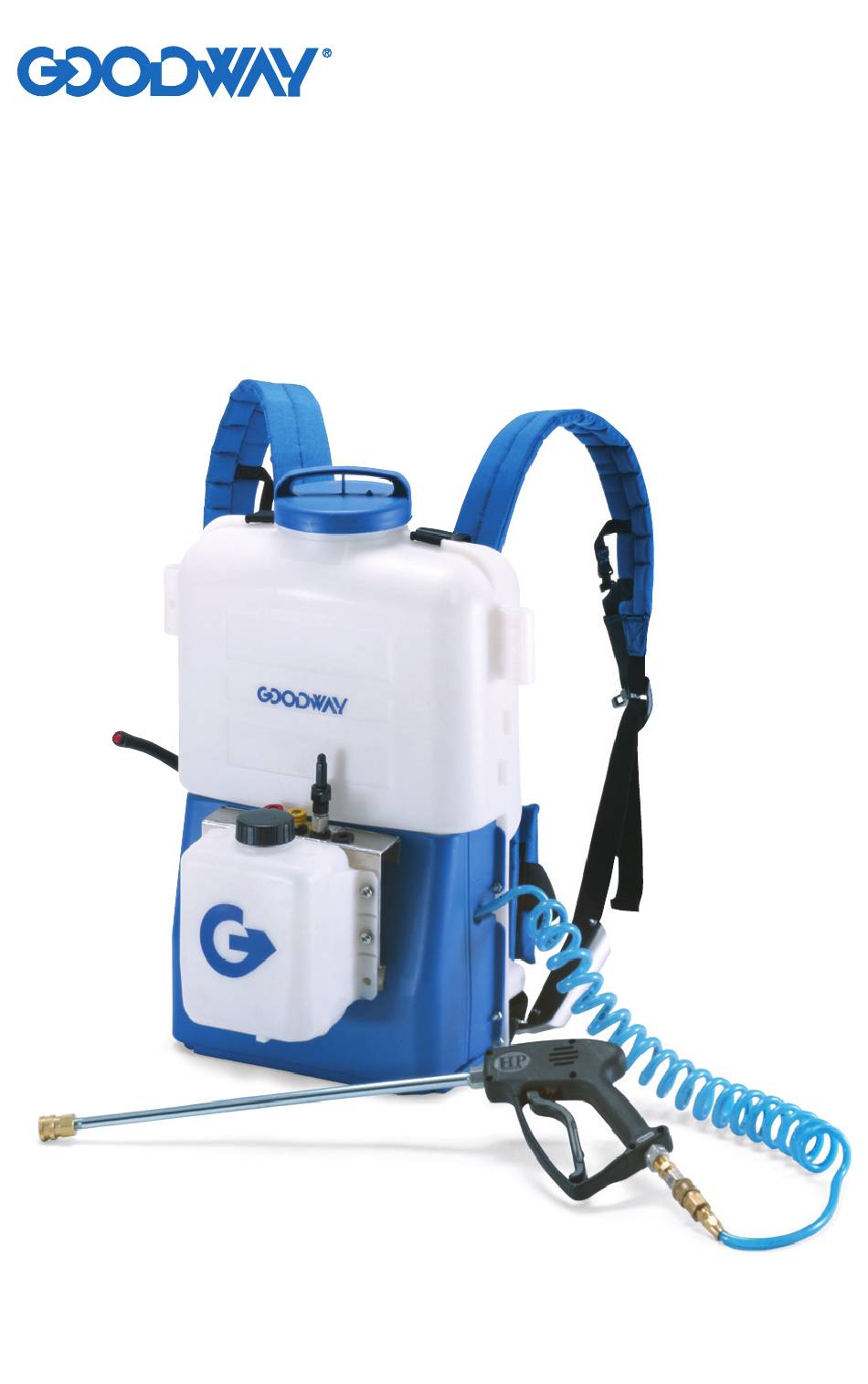

- Page 1 CC-100 COILPRO® COIL CLEANER Operating and Maintenance Instructions Read before operating.
-
Page 2: Table Of Contents
WIRING SCHEMATIC ...........................18 Thank you for purchasing this Goodway CC-100 Coil Cleaner. We appreciate your business and look forward to serving you in the future. As with all Goodway products, you can be assured that the finest quality components and workmanship have gone into this machine. -
Page 3: General Safety Rules
WARNING GENERAL SAFETY RULES WARNING: Read and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury. SAVE THESE INSTRUCTIONS 1. Work Area • K eep your work area clean and well lit. Cluttered benches and dark areas invite accidents. - Page 4 U se safety equipment. Always wear eye protection. Dust mask, non-skid safety shoes, hard hat, or hearing protection must be used for appropriate conditions. • C onsult Goodway or the chemical manufacturer about mixing or using unspecified chemicals. Mixing incompatible chemicals can be dangerous and life threatening.
-
Page 5: Specific Safety Rules
Many accidents are caused by poorly maintained tools. • U se only accessories that are recommended by Goodway for your model. Accessories that may be suitable for one tool may become hazardous when used on another tool. -
Page 6: Safety Checklist
Environment: Make sure that there is adequate ventilation into the work area. Do not operate machine in areas where flammable gases or liquids are present. Changing hoses and/or nozzles: ALWAYS turn machine off when changing hoses or nozzles. Never hold onto nozzle or point it at anyone with machine turned on. High-pressure water streams can cause serious bodily injury. - Page 7 (pump, plumbing, valves, etc). A full chemical compatibility check must be done first. CAUTION! IF YOU ARE UNSURE ABOUT CHEMICAL COMPATABILITY CALL GOODWAY AT ONCE BEFORE PUTTING CHEMICAL INTO THE COILPRO®!! •...
-
Page 8: Operating Instructions
Acid Battery, which will provide many hours of intermittent use when fully charged. With Goodway’s Charging System, it will take approximately 4-5 hours to charge a fully discharged battery. It is not necessary to fully discharge a Sealed Lead Acid battery before recharging. - Page 9 Attach the battery connection wires to the fresh battery. The black battery connection wires only on the Negative (Black) battery terminal and (RED) only on the positive connection. Replace the battery in the battery compartment and re-secure the strap and cover. Using the CoilPro®...
- Page 10 Non- approved chemicals may damage the internal components of the CoilPro® and void the warranty. Call Goodway, If unsure 1-800-370-2855. Priming the Pump Make sure the Power Switch is in the “Off” position.
- Page 11 Condenser or Evaporator Coil Cleaning: • Attach Foaming Nozzle to spray gun lance. • Squeeze the spray gun trigger and apply the foaming water/chemical solution evenly to coils. • If possible, let foaming solution cleaner sit for 5 minutes to penetrate into coils.
-
Page 12: Troubleshooting
MAINTENANCE Pump: Do not use water more than 125°F (52°C). NEVER run pump if there is ice in pump or outlet hose. To avoid freezing in the pump, run antifreeze through pump and hose(s) if stored overnight in freezing temperature. (The same bottle of antifreeze can be recycled numerous times. If it becomes discolored or diluted, replace with new.) TROUBLESHOOTING Problem... -
Page 13: Accessories / Spares
ACCESSORIES / SPARES Hoses & Nozzles: The nozzle orifices (holes) affect pressure. Over time, water pressure will wear the orifices in your nozzle. A worn nozzle can result in pressure drop and reduce the effectiveness of your coil cleaning. Nozzles need to be replaced periodically as normal wear occurs. - Page 14 Charging System: • Charge Time: Approximately • De-sulfation of battery: The 4-5 hours to charge a fully charger will remove loose discharged battery. sulfation and increase the battery life. (Hard sulfation • Maintain full charge & no cannot be reversed). overcharging: The unit can be left plugged in indefinitely •...
-
Page 15: Parts List
PARTS LIST CC-100 Exploded View 9685-2 Main Tank 9619 Foaming 9695 Push Nozzle Button 9688 Chemical Tank QDN-0003R QDN-1503Y Pin Point 15° Spray CC-100 1220... - Page 16 5821 Gun Only 9687 Tank 9622 Spray Gun Assembly 9684 Backpack Vest 9697 Hose 9699 Wand Sheath 9622-1 Spray Lance Only CC-100 1220...
- Page 17 935 Hose to Chemical Tank 9685-1 Pump 9682 Filter 9694 Solenoid 6025 Siphon Injector 9685-4 Fuse 9689 Battery 9685-3 On/Off Switch CC-100 1220...
-
Page 18: Wiring Schematic
WIRING SCHEMATIC BATTERY CHARGER Fuse Illuminated Rocker Switch Motor/ Solenoid Battery Pump Valve Maintained Contact Pushbutton CC-100 1220... - Page 19 NOTES CC-100 1220...
- Page 20 Visit: www.goodway.com P/N CC-100 ©Copyright 2020 Goodway Technologies Corp., Stamford, CT USA Effective date December 7, 2020 Goodway is a Trademark of Crossford International. Goodway reserves the right to improve products; contact the factory for the latest configuration and uses.
