Windsor 1391 Fitting Instructions

TOUCHPAD ELECTRONIC DEADBOLT LOCK

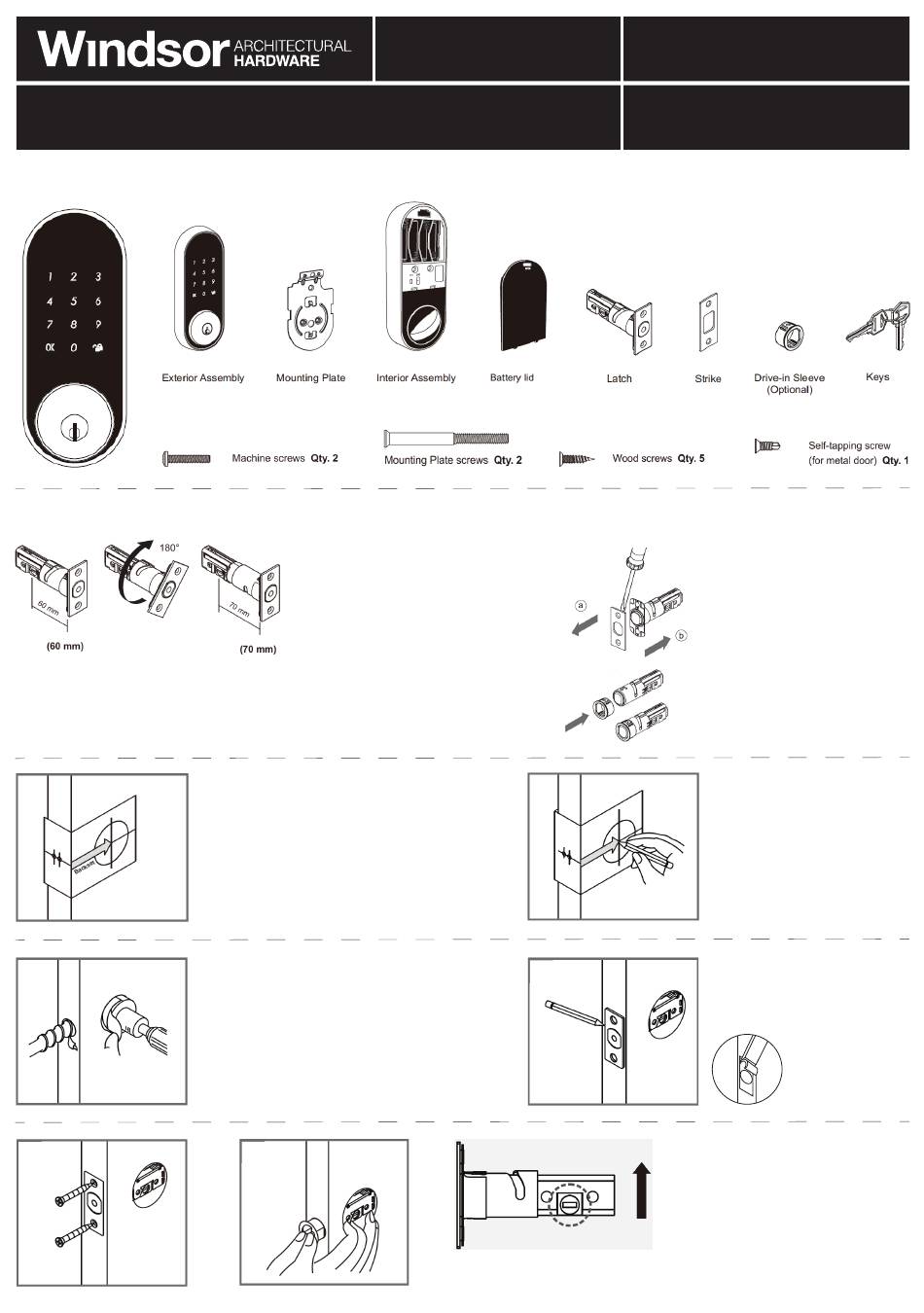

Package Contents
Screws
Installation
To view an easy to follow how-to video for installing this product visit windsorhardware.co.nz/installation
1. Adjust the latch to the desired
backset (60mm or 70mm).
Backset is the distance from the
door edge to the centre of the
hole on the door face.
To adjust the latch to the 70mm
backset, rotate the latch until it
stops. Reverse the direction to
return to the 60mm backset.
3. Establish the height and backset
for the lock on the door.
5. Use the marks as a guide for drilling a
25mm (1") diameter hole through the
door edge to a depth of at least
Ensure this hole is square to the door.
Then drill a 54mm diameter hole
through the door face for the lockset.
We recommend using a 54mm hole
saw. For clean cut-outs, drill from both
sides, meeting in the middle of the door.
FITTING INSTRUCTIONS
90mm.
0800 607 028
sales@windsorhardware.co.nz
windsorhardware.co.nz
Product code: 1391
2. Determine which latch mounting
method will be used (square plate
or drive-in) and make the
necessary adjustments.
No adjustments are required for
the square latch face plate.
a. Use a flat screwdriver to
separate the face plate.
b. Align the drive-in sleeve and
snap it into the latch case.
4. Use the template provided as an
indication to mark the centre of
the circle on the door face and
the centre of the door edge.
6. Insert the latch, scribe around
the faceplate, remove, then
chisel out 4mm deep
enable the latch faceplate to sit
flush with the door edge.
7. Remove any loose saw dust, insert
the latch and secure it with the two
wood screws provided. Make sure the
cross is on the bottom of the latch.
Please do not fully tighten the screws
until the lock is completely installed.
For the drive-in latch, drive the latch
into the hole on the edge of the door.
© WINDSOR ARCHITECTURAL HARDWARE
recess to
Version 1
