Windsor 1331 Fitting Instructions

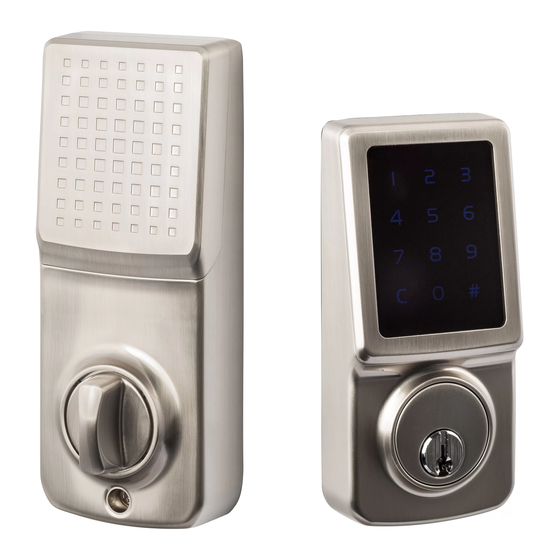

TOUCHPAD ELECTRONIC DEADBOLT LOCK
Safety Information
Care & Maintenance Information
Package Contents
AA 2-1/8" Mounting Bolt QTY. 2
BB 1-1/4" Screw QTY. 1
Do not attempt to disassemble any internal components of the lockset personally.
Do not drop or hit the lockset. Too much shock may result in permanent damage.
Do not use pins or sharp objects to press on the keyboard.
Always create a backup of information you want to keep, such as the programming and user codes.
Change the programming code before operating this lockset.
Remove lock, or do not install lock, prior to painting your door.
Periodically clean with mild soap and a soft cloth only.
Do not use any abrasives or chemical products containing alcohol, benzene, hydrochloric acid or nitric acid
and avoid using sharp or abrasive objects to clean this lockset.
Do not let any water or liquid into lockset during installation process.
CC 13/16" (20mm) Screw QTY. 1
DD 5/16" Screw QTY. 2

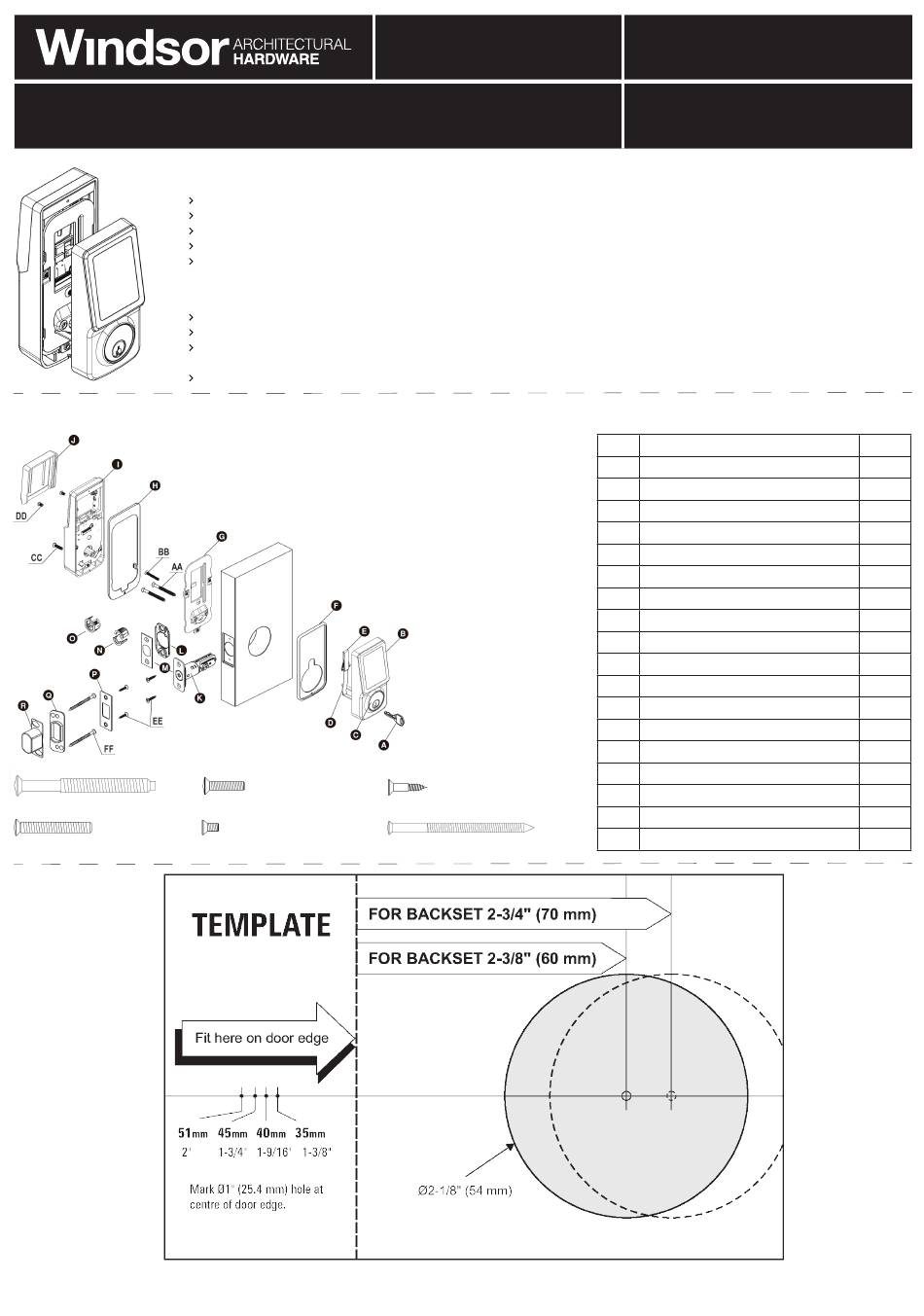

FITTING INSTRUCTIONS
EE 3/4" Wood Screw QTY. 4
FF 3" Wood Screw QTY. 2
PRINT AT 100% SCALE
0800 607 028
sales@windsorhardware.co.nz
windsorhardware.co.nz
Product code: 1331
Part Description
A Key
B Exterior Assembly (Deadbolt Touchpad)
C Cylinder
D Tailpiece
E Power Cable
F Exterior Gasket (Optional)
G Mounting Plate
H Interior Gasket (Optional)
I Interior Assembly (Receiver)
J Battery Cover
K Deadbolt Latch
L Latch Bottom Plate (Optional)
M Latch Square Or Radius Faceplate (Optional)
N Drive-in Sleeve (Optional)
O Drive-in Sleeve (Optional)
P Striker Plate
Q Reinforced Striker Plate
R Dust Box
© WINDSOR ARCHITECTURAL HARDWARE
Quantity
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Version 1
