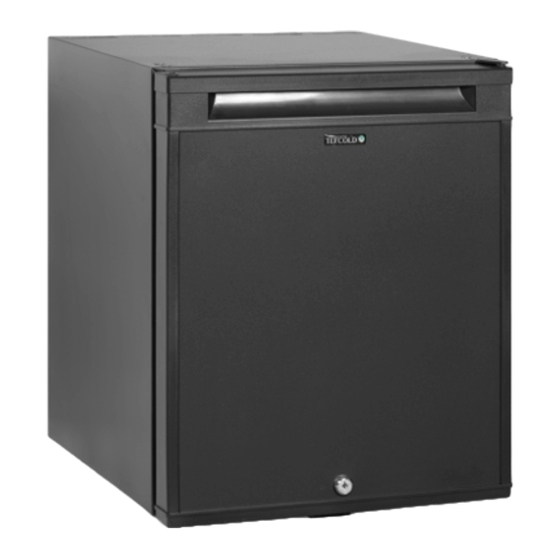

COMPRESSOR MINIBAR
PLEASE READ CAREFULLY AND FOLLOW ALL THE INSTRUCTIONS
BEFORE YOU START USING THE MINIBAR AND SAVE THIS
MANUAL FOR FUTURE REFERENCE
A. Caution: Safety Instructions ............................................ 02
B. Technical Specifications ................................................. 03
C. Operating Instructions ................................................... 05
D. Ventilation Requirement ................................................. 07
E. Troubleshooting ............................................................... 08
Contents
1
Advertisement
Table of Contents
Related Manuals for Tefcold TM35C
Summary of Contents for Tefcold TM35C
- Page 1 COMPRESSOR MINIBAR PLEASE READ CAREFULLY AND FOLLOW ALL THE INSTRUCTIONS BEFORE YOU START USING THE MINIBAR AND SAVE THIS MANUAL FOR FUTURE REFERENCE Contents A. Caution: Safety Instructions ..........02 B. Technical Specifications ..........03 C. Operating Instructions ........... 05 D.
- Page 2 A. CAUTION: SAFETY INSTRUCTIONS 1. Before placement of the appliance in the cabinet, please ensure the ventilation openings in the cabinet are abided by for optimal minibar cooling performance. 2. Ensure that the ventilation openings in the cabinet or built-in structure is clear of obstruction to enable perfect heat dissipation.
- Page 3 B. TECHNICAL SPECIFICATIONS Model: ······································································· TM35C Dimension: ···································· W/D/H 402/440/510mm Capacity:··································································· 27 litres Door: ·························································· Solid Foam Door Voltage: ································································· 220-240V Frequency: ···································································· 50Hz Power: ··········································································· 50W Cable Length:································································· 1.2m Inner Light: ··································································· 0.1W Energy Consumption: ··································· 0.15kWh/24hrs Energy Class: ····························································· Class D Packing Dimension: ·····················...
- Page 4 Model: ····································································· TM45GC Dimension: ···································· W/D/H 402/485/565mm Capacity:··································································· 38 litres Door ········································ 3 layer Tempered Glass Door Voltage: ································································· 220-240V Frequency: ···································································· 50Hz Power: ··········································································· 50W Cable Length:································································· 1.2m LED Power: ··································································· 0.1W Energy Consumption: ··································· 0.35kWh/24hrs Energy Class ······························································ Class G Packing Dimension: ·······················...
- Page 5 C. OPERATING INSTRUCTIONS 1. Please ensure the ambient temperature around the minibar is 30°C or less for optimal cooling performance. 2. Upon plugging the minibar to the power point, the minibar will start to work for 5 hours continuously in a SLEEP mode. 3.
- Page 6 silent when it is out of the working periods. SLEEP MODE Press once and the screen will display “SL” and the SLEEP mode is activated. During sleep mode, the compressor stops working for 1 hour and is completely silent. The minibar returns to the default working mode after 1 hour automatically.
- Page 7 D. VENTILATION REQUIREMENT 1. Good air ventilation within the cabinet / in-built structure is strongly recommended to ensure the minibar functions at its best cooling performance and its lifespan is optimized. 2. Please refer to the possible ventilation diagrams applicable for the minibar.
- Page 8 E. TROUBLESHOOTING CHANGING THE DOOR HINGE This minibar has the option of changing the door opening from either the left or right side. The unit’s default door opening is from left to right. Should you desire to reverse the opening direction, please follow the instructions below.
