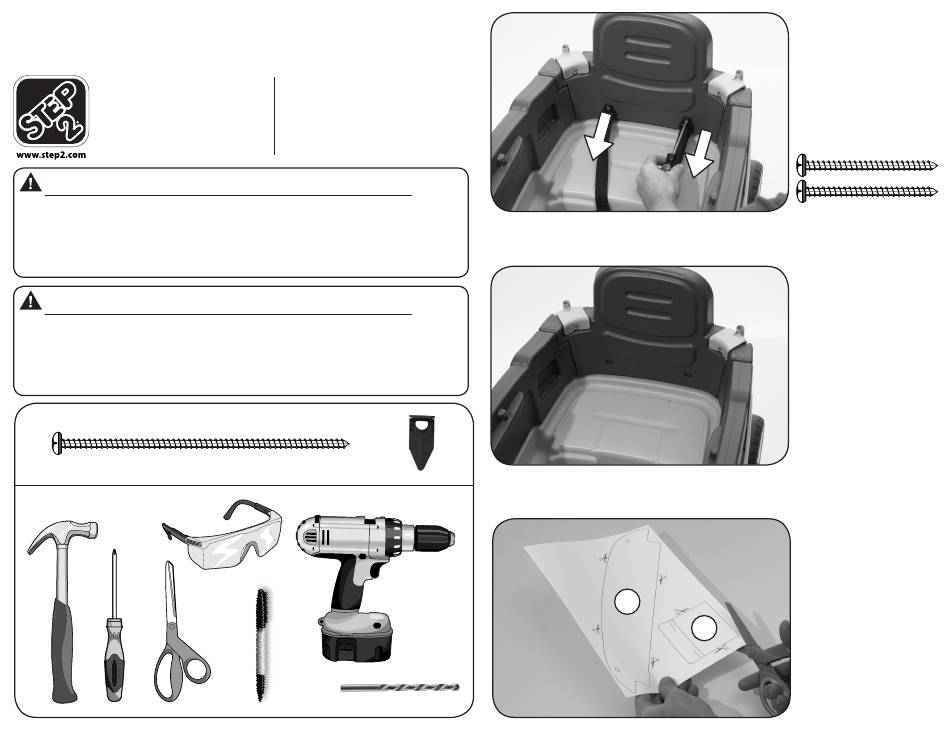

8329
Whisper Ride Touring Wagon
Seat Belt Repair Kit
Trousse de réparation pour les ceintures de sécurité
For assistance or replacement
parts please contact :
The Step2 Company, LLC.
10010 Aurora-Hudson Rd.
Streetsboro, OH 44241 USA
1-800-347-8372 USA & Canada Only
(330)656-0440
www.step2.com
WARNING:
Wagon back rests may dislodge from wagon body
when using seat belts attached to the back rests. This
seat belt repair kit with screws is designed to prevent
this from happening.
AVERTISSEMENT
Les dossiers du chariot peuvent se déloger de la carrosserie du
chariot lorsque les ceintures de sécurité sont utilisées en étant
fixées aux dossiers. Cette trousse de réparation incluant des
vis est conçue pour empêcher les dossiers de se déloger.
2 x 3-1/4" (8,255 cm)
Step2 UK LTD
Great Bank Road
Wingates Industrial Estate
BOLTON
BL5 3XU
Uk freephone: 0800 393159
Step2 UK website: www.step2uk.com
4 x
5/16"
(7,93 mm)
1
2
3
A
Remove and save
screws, seat belts
Retirer et mettre de
côté les vis et les cein-
tures de sécurité
Backrest with seat belt
removed
Dossier sans ceinture
de sécurité
Cut out templates
A & B. (Page 7)
Découper les gab-
arits A et B. (page 7).
B
192997
11/1/13
1
