Summary of Contents for Sportable Scoreboards SCM-391

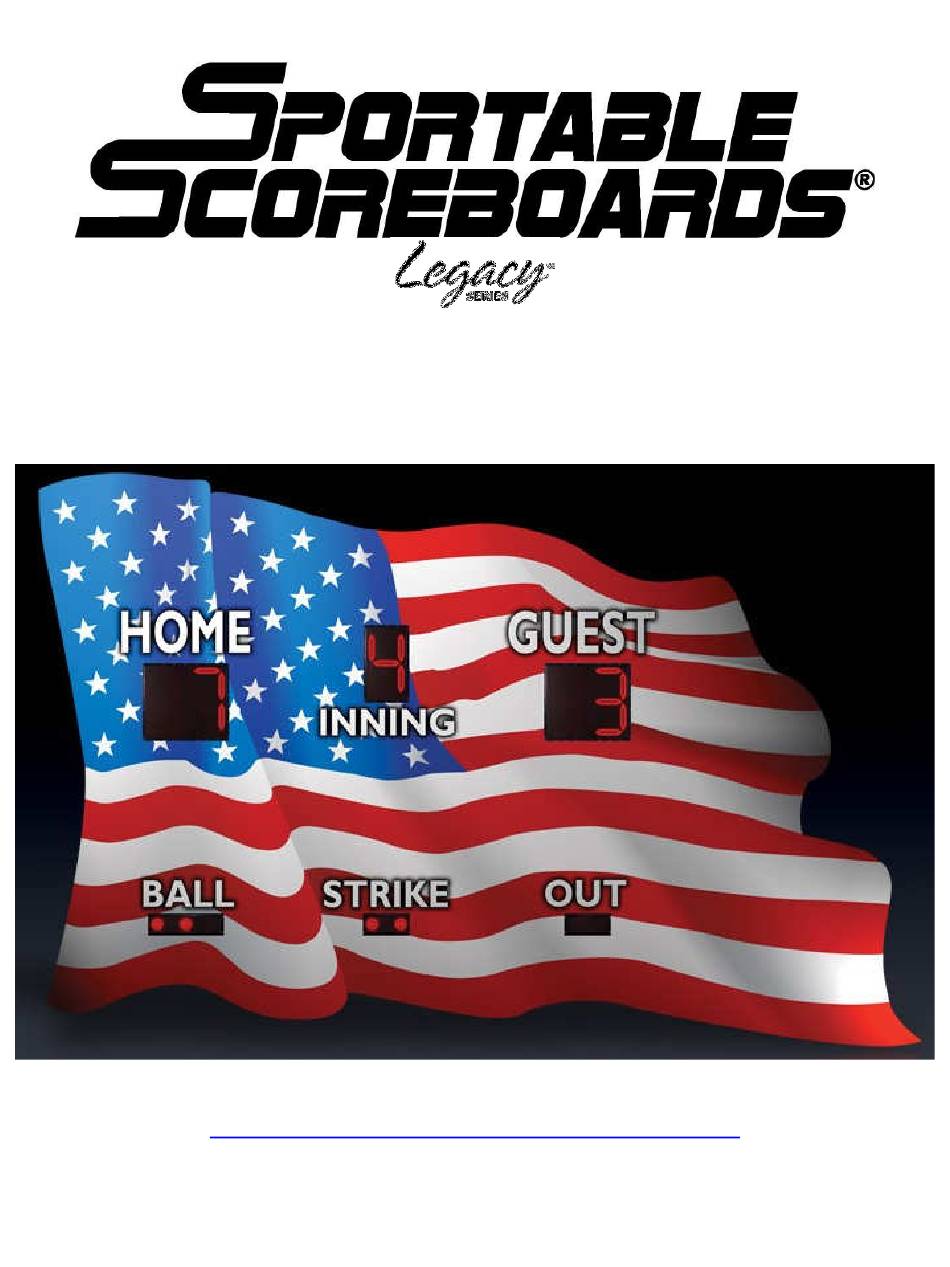

- Page 1 INSTALLATION INSTRUCTIONS MODEL SCM-391 www.sportablescoreboards.com...
-
Page 2: Table Of Contents
Table of Contents American Flag ................................3 THE SCOREBOARD SYSTEM SHOULD INCLUDE THE FOLLOWING PARTS: ......3 INSTRUCTIONS FOR REPORTING SHIPPING DAMAGE ................. 3 INSTALLATION OVERVIEW ..........................4 PRODUCT SPECIFICATIONS ..........................4 Overall Dimensions: ............................4 Weight: ..................................4 Mounting Recommendations: ........................4 Power Requirements: ............................ -
Page 3: American Flag
American Flag MODEL SSL3011L4 NOTE TO INSTALLERS: PLEASE FILL OUT AND SIGN THE INSTALLATION/WARRANTY FORM ON THE LAST PAGE OF THIS MANUAL AND RETURN THE MANUAL TO THE INDIVIDUAL IN CHARGE OF THE SCOREBOARD UPON COMPLETION OF INSTALLATION. The scoreboard and all accompanying accessories have been carefully inspected and tested before leaving the factory. -
Page 4: Installation Overview
If damage is discovered after delivery, call the delivery company to report the concealed damage and please call the manufacturer immediately to report the damage. Concealed damage must be reported within 5 days after delivery date. If the damages are found after this time, the manufacturer will not be responsible for damage. -
Page 5: Determining Location And Orientation
Keyboard Controller (1) 120-volt, 15-amp, 60 Hz grounded AC circuit in a standard duplex outlet (optional if an internal battery pack was purchased with the controller or using a handheld controller) Cable Recommendations (for cable-controlled systems only): Four conductor cable – 28 gauge, twisted pair (two pairs), shielded data cable DETERMINING LOCATION AND ORIENTATION The scoreboard should be positioned so that the greatest number of spectators can easily view it. -
Page 6: Installing The Mounting Poles/Beams
NOTE: The length of Beam/Pole above ground should be calculated by including the height of top and/or bottom sponsor panels if they are part of the installation. INSTALLING THE MOUNTING POLES/BEAMS 1. The following information for installing the mounting poles/beams is for suggestions only. Local codes, field placement, scoreboard options, customer preference, and other special considerations will determine the above ground height and total length of the poles/beams. -
Page 7: Determining Installation Type
6. The required dimensions for the footers vary from city to city and state to state depending on the soil conditions, scoreboard size, and the building sand sign codes for your area. Consult with the local building officials for the required pole sizes and footer construction regarding this installation. A local an architect, structural engineer, or sign installer may also be a source of assistance. - Page 8 5. Connect all crossover cables between cabinets as in the “Cable Connections” image above, making sure the red stripe on the edge of the ribbon cables are aligned when connected. The power harnesses are male/ female and cannot be connected incorrectly. 6.
- Page 9 NOTE: IF THE WIRES IN YOUR CABLE DO NOT COLOR MATCH WHAT IS SHOWN ABOVE, CONNECT TO THE TERMINALS WITH THE BLACK, GREEN, AND WHITE CONDUCTORS. DO NOT CONNECT A WIRE TO THE RED TERMINAL. MATCH THE SAME COLORS IN YOUR CABLE TO THE BLACK, GREEN, AND WHITE WIRES ON THE BACK OF THE WALL PLATE AT THE SCORING LOCATION.
-
Page 10: Running/Connecting The Control Cable
RUNNING/CONNECTING THE CONTROL CABLE (For scoreboards with Wireless Remote Control, skip this step.) The control cable may be buried with or without conduit if the cable is direct burial-rated. Direct burial-rated cable in conduit is recommended for extended trouble free use. If the cable is not direct burial-rated cable, then it must be buried in a sealed, watertight conduit. -
Page 11: At The Scorekeeper's Location
gang junction box. The keyboard will connect to the receptacle on the junction box cover via the included 20-ft. control cable. At the scorekeeper’s location: 1. Bring the control cable into a 2x4 single-gang junction box located within 10 feet of the scorekeeper. -
Page 12: Running/Connecting The Electrical Service
5. NOTE: If the colors of the wires in the control cable differ from those referenced on the label or shown in the following diagrams, refer to the notes you made when connecting the control cable to the junction box cover at the scorekeeper’s location. Ensure that each lead on the junction box cover is connected to the same color lead on the scoreboard terminal block, regardless of the color(s) of the wires in the control cable that connect them. -
Page 13: Testing The Installed System
CIRCUIT BREAKER. IF ACCESS TO THE CIRCUIT BREAKER IS NOT AN OPTION, INSTALL A SWITCH SOMEWHERE THAT IS ACCESSIBLE, EVEN IF UNDER THE SCOREBOARD AT AN ABOVE AVERAGE HEIGHT. TESTING THE INSTALLED SYSTEM NOTE: Please refer to the OPERATORS MANUAL on the CD, or included with the system to operate the scoreboard. - Page 14 NOTE: Always turn both the controller and the scoreboard OFF after each use. If the controller is turned OFF but the scoreboard remains ON, (or if the controller loses communication with the scoreboard), the scoreboard’s STRIKE digit will begin to flash. This feature is intended to remind the user to turn power to the scoreboard OFF after each use.
-
Page 15: Important
IMPORTANT Warranty Activation/Installation & Completion Sign Off Sheet NOTE: This sheet must be completely filled out and returned/faxed (270) 753-3773 to Scoreboard Service Company before your warranty can be activated. Your Serial Number _______________________________________ Your Model Number _______________________________________ Date Purchased _______________________________________ Sales Agent _______________________________________...
