Summary of Contents for Sportable Scoreboards 2207LED

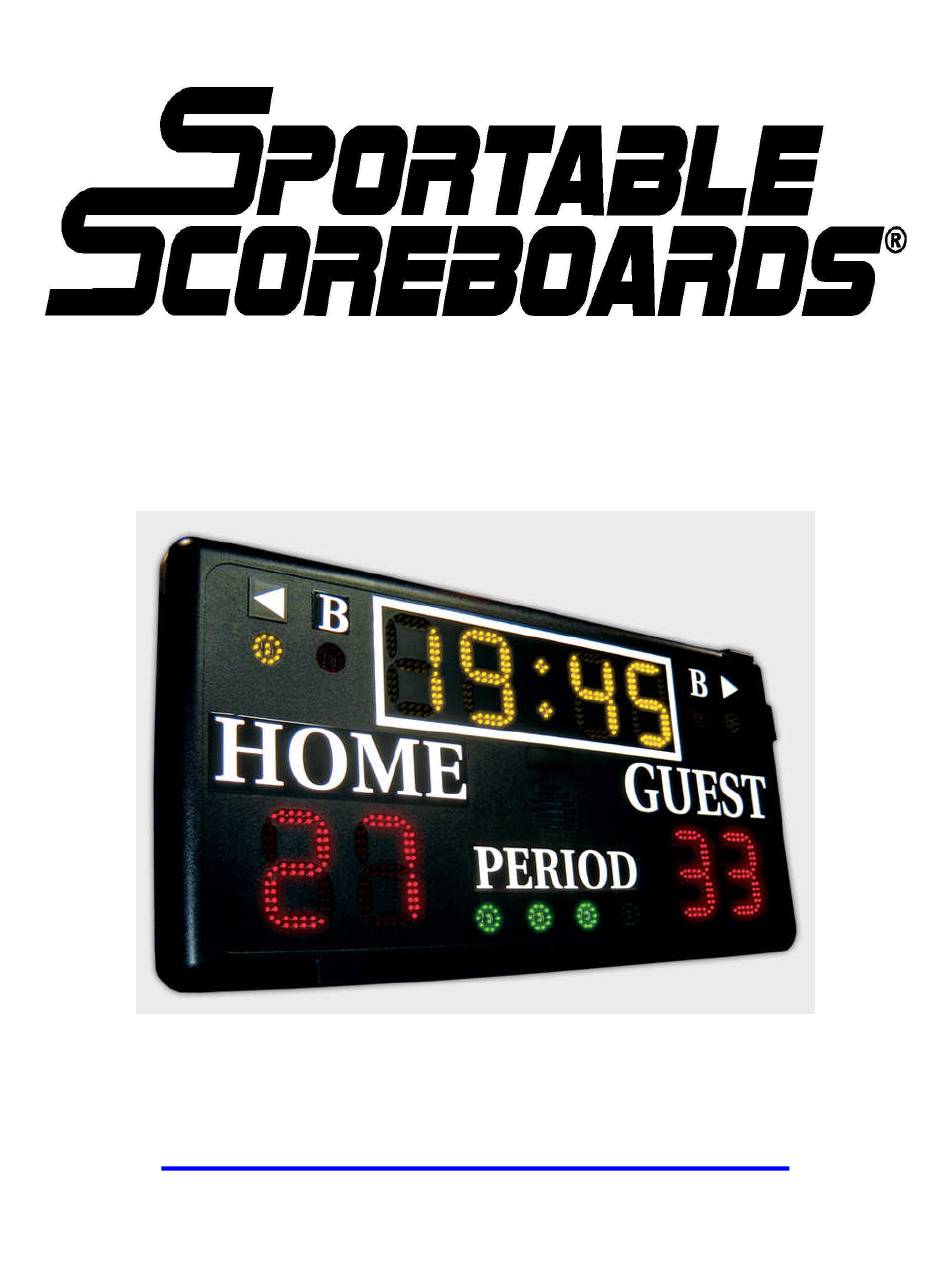

- Page 1 INSTALLATION INSTRUCTIONS MODEL 2207LED www.sportablescoreboards.com...
- Page 2 Table of Contents MODEL 2207LED ..............................3 4’ X 2’ WALL-MOUNTED SCOREBOARD ....................... 3 THE SCOREBOARD SYSTEM SHOULD INCLUDE THE FOLLOWING PARTS: ......3 PRODUCT SPECIFICATIONS ..........................4 Overall Dimensions: ............................4 Weight: ..................................4 Power Requirements: ............................4 MOUNTING THE SCOREBOARD TO A WALL ....................4 CONNECTING THE CABLES..........................

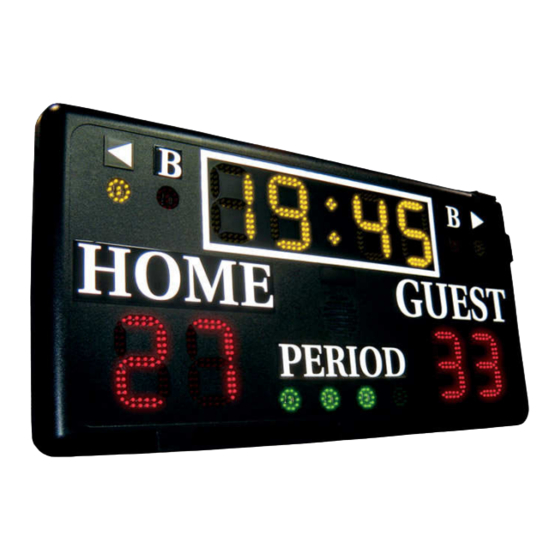

- Page 3 MODEL 2207LED 4’ X 2’ WALL-MOUNTED SCOREBOARD NOTE TO INSTALLERS: PLEASE RETURN THIS MANUAL TO THE INDIVIDUAL IN CHARGE OF THE SCOREBOARD UPON COMPLETION OF INSTALLATION. The scoreboard and all accompanying accessories have been carefully inspected and tested before leaving the factory.
- Page 4 PRODUCT SPECIFICATIONS Overall Dimensions: 4’ L x 2’ W x 4” D, shipped in one (1) section Weight: Hanging weight: 35 lbs. Shipping weight: 40 lbs Power Requirements: Scoreboard: 1. 1 - 120-volt, 20-amp, 60 Hz grounded AC circuit. Ideally, this will be a dedicated circuit. 2.
- Page 5 CONNECTING THE CABLES 1. Connect the 9-pin end of the 10’ interface cable to the scoreboard. 2. Connect the 100’ female end to the male end of the 10’ interface cable if needed. 3. Connect the 5-pin end to the controller. 4.
- Page 6 IMPORTANT! Warranty Activation/Installation & Completion Sign Off Sheet NOTE: This sheet must be completely filled out and returned/faxed (270) 753-3773 to Scoreboard Service Company before your warranty can be activated. Your Serial Number _______________________________________ Your Model Number _______________________________________ Date Purchased _______________________________________ Sales Agent _______________________________________...
