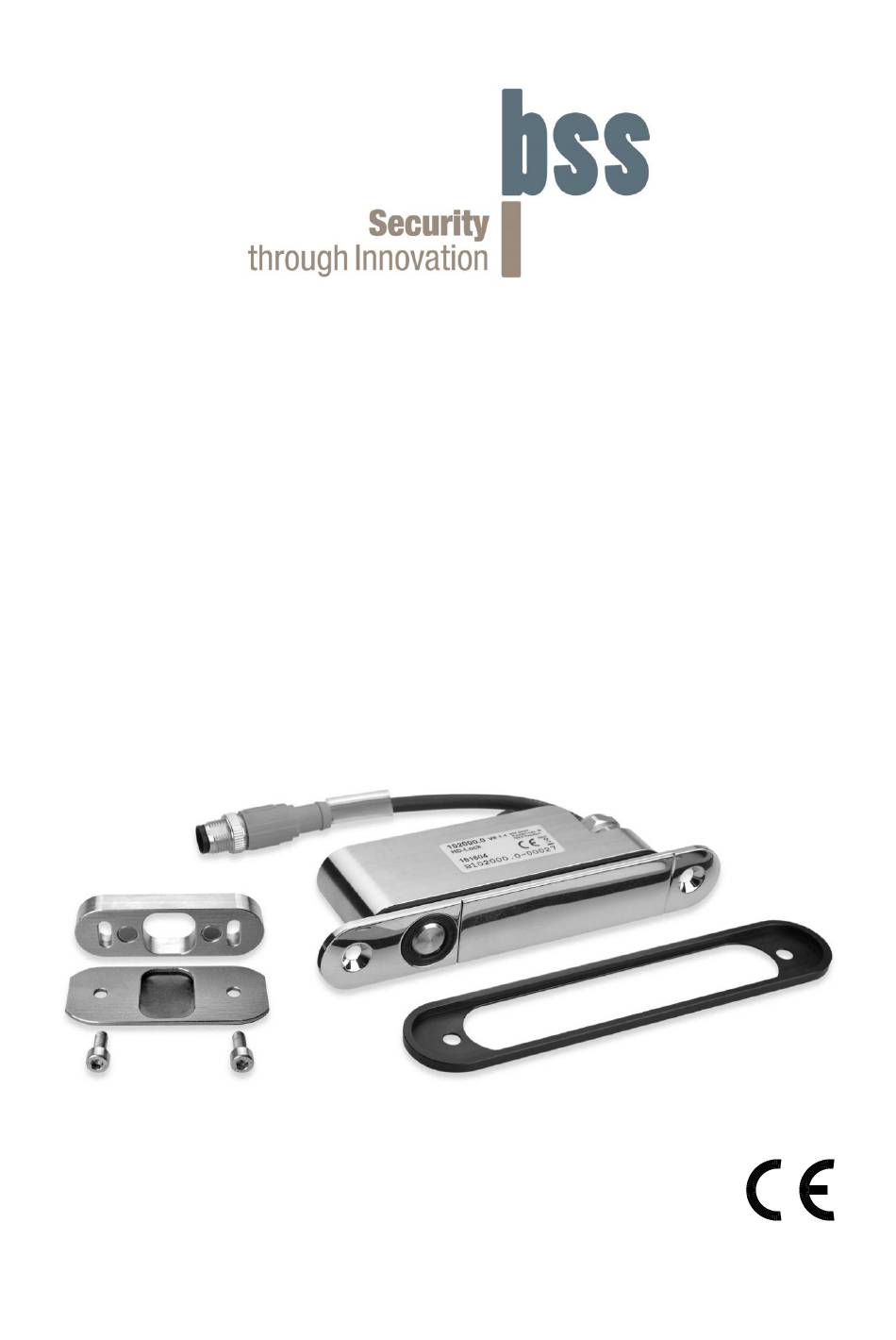

  • Page 1 User Manual Electromechanical Locking Device Art. No. 102000.2 (HD-Lock Modbus / CAN-Bus)
  • Page 2: Table Of Contents

    Locking Device HD-Lock 102000.2 Manual Content General ....................... 3 Characteristics of the locking device ............... 3 Scope of delivery ....................3 Installation ....................4 General installation ....................4 Door Stroke direction ....................7 Switching Point (Door-Closed/Open_) ..............8 Electrical interface ..................9 Commissioning ..................
  • Page 3: General

    Locking Device HD-Lock 102000.2 Manual General The locking device HD-Lock has been designed for use in doors, hatches, garage doors and rolling gates. Industrial applications with high requirements as well as applications in the maritime area can be covered with this product.
  • Page 4: Installation

    Locking Device HD-Lock 102000.2 Manual 2 Installation 2.1 General installation Important: When installing the HD lock, measures must be taken to prevent galvanic corrosion (recommendations: Teflongel, POM Pocket, coroplast insert). Repairs to the device and interventions inside of the device are only allowed by the manufacturer. Unauthorized repairs and interventions make it difficult to assess a warranty claim and may result in the loss of warranty.
  • Page 5 Locking Device HD-Lock 102000.2 Manual Figure 2 Product Drawing Figure 3 Recess for striking plate in door leaf Page 5...
  • Page 6 Locking Device HD-Lock 102000.2 Manual When installing the striking plate (counterpart), the insulating layer must be inserted first. The insulating layer prevents against galvanic corrosion. Then the base plate and the striking plate are installed. The striking plate structure is fastened with two M5 x 20 mm DIN 912 screws.
  • Page 7: Door Stroke Direction

    Locking Device HD-Lock 102000.2 Manual 2.2 Door Stroke direction In the delivery state, the automatic detection of the door stroke direction is active ("Direction" = "0"). The automatic detection of the door stroke direction only works after the HD lock and the striking plate (counterpart) has been installed correctly, and after opening and closing the door once.
  • Page 8: Switching Point (Door-Closed/Open_)

    Locking Device HD-Lock 102000.2 Manual 2.3 Switching Point (Door-Closed/Open_) Software The switching point of the door is set from factory. The door is detected if the door leaf with the installed striking plate is congruent to the locking device with a tolerance of ± 2-3 mm.
  • Page 9: Electrical Interface

    Locking Device HD-Lock 102000.2 Manual 3 Electrical interface Electrical connection is performed by using a 12-pole M12 male connector. Figure 7 Pole assignment M12 connector – male side view Inputs and outputs of the locking device Signal Wire color Description...
  • Page 10: Commissioning

    Locking Device HD-Lock 102000.2 Manual 4 Commissioning In the delivery state, after the operating voltage has been applied, the bolt is retracted. To extend the bolt, the door must be closed and the striking plate (counterpart) must be congruent to the locking device. If the door is closed and the “BoltExtend”...
  • Page 11: Serial Interface

    Manual 6 Serial interface The HD-Lock 102000.2 has the possibility to communicate either by Modbus® or by CAN bus. The bus to be used is set via the BUS-SELECT wire (pin 6) at the time of the commissioning. If the BUS-SELECT wire remains uncontacted or is connected to GND, the Modbus ® is used.
  • Page 12: Technical Data

    Locking Device HD-Lock 102000.2 Manual 7 Technical data Certifications Power Supply / operation Voltage Range 24 V DC / 10... 30 V DC Power input min. 0,5 W / max. 4,6 W Electrical fuse protection @ 24 V (tripping characteristic Each device must be fused with 0.5 A...
  • Page 13: Notes
