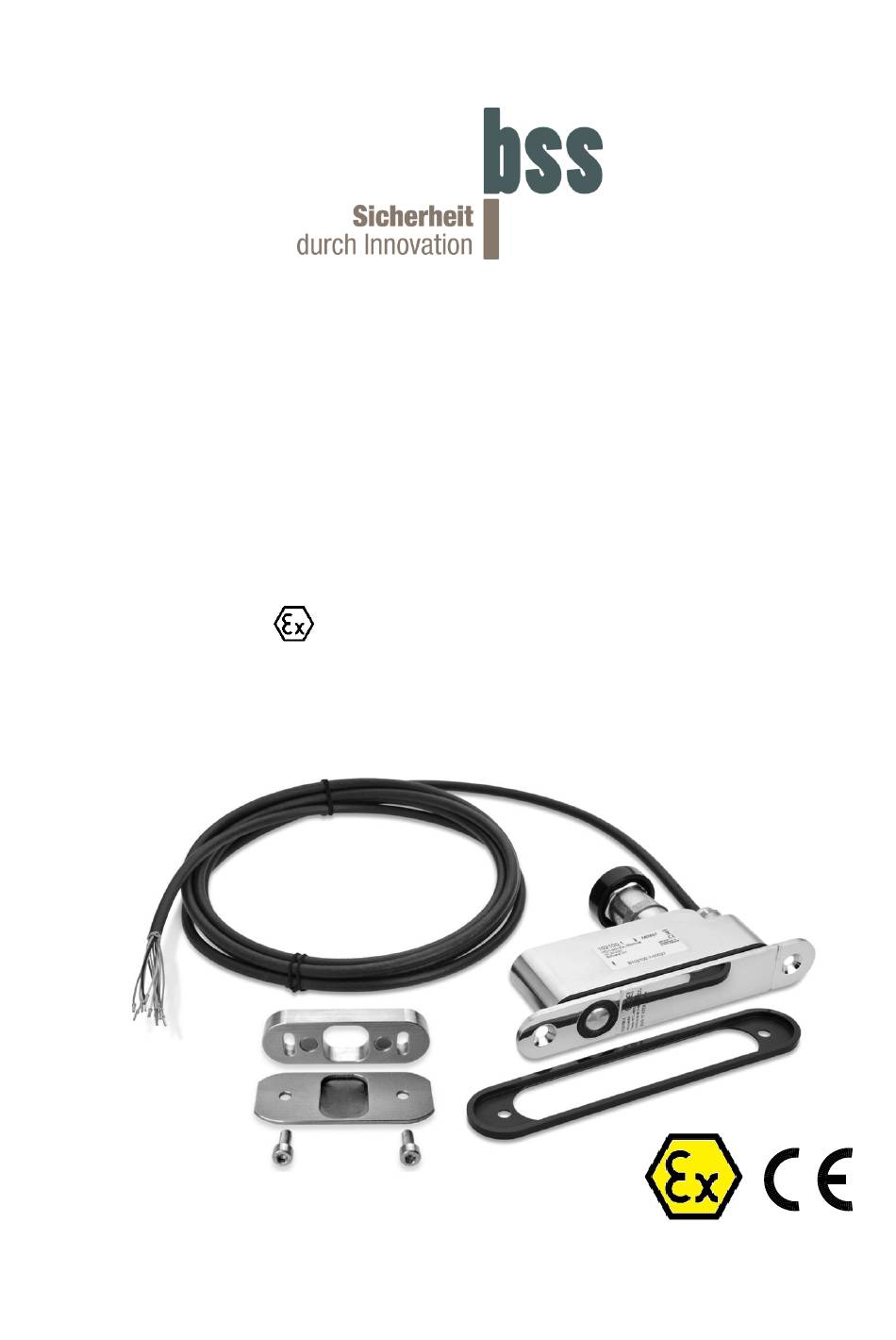

- Page 1 User Manual Electromechanical Locking Device HD-Lock Modbus Ex-Proof Ord. No. 102100.1 II 2G Ex db IIB T4 Gb Series (Modbus)
-
Page 2: Table Of Contents
Locking Device HD-Lock-Modbus Ex-Proof 102100.1 User Manual Content General ....................... 3 Characteristics of the locking device ............... 3 Scope of delivery ....................3 Installation ....................4 General installation ....................4 Door Stroke direction ....................7 Switching Point (Door-Closed/Open_) ..............8 Electrical interface .................. -
Page 3: General
Locking Device HD-Lock-Modbus Ex-Proof 102100.1 User Manual 1 General The locking device HD-Lock Ex-Proof has been designed for use in doors, hatches, garage doors and rolling gates which are operated in explosive areas. Industrial applications with high requirements as well as applications in the maritime area can be covered with this product. This device has been designed considering pressurized encapsulation according to directive 2014/34/EU. -
Page 4: Installation
Locking Device HD-Lock-Modbus Ex-Proof 102100.1 User Manual 2 Installation 2.1 General installation Important: When installing the HD-Lock Ex, measures must be taken to prevent galvanic corrosion (recommendations: Tefgel, POM Pocket, coroplast insert). Repairs to the device and interventions inside of the device are only allowed by the manufacturer. Unauthorized repairs and interventions make it difficult to assess a warranty claim and may result in the loss of warranty. - Page 5 Locking Device HD-Lock-Modbus Ex-Proof 102100.1 User Manual Figure 2 Product Drawing Figure 3 Recess for striking plate in door leaf Seite 5...
- Page 6 Locking Device HD-Lock-Modbus Ex-Proof 102100.1 User Manual When installing the striking plate (counterpart), the insulating layer must be inserted first. The insulating layer prevents against galvanic corrosion. Then the base plate and the striking plate are installed. The striking plate structure is fastened with two M5 x 20 mm DIN 912 screws. This structure is shown in Figure 4.
-
Page 7: Door Stroke Direction
Locking Device HD-Lock-Modbus Ex-Proof 102100.1 User Manual 2.2 Door Stroke direction In the delivery state, the automatic detection of the door stroke direction is active ("Direction" = "0"). The automatic detection of the door stroke direction only works after the HD Lock and the striking plate (counterpart) has been installed correctly, and after opening and closing the door once. -
Page 8: Switching Point (Door-Closed/Open_)
Locking Device HD-Lock-Modbus Ex-Proof 102100.1 User Manual 2.3 Switching Point (Door-Closed/Open_) Software The switching point of the door is set from factory. The door is detected if the door leaf with the installed striking plate is congruent to the locking device with a tolerance of ± 2-3 mm. Due to the alignment of the door leaf and door frame, a deviation of the congruence can occur. -
Page 9: Electrical Interface
Locking Device HD-Lock-Modbus Ex-Proof 102100.1 User Manual 3 Electrical interface Electrical connection is performed by a 3 m long 12-core cable with a cable cross-section of 0.14 mm². Figure 7 Connection lead Inputs and Outputs of the locking device Signal Wire color Description BOLT-EXTENDED... -
Page 10: Commissioning
Locking Device HD-Lock-Modbus Ex-Proof 102100.1 User Manual 4 Commissioning In the delivery state, after the operating voltage has been applied, the bolt is retracted. To extend the bolt, the door must be closed and the striking plate (counterpart) must be congruent to the locking device. -
Page 11: Modbus Protocol
Locking Device HD-Lock-Modbus Ex-Proof 102100.1 User Manual 6 Modbus Protocol The HD-Lock can be configured with the "Remote Terminal Unit Modbus" protocol (RTU Modbus). The following factory settings apply to this protocol. These can be changed retrospectively. Important: The maximum voltage for the serial interface is 3.3V. At higher voltage, there may be malfunction on the HD-Lock and/or the bus system. -
Page 12: Technical Data
Locking Device HD-Lock-Modbus Ex-Proof 102100.1 User Manual 7 Technical data Certifications CE / II 2G Ex db IIB T4 Gb Power Supply / operation Voltage Range 24 V DC / 10... 30 V DC Power input min. 0,5 W / max. 4,6 W Start-up current max. -
Page 13: Notes
Locking Device HD-Lock-Modbus Ex-Proof 102100.1 User Manual 9 Notes ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ Seite 13... - Page 14 Locking Device HD-Lock-Modbus Ex-Proof 102100.1 User Manual Notes: ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ ___________________________________________ Page 14...
