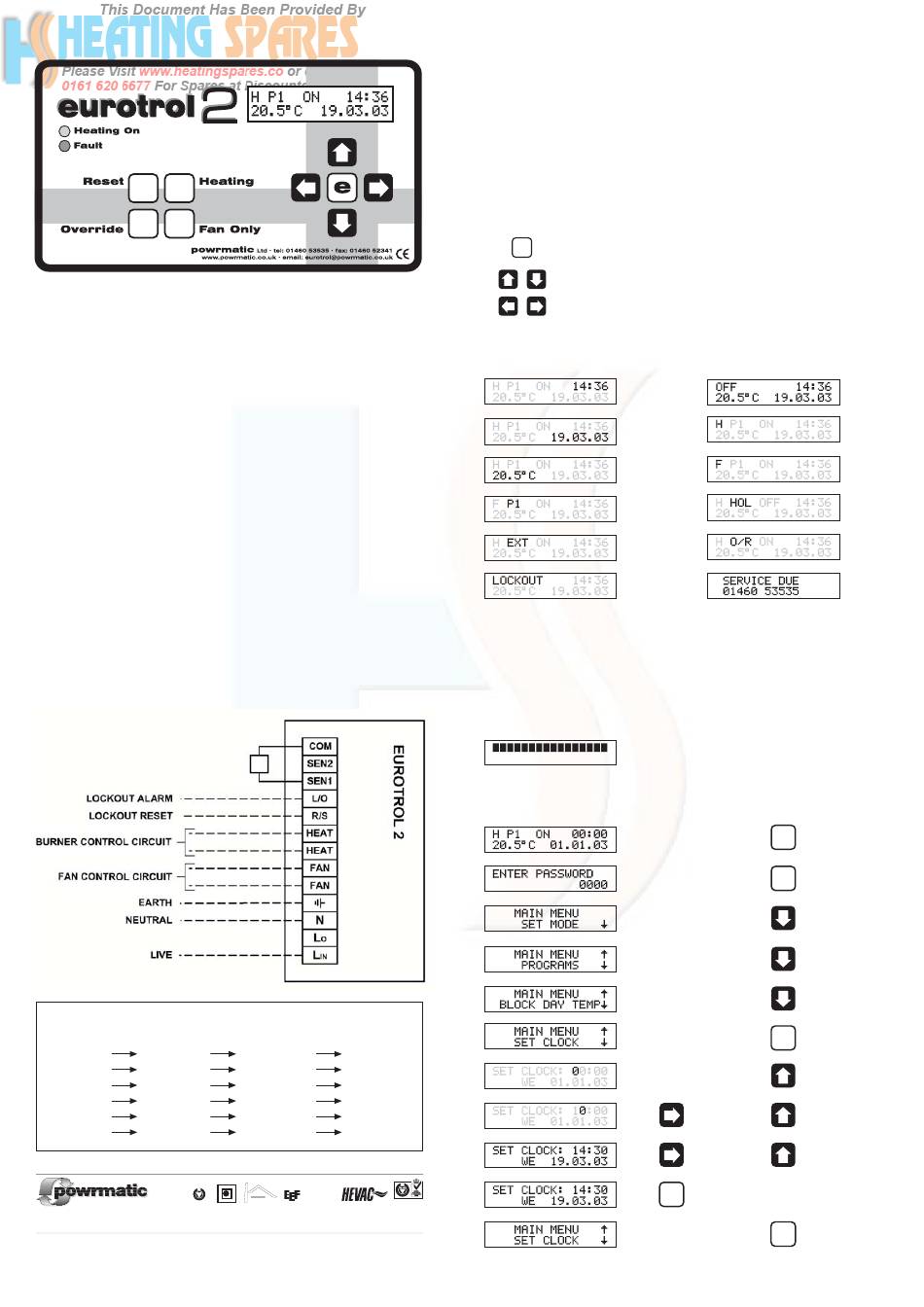

Sime Eurotrol 2 Installation And User Instructions

Installation and User Instructions
The eurotrol 2 is a high specification heating controller designed specifically
to meet the demands of modern fuel efficient heating equipment and the latest
environmental guidelines.
The eurotrol 2 uses optimum start technology as standard. This feature allows
the controller to learn the amount of energy required to raise the building
temperature to the required level when occupancy begins. The eurotrol 2 is
continually monitoring the heating systems previous performance to determine
the optimum time to turn the heating on with respect to the climatic conditions
at the time.
Optimum stop technology can also be selected which can save energy at the
end of the heating period.
Different temperatures may be selected for different times of the day to allow
for variations in working practices.
The eurotrol 2 comes preprogrammed with all data and a typical heating
schedule. All parameters can be easily adjusted after entering a password
which may be assigned by the user using the 5 button keypad. As detailed later
in this manual.
The 4 button user keypad may be locked in various combinations to allow
different levels of user accessibility.
The eurotrol 2 can give a readout of the hours the burner has operated, to help
accessing servicing intervals and after being programmed with the correct
data, can also give an indication of the running costs.
These features together with others explained in this manual make the eurotrol
2 one of the most high specification stand alone heating controllers available.
Connections
POWRMATIC CONTROLLERS EQUIVALENT TERMINAL N
EUROTROL 2 POWRTROL
FAN VENT
FAN VENT
HEAT HEAT IN
HEAT HEAT OUT
N N
L L
IN
BSI Registered Firm
BSI
FM414
Industrial and Commercial Air
Heaters; Air Moving Equipment; Flue
and Chimneys; Natural, Smoke and
Heat Ventilators; Powered Supply
and Extract Fans and Systems. FM414
Winterhay Lane · Ilminster · Somerset TA19 9PQ · Tel: 01460 53535 · Fax: 01460 256429
Web: www.powrmatic.co.uk · E mail: eurotrol@powrmatic.co.uk
EVERY EFFORT IS MADE TO ENSURE ACCURACY AT TIME OF GOING TO PRESS. HOWEVER AS PART OF OUR POLICY OF CONTINUAL PRODUCT IMPROVEMENT WE RESERVE THE RIGHT TO ALTER SPECIFICATIONS WITHOUT PRIOR NOTICE
I S S U E
Supplied By www.heating spares.co Tel. 0161 620 6677
O’S
EUROTROL ‘OLD’ POWRTROL
FAN CCT 6
FAN CCT 5
CTRL CCT 2
CTRL CCT 1
N 4
3
L
British Combustion Equipment
THE VOICE OF
BFCMA
ENGINEERING
Powrmatic are members of The British Flue
and Chimney Manufacturers' Association
Manufacturers Association
1 J u l y 2 0 0 3
User keypad (4 Buttons)
Heating
Switches the control to heating mode when in fan only mode.
Fan only mode will be reverted to on the next calendar day.
Fan Only
Switches the control to fan only mode when in heating mode.
Heating mode will be reverted to on the next calendar day.
Reset Resets the burner from lockout, (when this facility is available), and
resets the run log to zero when used in the main menu.
Pressing once will initiate or cancel the extension time. Holding
Override
down for 5 secs. will activate the ‘soft override’ (will change the
programs On or Off state until the next program step). Used as the
‘escape key’ in the programming menus.
Programming keypad (5 Buttons)
Enters data, traverses between menu screens and data screens.
e
Holding down for 5 secs. will display the run log.
Traverses between menu screens and increases or decreases the
selected values in the data screens.
Traverses through input sectors on data screens.
The main display
The main display gives extensive information of the operational state of the controller
Overview
The eurotrol 2 comes preprogrammed with a typical heating program.
After installation the minimum setup required will be to program the current time
and date.
The method of programming this is carried out in a similar manner to that of altering
any of the pre-entered data.
Power up
Programming the date and time
Note: GMT and BST will automaticaly be set and will change automatically twice each year.
BSI
Certificate No. FM1957
For the design and manufacture of
ventilation equipment
Current time
(24 hour clock)
Current date
(day.month.year)
Current room
temperature
Program No.
Extension time
active
Lockout
On initial power up a blank display followed by a partial
display will appear for up to 15 seconds before the full
display.
e
From the main screen press
From the password screen e
press
From the main menu screen
press
From the programs screen
press
From the block day temp
screen press
From the set clock screen
e
press
In the set clock data screen
press
to move to the
Press
next digit, press
to move to the
Press
next digit, press
e to enter the data and return to the set
Press
clock screen
From the set clock
Override
screen press
Off
Mode
Heating
Mode
Fan only
Mode
Holiday
Mode
Override
Service
Reminder
to enter the
password screen
to enter the main
menu
to enter the
programs screen
to enter the block
day temp screen
to enter the set
clock screen
to enter the set
clock data screen
to adjust the first
hour digit (24H)
to adjust the
second hour digit
to adjust the
selected data
to return to the
main screen
