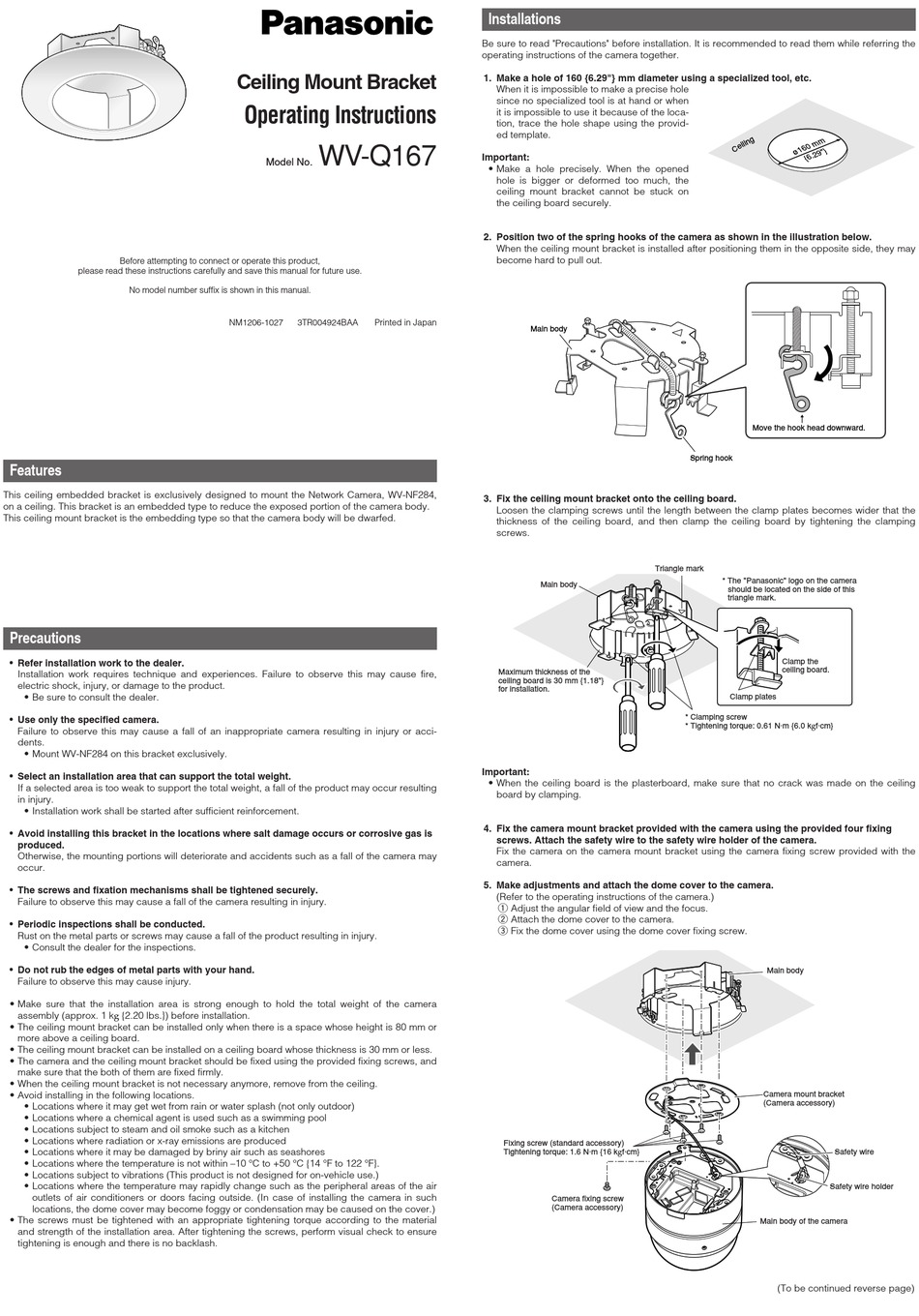

Panasonic WV-Q167 Operating Instructions

Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
No model number suffix is shown in this manual.
Features
This ceiling embedded bracket is exclusively designed to mount the Network Camera, WV-NF284,
on a ceiling. This bracket is an embedded type to reduce the exposed portion of the camera body.
This ceiling mount bracket is the embedding type so that the camera body will be dwarfed.
Precautions
• Refer installation work to the dealer.
Installation work requires technique and experiences. Failure to observe this may cause fire,
electric shock, injury, or damage to the product.
• Be sure to consult the dealer.
• Use only the specified camera.
Failure to observe this may cause a fall of an inappropriate camera resulting in injury or acci-
dents.
• Mount WV-NF284 on this bracket exclusively.
• Select an installation area that can support the total weight.
If a selected area is too weak to support the total weight, a fall of the product may occur resulting
in injury.
• Installation work shall be started after sufficient reinforcement.
• Avoid installing this bracket in the locations where salt damage occurs or corrosive gas is
produced.
Otherwise, the mounting portions will deteriorate and accidents such as a fall of the camera may
occur.
• The screws and fixation mechanisms shall be tightened securely.
Failure to observe this may cause a fall of the camera resulting in injury.
• Periodic inspections shall be conducted.
Rust on the metal parts or screws may cause a fall of the product resulting in injury.
• Consult the dealer for the inspections.
• Do not rub the edges of metal parts with your hand.
Failure to observe this may cause injury.
• Make sure that the installation area is strong enough to hold the total weight of the camera
assembly (approx. 1 kg {2.20 lbs.}) before installation.
• The ceiling mount bracket can be installed only when there is a space whose height is 80 mm or
more above a ceiling board.
• The ceiling mount bracket can be installed on a ceiling board whose thickness is 30 mm or less.
• The camera and the ceiling mount bracket should be fixed using the provided fixing screws, and
make sure that the both of them are fixed firmly.
• When the ceiling mount bracket is not necessary anymore, remove from the ceiling.
• Avoid installing in the following locations.
• Locations where it may get wet from rain or water splash (not only outdoor)
• Locations where a chemical agent is used such as a swimming pool
• Locations subject to steam and oil smoke such as a kitchen
• Locations where radiation or x-ray emissions are produced
• Locations where it may be damaged by briny air such as seashores
• Locations where the temperature is not within –10 °C to +50 °C {14 °F to 122 °F}.
• Locations subject to vibrations (This product is not designed for on-vehicle use.)
• Locations where the temperature may rapidly change such as the peripheral areas of the air
outlets of air conditioners or doors facing outside. (In case of installing the camera in such
locations, the dome cover may become foggy or condensation may be caused on the cover.)
• The screws must be tightened with an appropriate tightening torque according to the material
and strength of the installation area. After tightening the screws, perform visual check to ensure
tightening is enough and there is no backlash.
Ceiling Mount Bracket

Operating Instructions

WV-Q167
Model No.
NM1206-1027 3TR004924BAA Printed in Japan
Installations
Be sure to read "Precautions" before installation. It is recommended to read them while referring the
operating instructions of the camera together.
1. Make a hole of 160 {6.29"} mm diameter using a specialized tool, etc.
When it is impossible to make a precise hole
since no specialized tool is at hand or when
it is impossible to use it because of the loca-
tion, trace the hole shape using the provid-
ed template.
Important:
• Make a hole precisely. When the opened
hole is bigger or deformed too much, the
ceiling mount bracket cannot be stuck on
the ceiling board securely.
2. Position two of the spring hooks of the camera as shown in the illustration below.
When the ceiling mount bracket is installed after positioning them in the opposite side, they may
become hard to pull out.
Main body
3. Fix the ceiling mount bracket onto the ceiling board.
Loosen the clamping screws until the length between the clamp plates becomes wider that the
thickness of the ceiling board, and then clamp the ceiling board by tightening the clamping
screws.
Triangle mark
Main body
Maximum thickness of the
ceiling board is 30 mm {1.18"}
for installation.
Important:
• When the ceiling board is the plasterboard, make sure that no crack was made on the ceiling
board by clamping.
4. Fix the camera mount bracket provided with the camera using the provided four fixing
screws. Attach the safety wire to the safety wire holder of the camera.
Fix the camera on the camera mount bracket using the camera fixing screw provided with the
camera.
5. Make adjustments and attach the dome cover to the camera.
(Refer to the operating instructions of the camera.)
q Adjust the angular field of view and the focus.
w Attach the dome cover to the camera.
e Fix the dome cover using the dome cover fixing screw.
Fixing screw (standard accessory)
Tightening torque: 1.6 N·m {16 kgf·cm}
Camera fixing screw
(Camera accessory)
Move the hook head downward.
Spring hook
* The "Panasonic" logo on the camera
should be located on the side of this
triangle mark.
Clamp the
ceiling board.
Clamp plates
* Clamping screw
* Tightening torque: 0.61 N·m {6.0 kgf·cm}
Main body
Camera mount bracket
(Camera accessory)
Safety wire
Safety wire holder
Main body of the camera
(To be continued reverse page)
