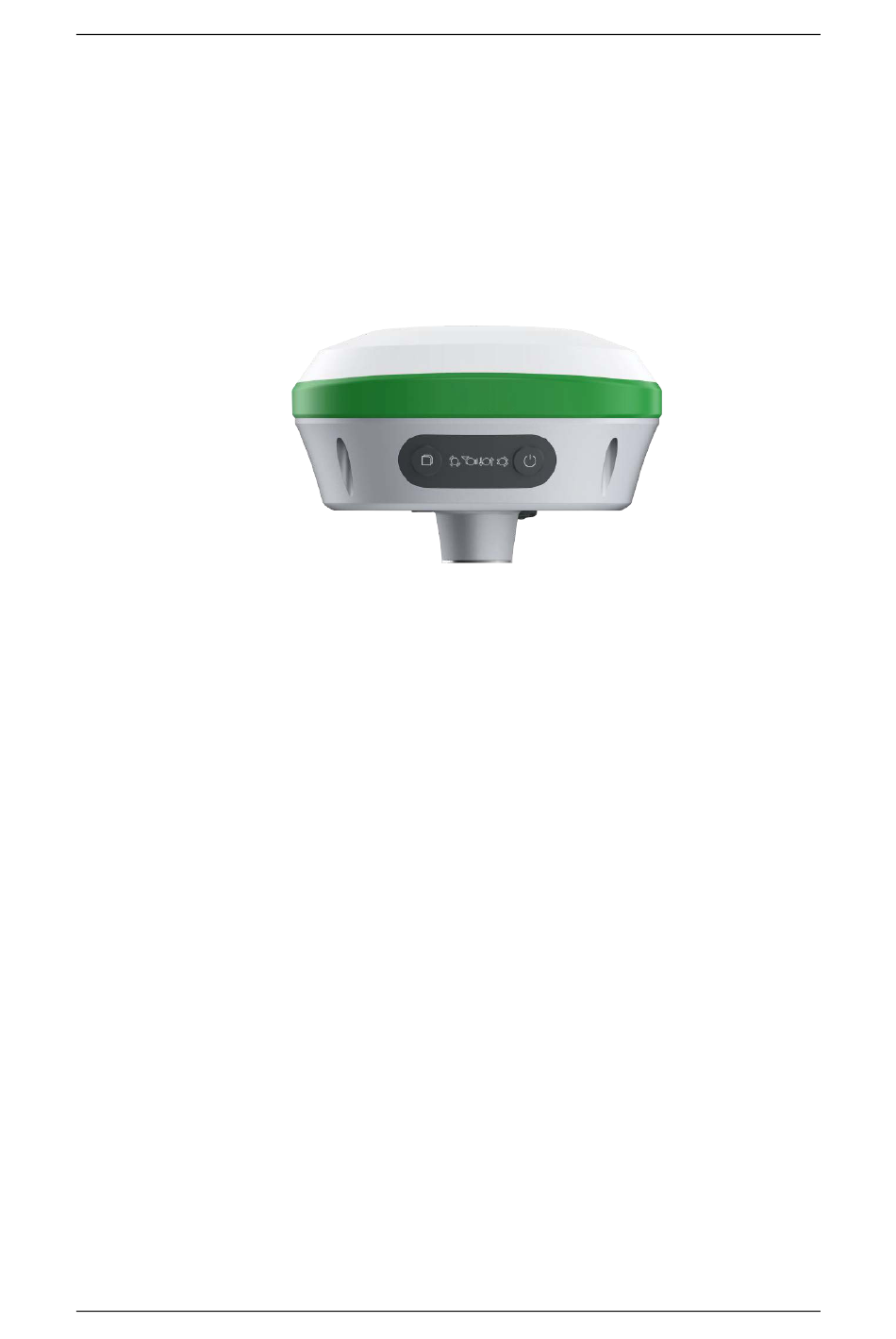

- Page 1 SMAJAYU(SHENZHEN) CO.,LTD R26-V2 Operation Guide SMAJAYU(SHENZHEN) CO.,LTD China Version 1.0 1 / 16...
-
Page 2: Table Of Contents
SMAJAYU(SHENZHEN) CO.,LTD Table of Contents 1. Abstract ....................7 2. R26 Device ....................8 2.1 Device List ..................8 2.2 Device Hardware ................8 2.3 Mainly Hardware Introduce ............9 3. Device Performance ................12 3.1 Tracking Satellite ................. 12 3.2 Positioning Accuracy .............. - Page 3 SMAJAYU(SHENZHEN) CO.,LTD Figure List Figure 1 R26-V2 ................8 Figure 2 Data Cable ................8 Figure 3 Power Adapter ............... 9 Figure 4 Radio Antenna ............... 9 Figure 5 Device Box ................9 Figure 6 R26 Main Body ..............10 Figure 7 Ports ..................
- Page 4 SMAJAYU(SHENZHEN) CO.,LTD Table List Table 1 Device List ................8 Table 2 Tracking Satellite ..............12 Table 3 Positioning Accuracy ............12 Table 4 Electrical Characteristics ............12 Table 5 System Configuration ............12 Table 6 Data Port ................13 Table 7 Physical Index ..............
- Page 5 Except for the responsibilities stated in the terms and conditions of the sale of its products, the company does not assume any other responsibilities. SMAJAYU does not make any express or implied guarantee of the sale and or use of its products, including the suitability of the product for a specific purpose, the marketability, or the infringement of any patent rights, copyrights or other intellectual property rights.
- Page 6 SMAJAYU(SHENZHEN) CO.,LTD Preface Congratulations on the purchase of your new SMAJAYU R26-V2 Device. This guide will help you to understand how SMAJAYU Device works. SMAJAYU Support: SMAJAYU(SHENZHEN) CO.,LTD will supply technical support and upgrade service for client science from the date of purchase.
-
Page 7: Abstract
SMAJAYU(SHENZHEN) CO.,LTD 1. Abstract R26-V2 is a high precision positioning device using for static data processing. research and development by SMAJAYU(SHENZHEN) CO.,LTD with features of easy operation and easy curry. This paper mainly introduces R26 device accessories, connect and operation step for static data obtain. -
Page 8: R26 Device

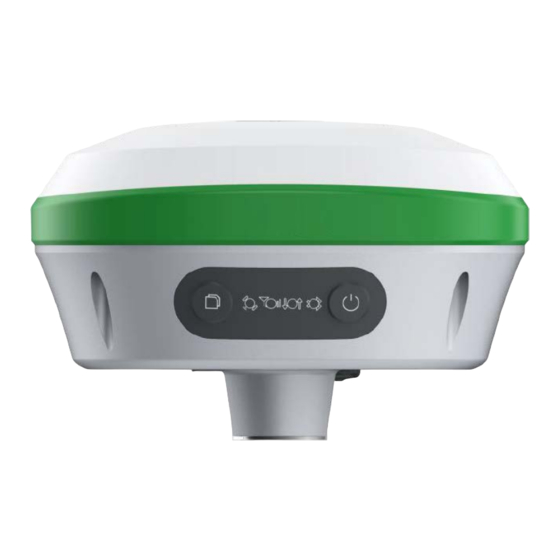

Table 1 Device List Name Quantity Note R26-V2 Data Cable Power Adapter Radio Antenna Stick Device Box 2.2 Device Hardware Ⅰ. R26-V2 Height 139mm. The maximum diameter 136mm. Figure 1 R26 Ⅱ. Data Cable Figure 2 Data Cable 8 / 16... -
Page 9: Mainly Hardware Introduce
SMAJAYU(SHENZHEN) CO.,LTD Ⅲ. Power Adapter Input: British Standard Plug. Output: DC Plug. Figure 3 Power Adapter Ⅳ. Radio Antenna Frequency: 450-470MHZ. Dimension: 280mm. Figure 4 Radio Antenna Ⅴ. Device Box Figure 5 Device Box 2.3 Mainly Hardware Introduce Ⅰ. R26 Main Body... - Page 10 SMAJAYU(SHENZHEN) CO.,LTD Figure 6 R26 Main Body Still recording button: Press and hold for 4 seconds to turn on or off the still ： recording mode. ：Recorder light: red, flashes when the static recording mode is turned on, otherwise off.
- Page 11 SMAJAYU(SHENZHEN) CO.,LTD Figure 8 Bottom Fixed Thread: Five-eighth inch thread. Ⅱ. Data Cable Figure 9 Data Cable POW/COM plug which connects to R26-V2. DC power supply plug. DB9 data configuration plug. USBD raw data export and save plug. 11 / 16...
-
Page 12: Device Performance
SMAJAYU(SHENZHEN) CO.,LTD 3. Device Performance 3.1 Tracking Satellite Table 2 Tracking Satellite BDS B1I/B2I/B3I/B1C/B2a /B2b* GPS L1C/A/L2P（Y）/L2C /L5 Tracking GLONASS G 1/G 2/G3 Characteristics Galileo E1/E5a/E5b /E6* QZSS L1, L2, L5 Data Update default 1Hz, the highest 20Hz Frequency 3.2 Positioning Accuracy Table 3 Positioning Accuracy Flat: ±（8 + 1.0 ×... -
Page 13: Data Port
SMAJAYU(SHENZHEN) CO.,LTD 3.5 Data Port Table 6 Data Port 1 Nine-pin Aviation Direct charging, data transmission. (power supply + Plug double RS232) 1 RADIO TNC Plug Use for Radio Antenna Connect. 3.6 Physical Index Table 7 Physical Index Dimension 140mm×141mm×88mm Weight 1.03 KG... -
Page 14: Device Operation
SMAJAYU(SHENZHEN) CO.,LTD 4. Device Operation This chapter mainly introduces how to charge the device, data obtain and data export. 4.1 Charge Hardware connect show as figure 10. Figure 10 Hardware Connect for Charge Note: POW indicator light flashes during charging and keep bright when finishing charge. - Page 15 SMAJAYU(SHENZHEN) CO.,LTD Figure 11 Data Export Find identify USB from the computer when finish hardware connected. (Figure 12) Figure 12 USB Identify 15 / 16...
- Page 16 SMAJAYU(SHENZHEN) CO.,LTD Figure 13 Data Doc Show as Figure 13, those three documents are the raw data when automatic record. Data automatic record when changing to A5 mode. 16 / 16...
