PLEASE SAVE THIS OWNER'S MANUAL AND READ BEFORE
EACH USE. This manual will explain how to use the unit safely
and effectively. Please read and follow these instructions and
precautions carefully.
MODEL:
SL1327

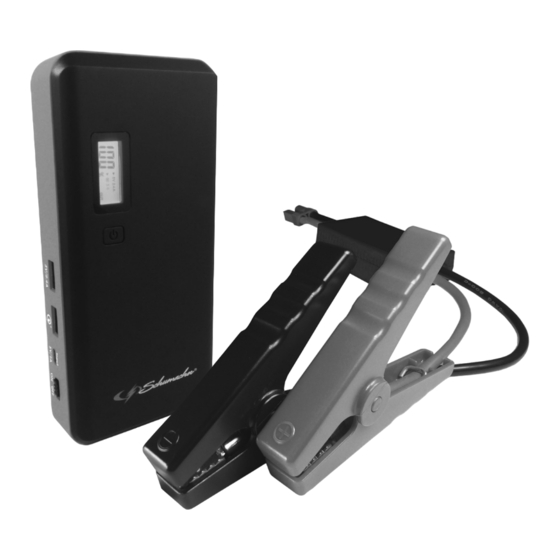

Jump Starter
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SL1327 and is the answer not in the manual?

Questions and answers

Summary of Contents for Schumacher Electric SL1327

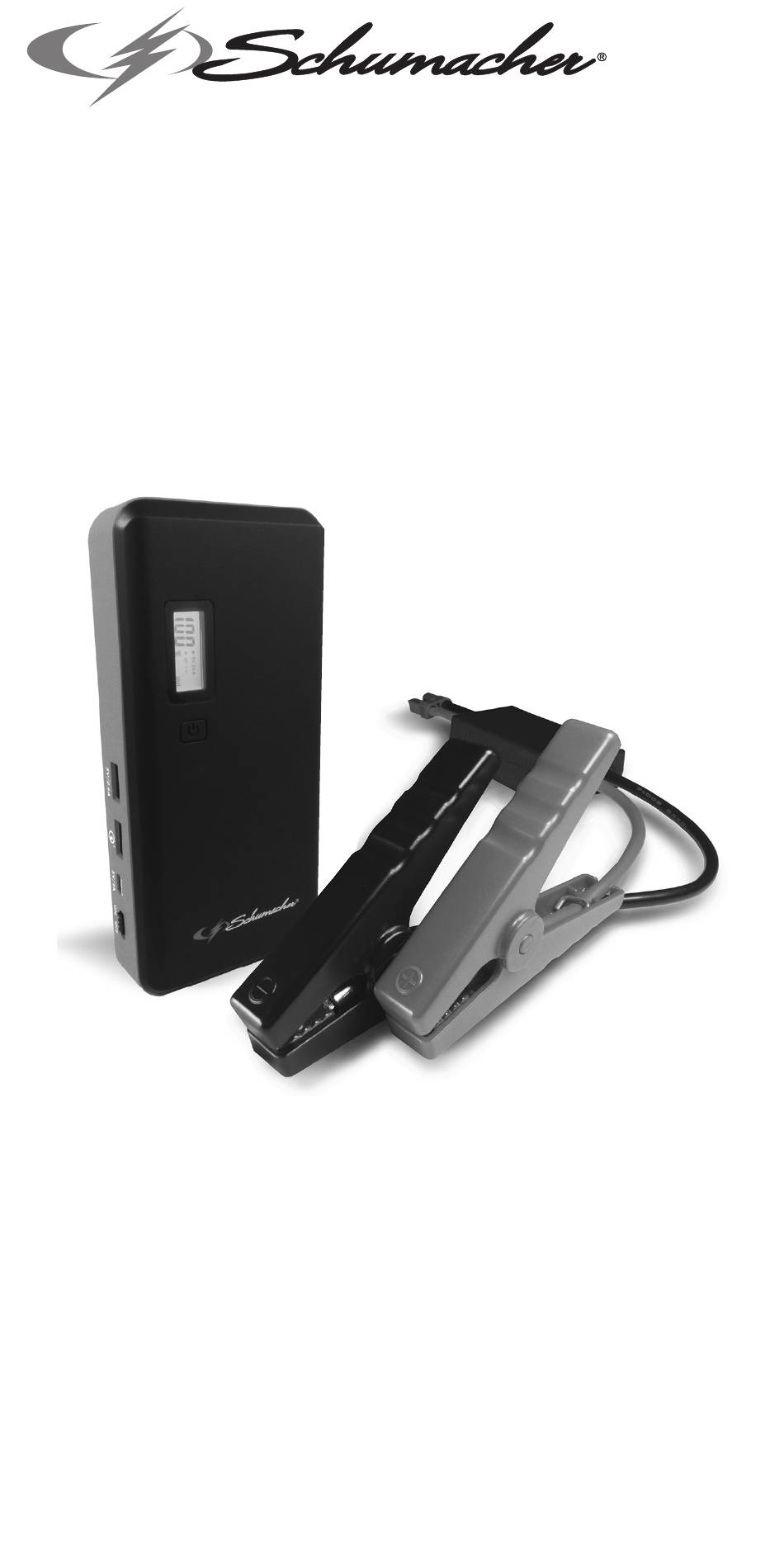

  • Page 1 MODEL: SL1327 Jump Starter OWNER’S MANUAL PLEASE SAVE THIS OWNER’S MANUAL AND READ BEFORE EACH USE. This manual will explain how to use the unit safely and effectively. Please read and follow these instructions and precautions carefully.
  • Page 2: Table Of Contents

    CONTENTS IMPORTANT SAFETY INSTRUCTIONS PERSONAL PRECAUTIONS PREPARING TO USE THE UNIT FOLLOW THESE STEPS WHEN CONNECTING TO A BATTERY FEATURES CHARGING THE JUMP STARTER OPERATING INSTRUCTIONS MAINTENANCE INSTRUCTIONS STORAGE INSTRUCTIONS TROUBLESHOOTING BEFORE RETURNING FOR REPAIRS SPECIFICATIONS REPLACEMENT PARTS...
  • Page 3: Important Safety Instructions

    1.5 Use only recommended attachments (Schumacher SA861 jump cable). Use of an attachment not recommended or sold by Schumacher Electric Corporation for the SL1327 may result in a risk ® of fire, electric shock or injury to persons or damage to property.
  • Page 4: Personal Precautions

    2. PERSONAL PRECAUTIONS WARNING! RISK OF EXPLOSIVE GASES. A SPARK NEAR THE BATTERY MAY CAUSE A BATTERY EXPLOSION. TO REDUCE THE RISK OF A SPARK NEAR THE BATTERY: 2.1 NEVER smoke or allow a spark or flame in the vicinity of a battery or engine. 2.2 Remove personal metal items such as rings, bracelets, necklaces and watches when working with a lead-acid battery.
  • Page 5: Preparing To Use The Unit

    3. PREPARING TO USE THE UNIT WARNING! RISK OF CONTACT WITH BATTERY ACID. BATTERY ACID IS A HIGHLY CORROSIVE SULFURIC ACID. 3.1 Make sure the area around the battery is well ventilated while the unit is in use. 3.2 Clean the battery terminals before using the jump starter. During cleaning, keep airborne corrosion from coming into contact with your eyes, nose and mouth.
  • Page 6: Features

    5. FEATURES 1. Control button on smart cable 6. 2.4A USB output port 2. SA861 smart cable/ Display button battery clamps 8. LCD display 3. ON/OFF switch 9. Jump start output socket 4. Micro USB input port 10. LED light for recharging Not shown: 5.
  • Page 7: Operating Instructions

    3. The LCD display will light, the digit begins to flash and show “IN”, indicating that charging has begun. 4. The jump starter will fully charge in 4-5 hours. When the unit is fully charged, the display will show “100%”. 5.
  • Page 8 7.2 CHARGING A MOBILE DEVICE, USING THE USB PORTS The SL1327 includes two USB ports. One provides up to 2.4A at 5V DC; the other is Quick Charge 3.0, which provides up to 5V at 3A, 9V at 2A or 12V at 1.5A.
  • Page 9: Maintenance Instructions

    8. MAINTENANCE INSTRUCTIONS 1. After use and before performing maintenance, unplug and disconnect the unit. 2. Use a dry cloth to wipe all battery corrosion and other dirt or oil from the battery clamps, cords, and the outer case. 3. Do not open the unit, as there are no user-serviceable parts. 9.
  • Page 10: Specifications

    Smart Cable LED Behavior Green LED lit solid Ready to jump start Green LED flashes three times Reverse charging protection Red LED flashes once Reverse polarity protection Red LED flashes twice Short circuit protection Red LED flashes four times Low voltage protection Red LED flashes five times High temperature protection Red LED lit solid...
