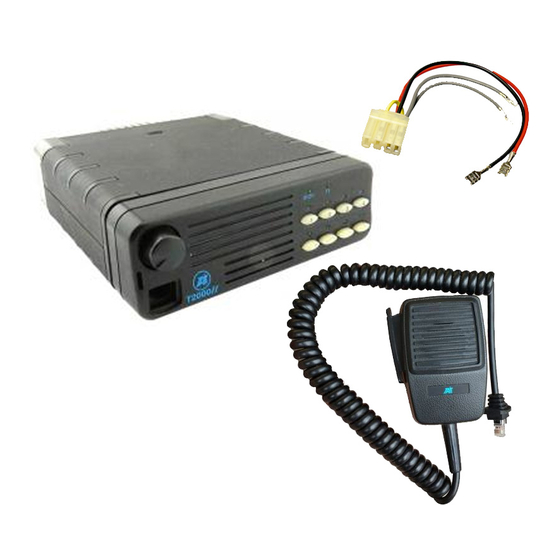

Tait T2000 Information Pack

IPN 403-01210-04 PCB Information Pack
Parts List 225-01210-04 Hands Free
Ref IPN Description
C1 020-57470-10 CAP ELCT AI RDL 4U7 50V LO ESR
C2 015-25220-08 CAP CER 0805 22N 10% X7R 50V
C3 015-24470-08 CAP CER 0805 4N7 10% X7R 50V
C4 020-08470-45 CAP ELE RA 47M16V 6.3*6.5 5LS
C5 015-25150-08 CAP CER 0805 15N 10% X7R 50V
C6 015-25150-08 CAP CER 0805 15N 10% X7R 50V
C7 015-23150-01 CAP CER 0805 150P 5% NPO 50V
C8 015-25150-08 CAP CER 0805 15N 10% X7R 50V
C9 015-25150-08 CAP CER 0805 15N 10% X7R 50V
C10 015-23150-01 CAP CER 0805 150P 5% NPO 50V
C11 015-23680-08 CAP CER 0805 680P 10% X7R 50V
C12 015-06100-08 CAP CER 1206 100N 10% X7R 50V
C13 015-06100-08 CAP CER 1206 100N 10% X7R 50V
C14 015-21470-02 CAP 0805 4P7 1% NPO 50V
C15 015-06100-08 CAP CER 1206 100N 10% X7R 50V
C16 020-08470-45 CAP ELE RA 47M16V 6.3*6.5 5LS
C17 020-08470-45 CAP ELE RA 47M16V 6.3*6.5 5LS
C18 015-06100-08 CAP CER 1206 100N 10% X7R 50V
C19 015-06100-08 CAP CER 1206 100N 10% X7R 50V
C20 015-06100-08 CAP CER 1206 100N 10% X7R 50V
C21 020-57470-10 CAP ELCT AI RDL 4U7 50V LO ESR
C22 015-06100-08 CAP CER 1206 100N 10% X7R 50V
C23 020-08470-45 CAP ELE RA 47M16V 6.3*6.5 5LS
C24 015-23150-01 CAP CER 0805 150P 5% NPO 50V
C25 015-25150-08 CAP CER 0805 15N 10% X7R 50V
C26 015-25150-08 CAP CER 0805 15N 10% X7R 50V
C27 015-06100-08 CAP CER 1206 100N 10% X7R 50V
C28 020-09100-07 CAP ELECT 100M 10V 6.3*7MM
C29 015-06100-08 CAP CER 1206 100N 10% X7R 50V
C30 020-57470-10 CAP ELCT AI RDL 4U7 50V LO ESR
C31 020-58100-04 CAP ELE AI RDL 10M 16V 4X7MM
C32 015-06100-08 CAP CER 1206 100N 10% X7R 50V
C33 015-25150-08 CAP CER 0805 15N 10% X7R 50V
C34 015-23150-01 CAP CER 0805 150P 5% NPO 50V
C35 015-25150-08 CAP CER 0805 15N 10% X7R 50V
C36 015-06100-08 CAP CER 1206 100N 10% X7R 50V
C37 015-06100-08 CAP CER 1206 100N 10% X7R 50V
C38 020-57470-10 CAP ELCT AI RDL 4U7 50V LO ESR
C39 015-23150-01 CAP CER 0805 150P 5% NPO 50V
C40 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C41 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C42 015-23150-01 CAP CER 0805 150P 5% NPO 50V
C43 020-57470-10 CAP ELCT AI RDL 4U7 50V LO ESR
C44 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C45 015-25150-08 CAP CER 0805 15N 10% X7R 50V
C46 015-25150-08 CAP CER 0805 15N 10% X7R 50V
C47 015-06100-08 CAP CER 1206 100N 10% X7R 50V
C48 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C49 015-23150-01 CAP CER 0805 150P 5% NPO 50V
C50 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C51 015-27100-10 CAP CER 0805 1M+80-20% Y5V 16V
C52 015-23150-01 CAP CER 0805 150P 5% NPO 50V
C53 015-23150-01 CAP CER 0805 150P 5% NPO 50V
C54 015-23150-01 CAP CER 0805 150P 5% NPO 50V
C55 015-23150-01 CAP CER 0805 150P 5% NPO 50V
C56 015-23150-01 CAP CER 0805 150P 5% NPO 50V
C57 015-23150-01 CAP CER 0805 150P 5% NPO 50V
C58 015-23150-01 CAP CER 0805 150P 5% NPO 50V
C59 015-23150-01 CAP CER 0805 150P 5% NPO 50V
C60 015-23150-01 CAP CER 0805 150P 5% NPO 50V
C61 020-57470-10 CAP ELCT AI RDL 4U7 50V LO ESR
C62 015-23150-01 CAP CER 0805 150P 5% NPO 50V
C63 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C64 015-06100-08 CAP CER 1206 100N 10% X7R 50V
C65 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C66 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C67 015-24100-08 CAP CER 0805 1N 10% X7R 50V
C2A 015-25100-08 CAP CER 0805 10N 10% X7R 50V
C40A 015-23150-01 CAP CER 0805 150P 5% NPO 50V
C41A 015-23150-01 CAP CER 0805 150P 5% NPO 50V
D1 001-10000-99 DIODE SMD BAV99 D-SW SOT23
D2 001-10000-99 DIODE SMD BAV99 D-SW SOT23
D3 001-10000-99 DIODE SMD BAV99 D-SW SOT23
D4 001-10084-51 DIODE ZENSMD BZX84C5V1 SOT23
D5 001-10000-99 DIODE SMD BAV99 D-SW SOT23
D6 001-10000-99 DIODE SMD BAV99 D-SW SOT23
D7 001-10084-36 DIODE ZENSMD BZX84C3V6 SOT23
D8 001-10000-99 DIODE SMD BAV99 D-SW SOT23
IC1 002-10003-24 IC SMD 324 4X O-AMP SO14
IC2 002-10040-53 IC 4053B SMD BREAK B4 MAKE
IC3 002-10003-24 IC SMD 324 4X O-AMP SO14
IC4 002-10003-24 IC SMD 324 4X O-AMP SO14
IC5 002-74900-00 IC SMD 74HC00 4X 2 I/P NAND
IC6 002-10078-08 IC SMD 78L08 8V REG SO8
IC7 002-10003-24 IC SMD 324 4X O-AMP SO14
IC8 002-00014-62 IC 317L 100MA REG 3TER TO92
Parts List
Ref IPN Description
P13 240-00026-26 CONN PADLE BRD 12 W M-MATCH
P13A 240-00020-51 PLUG 12 W 2*6 FLAT CABLE TERMN
Q1 000-10008-47 XSTR BC847B NPN SOT23
Q2 000-10008-47 XSTR BC847B NPN SOT23
Q3 000-10008-57 XSTR SMD BC857 PNP SOT23 SS
Q4 000-10008-47 XSTR BC847B NPN SOT23
Q5 000-10008-47 XSTR BC847B NPN SOT23
Q6 000-10008-47 XSTR BC847B NPN SOT23
Q7 000-10008-57 XSTR SMD BC857 PNP SOT23 SS
Q8 000-10008-57 XSTR SMD BC857 PNP SOT23 SS
Q9 000-10008-47 XSTR BC847B NPN SOT23
Q10 000-10008-57 XSTR SMD BC857 PNP SOT23 SS
Q11 000-10008-47 XSTR BC847B NPN SOT23
Q12 000-10008-47 XSTR BC847B NPN SOT23
Q13 000-10008-57 XSTR SMD BC857 PNP SOT23 SS
Q14 000-10008-47 XSTR BC847B NPN SOT23
R1 036-14470-10 RES M/F 0805 4K7 1%
R2 036-14270-10 RES M/F 0805 2K7 1%
R3 036-14100-10 RES M/F 0805 1K 1%
R4 036-14680-10 RES M/F 0805 6K8 1%
R5 036-14270-10 RES M/F 0805 2K7 1%
R6 036-15100-10 RES M/F 0805 10K 1%
R7 036-13220-10 RES M/F 0805 220E 1%
R8 036-14220-00 RES M/F 0805 2K2 5%
R9 036-15390-10 RES M/F 0805 39K 1%
R10 036-15330-10 RES M/F 0805 33K 1%
R11 036-15470-10 RES M/F 0805 47K 1%
R13 036-15100-10 RES M/F 0805 10K 1%
R14 036-15820-00 RES M/F 0805 82K 5%
R15 036-15150-10 RES M/F 0805 15K 1%
R16 036-14100-10 RES M/F 0805 1K 1%
R17 036-16100-10 RES M/F 0805 100K 1%
R18 036-15100-10 RES M/F 0805 10K 1%
R19 036-15100-10 RES M/F 0805 10K 1%
R20 036-12100-10 RES M/F 0805 10E 1%
R21 036-15100-10 RES M/F 0805 10K 1%
R22 036-16100-10 RES M/F 0805 100K 1%
R23 036-15100-10 RES M/F 0805 10K 1%
R24 036-15470-10 RES M/F 0805 47K 1%
R25 036-15220-00 RES M/F 0805 22K 5%
R26 036-17100-10 RES M/F 0805 1M 1%
R27 036-17100-10 RES M/F 0805 1M 1%
R28 036-17100-10 RES M/F 0805 1M 1%
R29 036-15100-10 RES M/F 0805 10K 1%
R30 036-14180-00 RES M/F 0805 1K8 5%
R31 036-17100-10 RES M/F 0805 1M 1%
R32 036-15100-10 RES M/F 0805 10K 1%
R33 036-14270-10 RES M/F 0805 2K7 1%
R34 036-14470-10 RES M/F 0805 4K7 1%
R35 036-10000-00 RES M/F 0805 ZERO OHM
R36 036-16150-00 RES M/F 0805 150K 5%
R37 036-14100-10 RES M/F 0805 1K 1%
R38 036-16100-10 RES M/F 0805 100K 1%
R39 036-16220-00 RES M/F 0805 220K 5%
R40 036-17100-10 RES M/F 0805 1M 1%
R41 036-14100-10 RES M/F 0805 1K 1%
R42 036-15100-10 RES M/F 0805 10K 1%
R43 036-16100-10 RES M/F 0805 100K 1%
R44 036-15470-10 RES M/F 0805 47K 1%
R45 036-14100-10 RES M/F 0805 1K 1%
R46 036-13470-00 RES M/F 0805 470E 5%
R47 036-15220-00 RES M/F 0805 22K 5%
R48 036-16150-00 RES M/F 0805 150K 5%
R49 036-15180-10 RES M/F 0805 18K 1%
R50 036-15100-10 RES M/F 0805 10K 1%
R51 036-16150-00 RES M/F 0805 150K 5%
R52 036-15470-10 RES M/F 0805 47K 1%
R53 036-15100-10 RES M/F 0805 10K 1%
R54 036-17100-10 RES M/F 0805 1M 1%
R55 036-15100-10 RES M/F 0805 10K 1%
R56 036-15100-10 RES M/F 0805 10K 1%
R57 036-15820-00 RES M/F 0805 82K 5%
R58 036-15100-10 RES M/F 0805 10K 1%
R59 036-16100-10 RES M/F 0805 100K 1%
R60 036-15100-10 RES M/F 0805 10K 1%
R61 036-15100-10 RES M/F 0805 10K 1%
R62 036-16330-00 RES M/F 0805 330K 5%
R63 036-16100-10 RES M/F 0805 100K 1%
R64 036-14100-10 RES M/F 0805 1K 1%
R65 036-14100-10 RES M/F 0805 1K 1%
R66 036-15100-10 RES M/F 0805 10K 1%
R67 036-15470-10 RES M/F 0805 47K 1%
R68 036-14120-00 RES M/F 0805 1K2 5%
R69 036-16470-00 RES M/F 0805 470K 5%
R70 036-15100-10 RES M/F 0805 10K 1%
Tait T2000 PCB Information Pack
Parts List
Ref IPN Description
R71 036-15100-10 RES M/F 0805 10K 1%
R72 036-15100-10 RES M/F 0805 10K 1%
R73 036-14470-10 RES M/F 0805 4K7 1%
R74 036-15470-10 RES M/F 0805 47K 1%
R75 036-15470-10 RES M/F 0805 47K 1%
R76 036-16220-00 RES M/F 0805 220K 5%
R77 036-10000-00 RES M/F 0805 ZERO OHM
R78 036-14470-10 RES M/F 0805 4K7 1%
R79 036-10000-00 RES M/F 0805 ZERO OHM
R80 036-15470-10 RES M/F 0805 47K 1%
R81 036-14100-10 RES M/F 0805 1K 1%
R82 036-15100-10 RES M/F 0805 10K 1%
R83 036-14470-10 RES M/F 0805 4K7 1%
R84 036-15220-00 RES M/F 0805 22K 5%
R85 036-15220-00 RES M/F 0805 22K 5%
R86 036-14270-10 RES M/F 0805 2K7 1%
R87 036-15220-00 RES M/F 0805 22K 5%
R88 036-15100-10 RES M/F 0805 10K 1%
R89 036-15220-00 RES M/F 0805 22K 5%
R90 036-15120-00 RES M/F 0805 12K 5%
R91 036-15100-10 RES M/F 0805 10K 1%
R92 036-15100-10 RES M/F 0805 10K 1%
R93 036-15100-10 RES M/F 0805 10K 1%
R94 036-16100-10 RES M/F 0805 100K 1%
R95 036-15100-10 RES M/F 0805 10K 1%
R96 036-15100-10 RES M/F 0805 10K 1%
R97 036-16330-00 RES M/F 0805 330K 5%
R98 036-15100-10 RES M/F 0805 10K 1%
R99 036-16100-10 RES M/F 0805 100K 1%
R100 036-15100-10 RES M/F 0805 10K 1%
R101 036-15100-10 RES M/F 0805 10K 1%
R102 036-16330-00 RES M/F 0805 330K 5%
R103 036-16100-10 RES M/F 0805 100K 1%
R104 036-14100-10 RES M/F 0805 1K 1%
R105 036-15470-10 RES M/F 0805 47K 1%
R106 036-15470-10 RES M/F 0805 47K 1%
R107 036-13100-10 RES M/F 0805 100E 1%
R108 036-13100-10 RES M/F 0805 100E 1%
R109 036-15100-10 RES M/F 0805 10K 1%
R110 036-13560-10 RES M/F 0805 560E 1%
R111 036-14470-10 RES M/F 0805 4K7 1%
R112 036-14100-10 RES M/F 0805 1K 1%
R113 036-15470-10 RES M/F 0805 47K 1%
R114 036-15180-10 RES M/F 0805 18K 1%
R115 036-14100-10 RES M/F 0805 1K 1%
R116 036-17100-10 RES M/F 0805 1M 1%
R117 036-15100-10 RES M/F 0805 10K 1%
R118 036-16330-00 RES M/F 0805 330K 5%
R119 036-14100-10 RES M/F 0805 1K 1%
R120 036-15470-10 RES M/F 0805 47K 1%
R121 036-14680-10 RES M/F 0805 6K8 1%
R122 036-14680-10 RES M/F 0805 6K8 1%
R123 036-15220-00 RES M/F 0805 22K 5%
R124 036-16470-00 RES M/F 0805 470K 5%
R125 036-16220-00 RES M/F 0805 220K 5%
R126 036-14100-10 RES M/F 0805 1K 1%
R127 036-15100-10 RES M/F 0805 10K 1%
R128 036-12100-10 RES M/F 0805 10E 1%
R129 036-14100-10 RES M/F 0805 1K 1%
R131 036-15100-10 RES M/F 0805 10K 1%
R132 036-16100-10 RES M/F 0805 100K 1%
R133 036-15100-10 RES M/F 0805 10K 1%
R134 036-16100-10 RES M/F 0805 100K 1%
R135 036-16100-10 RES M/F 0805 100K 1%
R136 036-16820-10 RES M/F 0805 820K 1%
R70A 036-18100-00 RES M/F 0805 10M 5%
R83A 036-15470-10 RES M/F 0805 47K 1%
RV67 042-05100-06 RES PRE 10K CARBON 6MM FLAT
S1 240-10000-06 CONN SMD SKT 12W 2R M-MATCH
S5 240-10000-07 CONN SMD SKT 16W 2R M-MATCH
31 October 2001 Copyright Tait Electronics Limited
PCB Information Pack IPN 403-01210-04
Hands Free Parts List 225-01210-04
PCB
Information
Pack
Tait T2000
PCB Layout – Hands Free
Parts List 225-01210-04
IPN 403-01210-04
Parts List Amendments
This document can be printed on
A3 as single-sided, double-
sided, unfolded or z-folded.
Parts List
